BDM FRAME with adapter for BDM100+CMD+FGTECH position frame boot mode chip tuning
✓ High reliability and long service life
✓ Easy handling and user-friendliness
✓ Fast and competent customer service
✓ 12 months warranty
BDM FRAME with adapter for BDM100+CMD+FGTECH position frame boot mode chip tuning is backordered and will ship as soon as it is back in stock.
BDM FRAME with adapter for BDM100+CMD+FGTECH position frame boot mo...
Description
Description

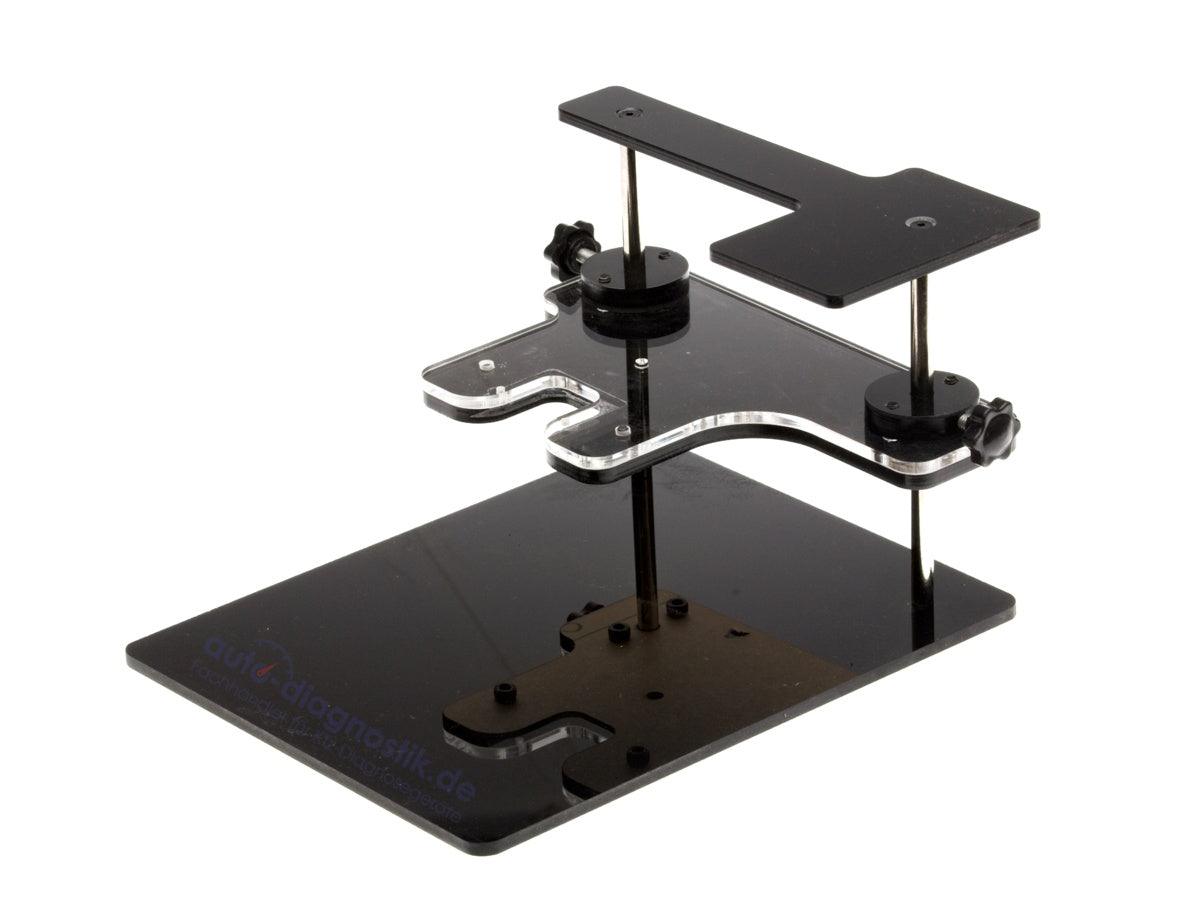

BDM Frame for engine control units – Simplified work without soldering
The BDM Frame enables easy diagnostics and work on engine control units (ECUs) without the need for soldering. Thanks to the four included probes, you can conveniently and efficiently connect ECUs from Siemens, Bosch, Delphi , and Marelli . Please note that the probes must be mounted or soldered by the buyer before use.

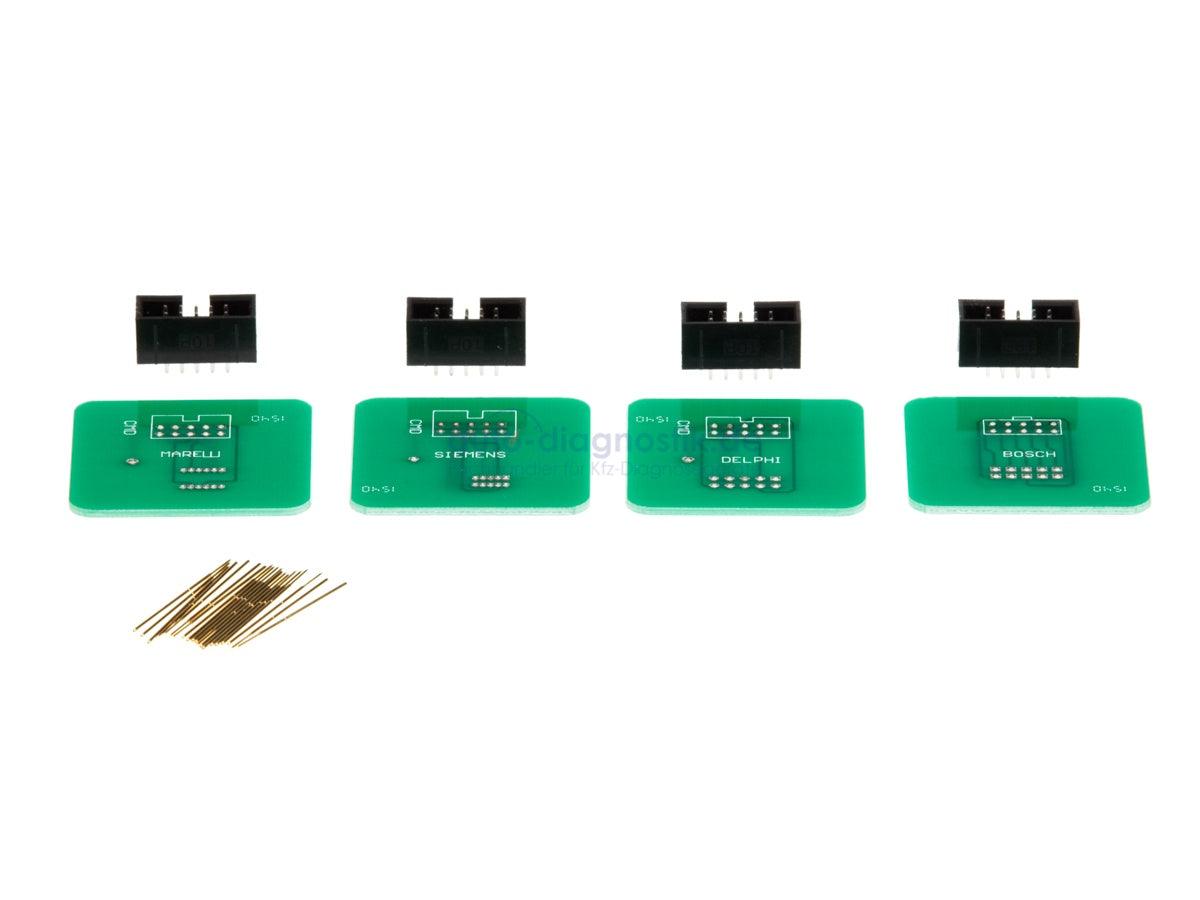

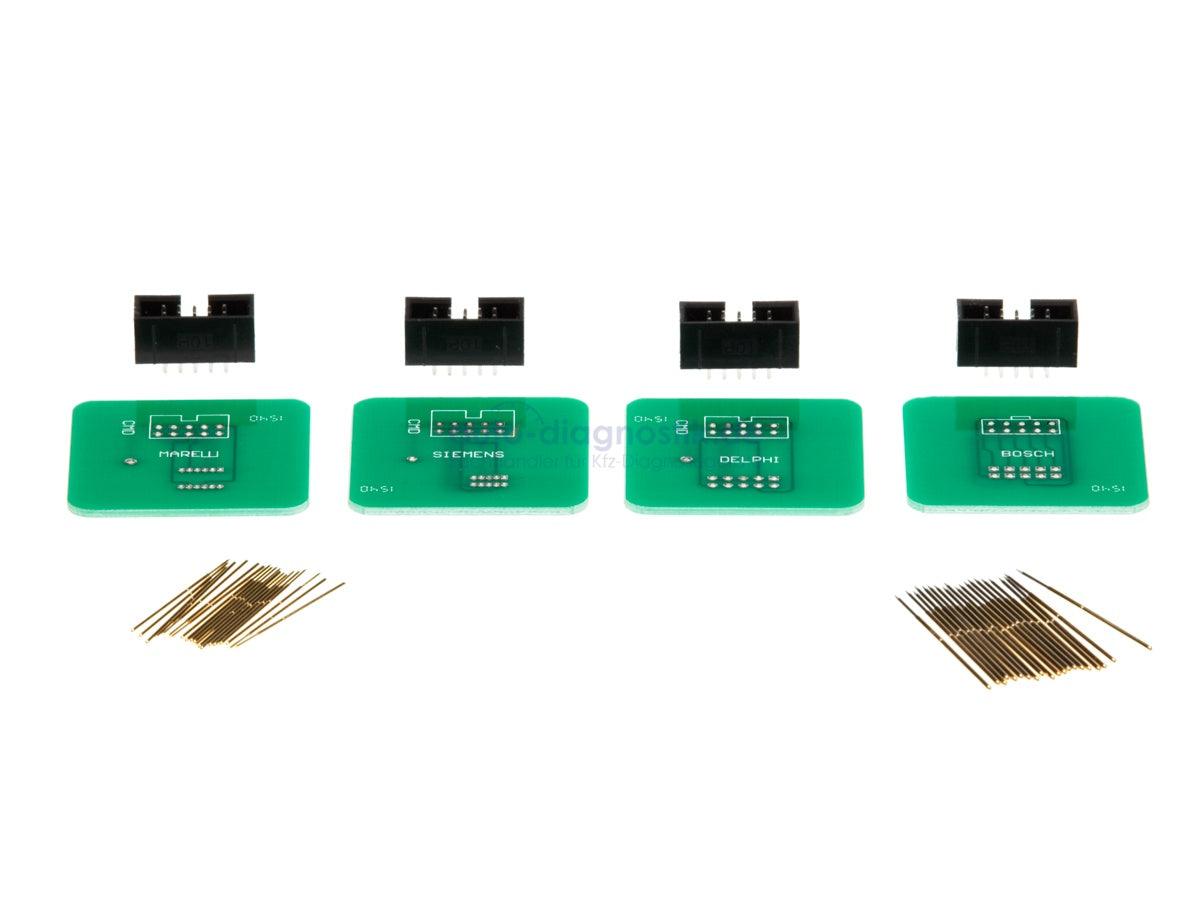

Scope of delivery:
- BDM Frame BDM100

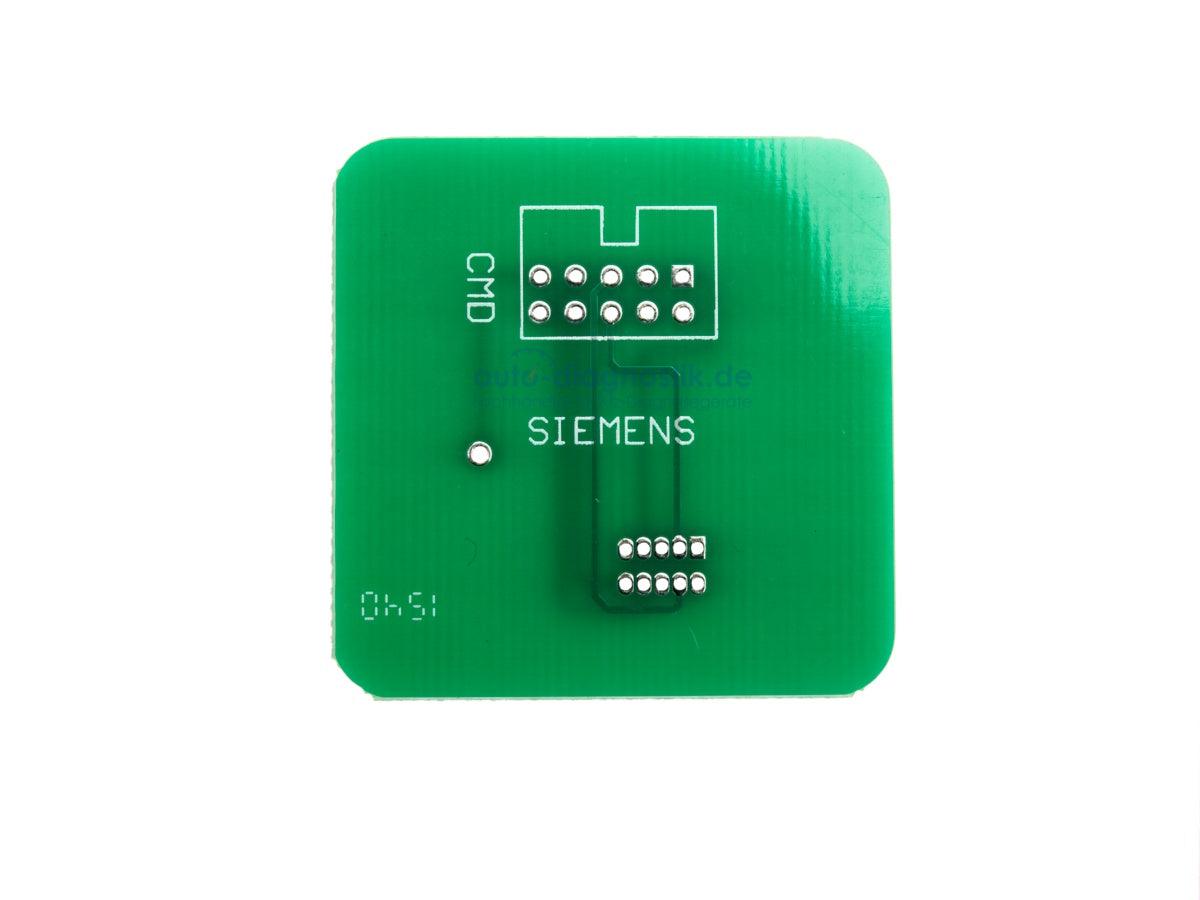

- Probe for Siemens engine control units

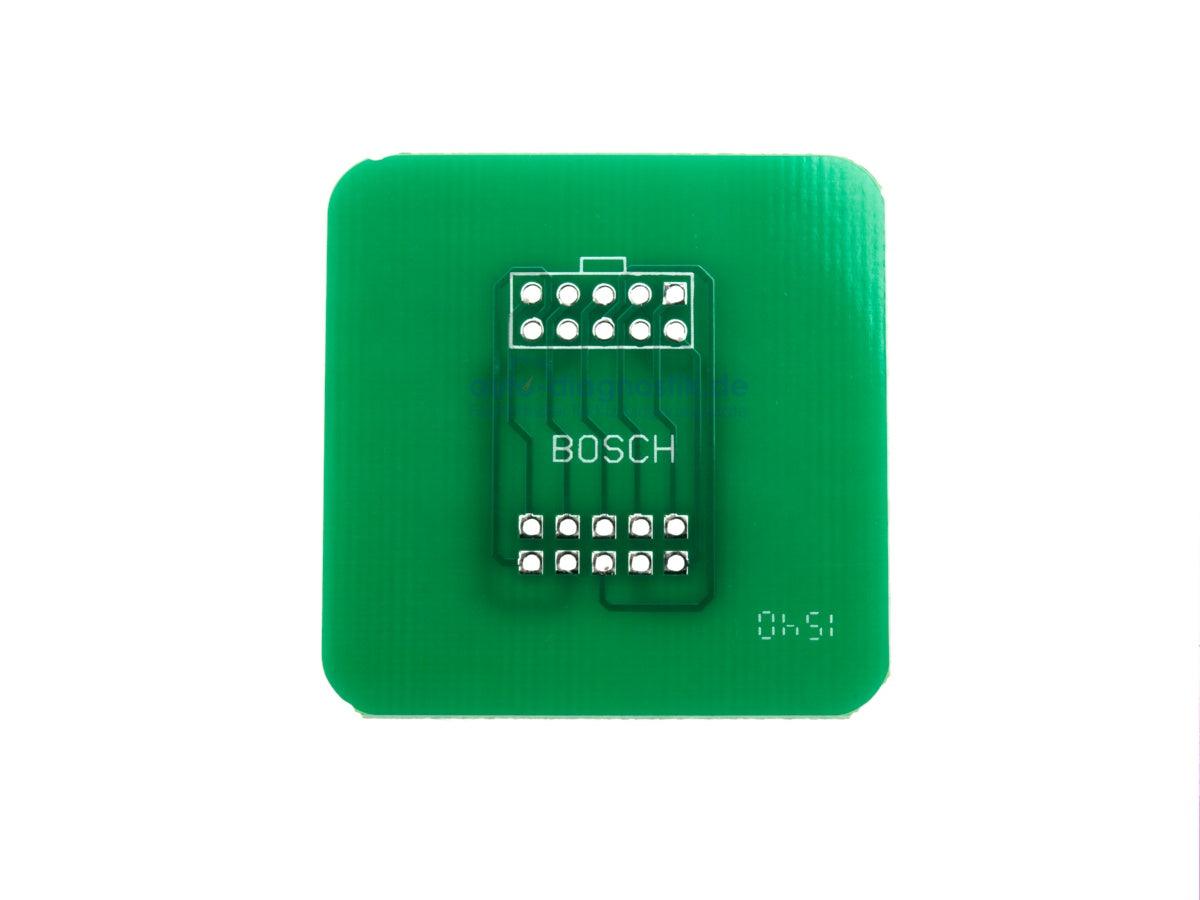

- Probe for Bosch engine control units

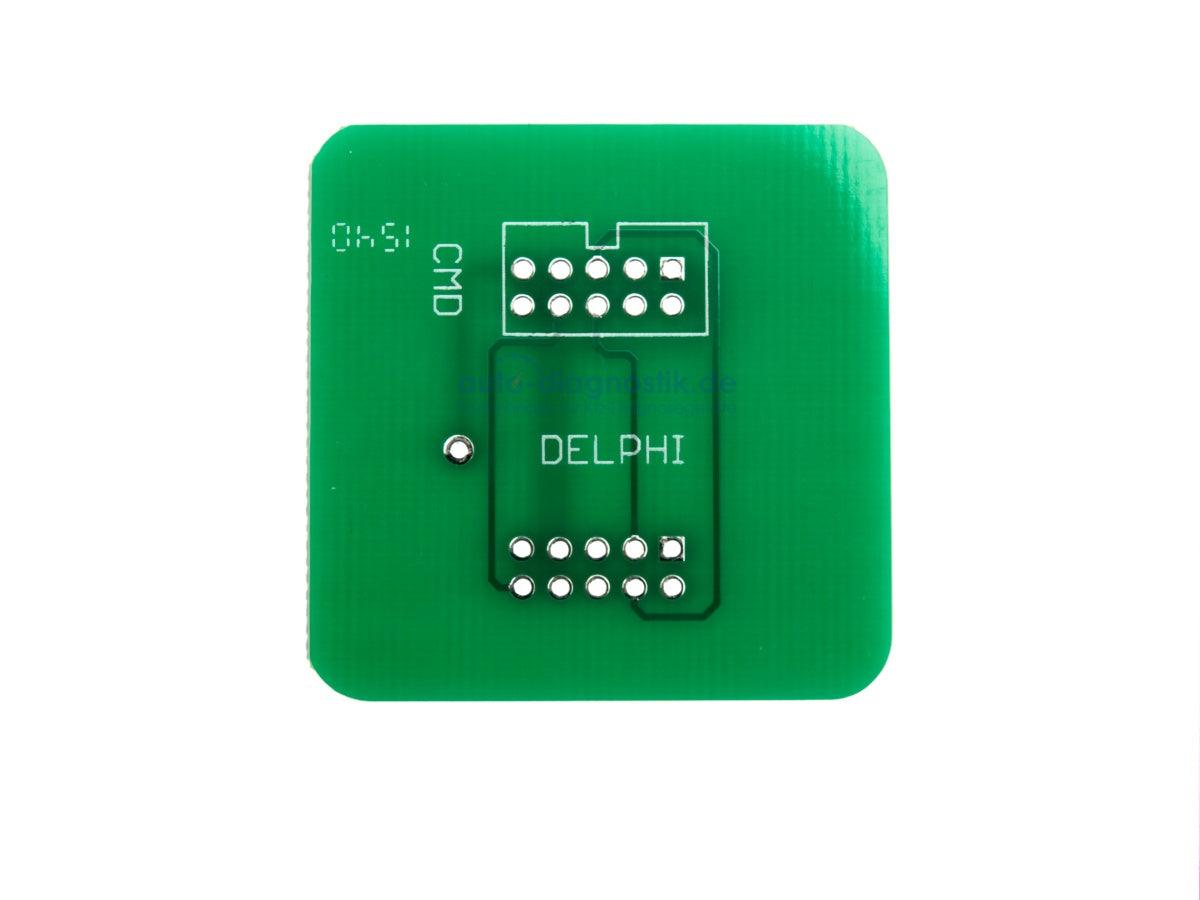

- Probe for Delphi engine control units

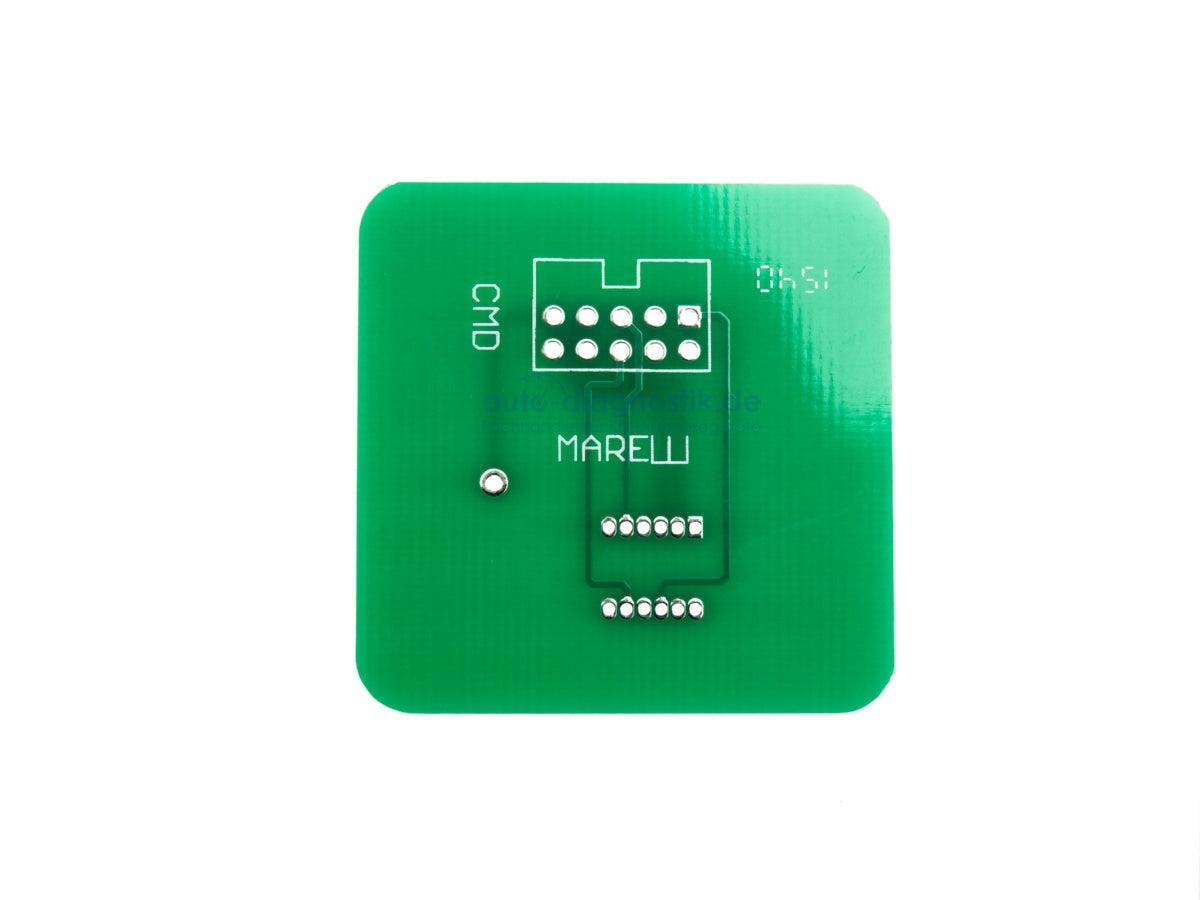

- Probe for Marelli engine control units
Product features:
- Easy connection to engine control units without direct soldering work
- Compatible with Siemens, Bosch, Delphi and Marelli control units
- Ideal for professional workshops and diagnostic applications
The BDM Frame is perfectly suited for professional mechanics and technicians seeking an efficient solution for working on engine control units. Thanks to its robust construction and various probe heads, this set enables precise diagnostics and repairs.
Why this BDM frame?
The BDM Frame saves you valuable time and effort, as you can easily connect engine control units without soldering. Its high compatibility with common control units and ease of use make it an indispensable tool in modern vehicle diagnostics.
How a BDM frame works in ECU diagnostics
A BDM frame serves as a mechanical mount for the so-called Background Debug Mode interface of modern engine control units (ECUs). This interface allows technicians to directly access the memory and program structure of an ECU. The major advantage is that access is possible without the time-consuming process of desoldering the ECU or removing individual memory chips.
Direct access to ECU memory
Many engine control units (ECUs) have internal memory areas for software, maps, and vehicle data. A BDM frame allows these memory areas to be read or written directly. This is particularly relevant for:
- Software updates for engine control units
- ECU remapping
- Repair of damaged software versions
- Analysis of fault conditions

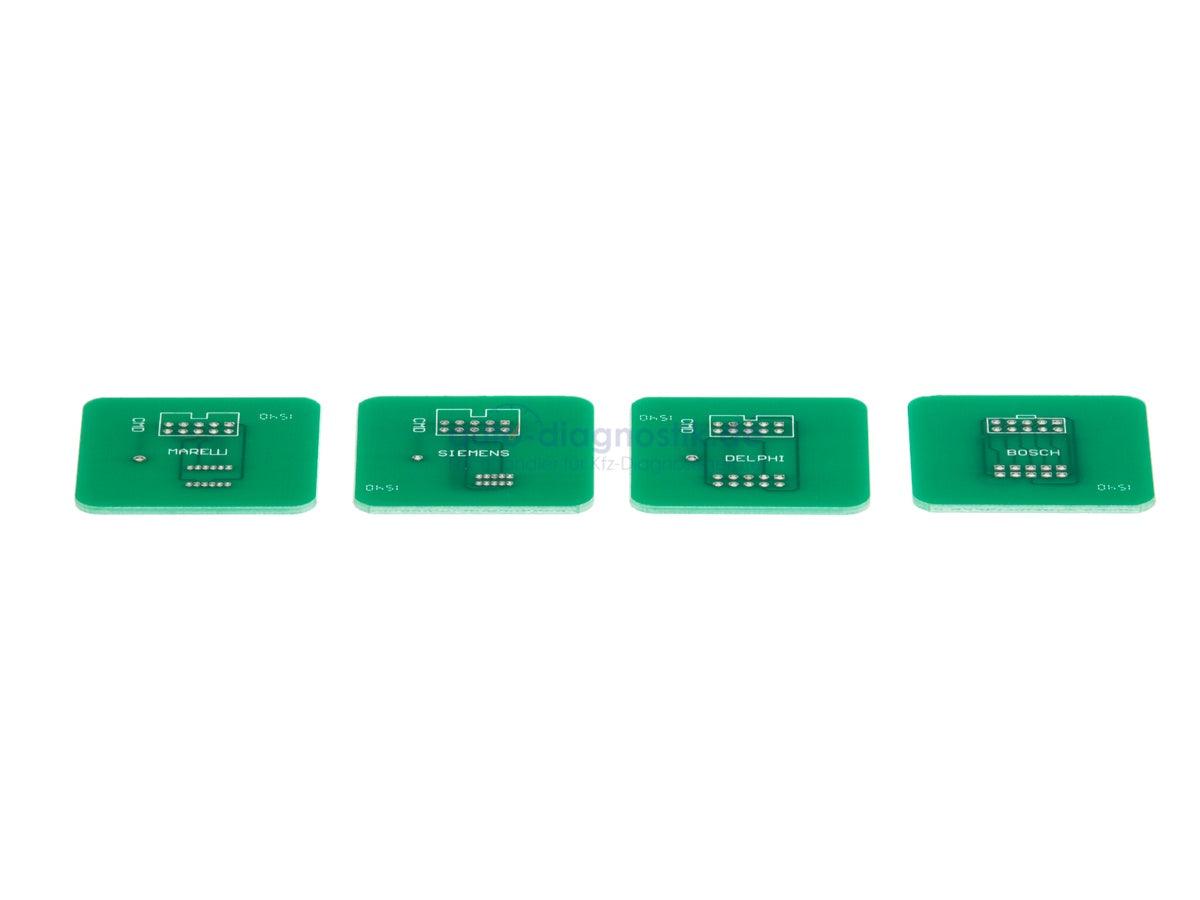

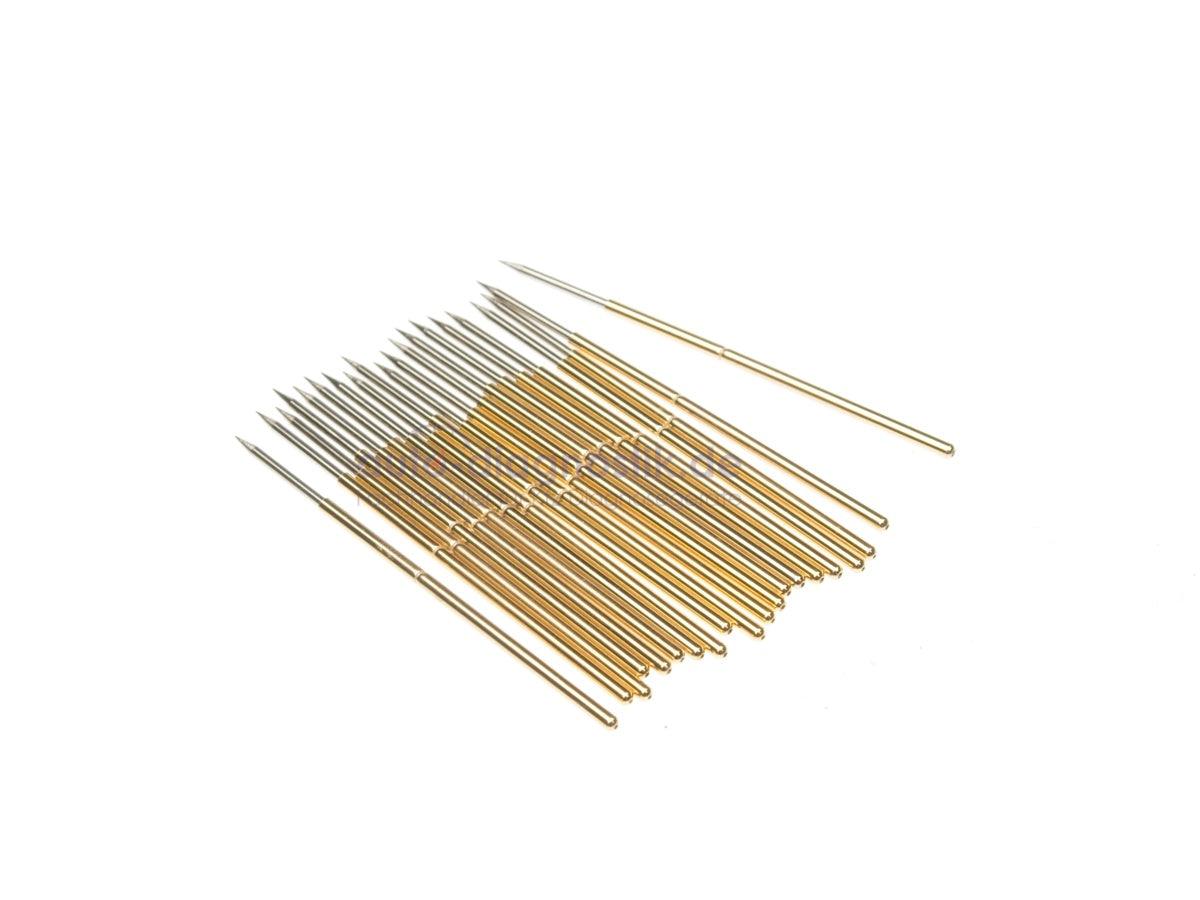

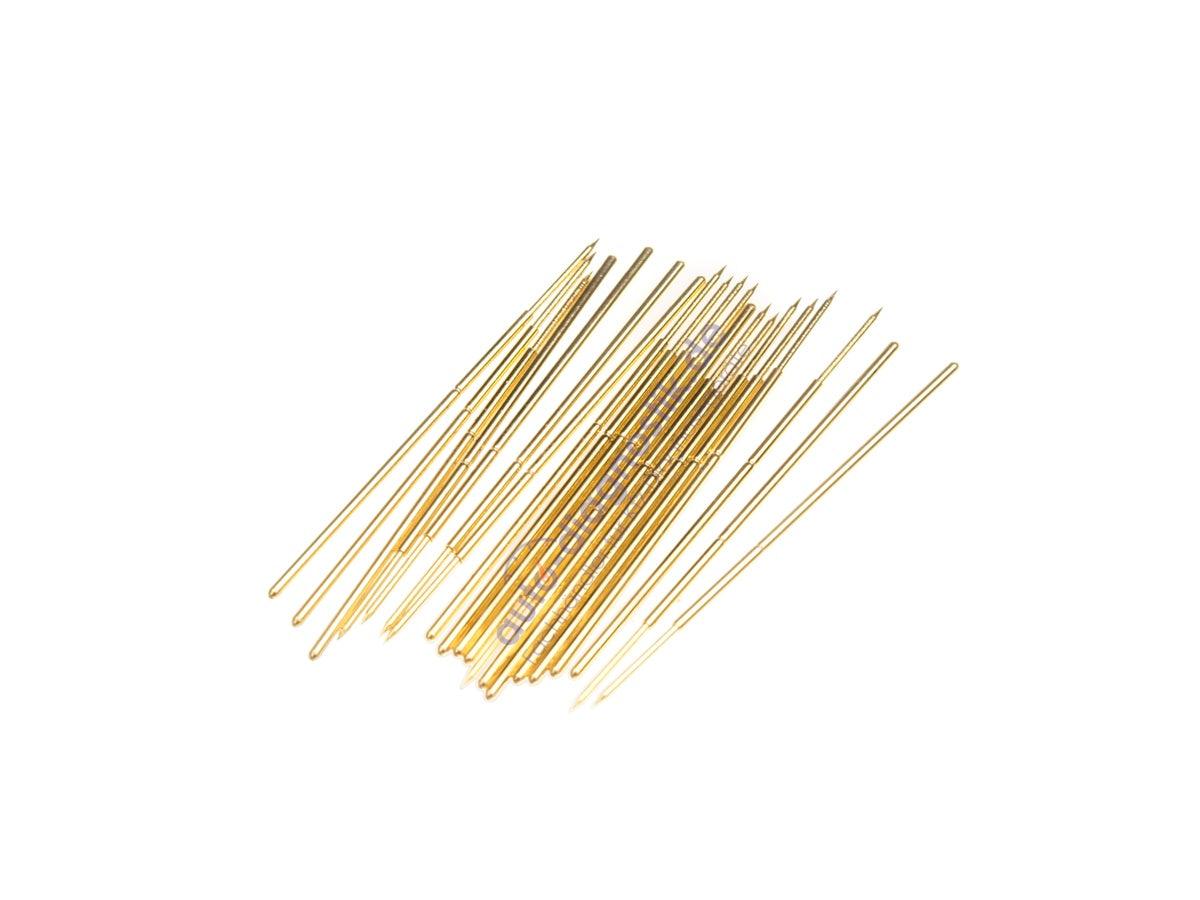

Contact via special probes
The probes included in the set enable precise contacting of the BDM pads on the engine control unit's circuit board. The BDM frame is positioned so that the contacts press exactly onto the designated contact points. This technique allows for stable connections without requiring permanent modifications to the circuit board.
Typical areas of application in the workshop
A BDM frame is primarily used in specialized workshops and by vehicle diagnostic service providers. Especially with modern diesel engines and complex engine control units, access via BDM is often the only way to perform in-depth software analysis.
Software analysis and data recovery
If an engine control unit (ECU) fails to start due to corrupted firmware or faulty programming, the BDM Frame can help read the memory directly. This allows backups to be restored or original software versions to be reinstalled.
Optimization and map editing
Performance optimization often involves direct access to ECU maps. The BDM frame enables stable access to the ECU's memory structure, allowing adjustments to injection quantities, boost pressure, or torque limits.
Diagnosis of control units that are no longer communicating
A common problem encountered in workshops involves engine control units (ECUs) that no longer establish a connection via OBD. In such situations, access via the internal BDM interface often remains the only diagnostic option. However, with a BDM frame, technicians can still access the ECU's contents.
Technical advantages of a stable BDM frame
A precisely manufactured BDM frame significantly improves workplace safety when working on electronic control units (ECUs). Stable mechanical positioning is crucial, especially when accessing sensitive electronics.
Mechanical stability during contacting
The frame ensures that the probes sit precisely on the contact points of the circuit board. This prevents contact problems that could lead to data errors during the read or write process.
Reduction of faulty connections
The defined positioning of a BDM frame minimizes the risk of incorrectly placed contacts. Especially with very small PCB pads, inaccurate positioning can otherwise lead to short circuits or incomplete data transmissions.
Compatibility with various control unit manufacturers
The offered BDM frame is suitable for a wide range of common ECU manufacturers. The various probe heads allow for different layouts and pin assignments.
Bosch engine control units
Bosch control units are among the most frequently used control units in the European automotive market. Many variants of the EDC and ME series have BDM access points on the circuit board, which can be easily connected using a suitable BDM frame.
Siemens and Continental Systems
Siemens and Continental control units also frequently have a BDM interface. This is used, among other things, in various gasoline and diesel engines and allows direct access to internal memory areas.
Delphi and Marelli control units
Delphi and Magneti Marelli control units are used particularly in smaller vehicle classes and in Italian and French vehicle models. The BDM Frame also enables a reliable connection for diagnostic and programming work in these cases.
Recommended car model for use with a BDM frame
The use of a BDM frame is particularly useful for vehicles whose engine control units are frequently programmed or repaired via BDM interfaces. Some vehicle models are especially prone to this in workshops.
Typical vehicles with BDM-capable control units
- BMW 3 Series E90 with Bosch EDC16 or ME9 control unit
- Volkswagen Golf V with Bosch EDC16 diesel control unit
- Alfa Romeo 159 with Magneti Marelli control unit
- Opel Astra H with Delphi engine control unit
Highly recommended: Volkswagen Golf V
The Volkswagen Golf V provides a particularly practical example. Many variants of this model use Bosch EDC16 control units, which are frequently programmed or repaired via BDM. Workshops regularly use a BDM frame to read software versions or correct faulty programming. The stable connection of the BDM frame allows these tasks to be performed reliably and reproducibly.
Software and hardware requirements for BDM work
The BDM frame is only one part of the overall diagnostic environment. Access to engine control units also requires suitable programming devices and software solutions.
Interaction with BDM100 programmers
Many workshops use a BDM100 programming device in conjunction with a BDM frame. This allows reading and writing to the control unit's memory via the BDM interface. The frame ensures a stable physical connection.
working environment for secure programming
When working on engine control units, a stable power supply and an antistatic working environment should always be ensured. Since large amounts of data are transferred during the writing process, power interruptions can lead to corrupted software versions.
The importance of precise diagnostic tools in modern automotive engineering
The complexity of modern engine control units is constantly increasing. Vehicles today have extensive software structures that control numerous engine functions. A BDM frame enables direct access to these systems and significantly expands diagnostic capabilities.
Extended diagnostic options
While classic OBD diagnostics only allow limited access to control units, BDM access enables in-depth analysis. Workshops can compare software versions, check memory areas, and repair damaged data structures.
Economic benefits for workshops
By using a BDM frame, workshops can repair many control units that would otherwise have to be completely replaced. This significantly reduces repair costs and enables more economical repairs for vehicle owners.
Professional support for ECU work
A robustly constructed BDM frame is an important tool for diagnostic and programming work on engine control units. The precise contact of the BDM interface allows technicians reliable access to internal memory structures and the ability to perform extensive software work.
Especially in specialized workshops dealing with ECU analysis, map modification, or data recovery, a BDM frame is considered essential equipment. The combination of a robust mechanical design, compatible probes, and solderless access makes this tool an efficient solution for modern vehicle diagnostics and ECU maintenance.
