Car diagnostics – what is car diagnostics and what is done during it?
Modern automotive technology has changed dramatically in recent decades. Vehicles are no longer purely mechanical machines, but highly complex systems with numerous electronic control units. To ensure efficient maintenance, repairs, and troubleshooting, vehicle diagnostics are essential. In this article, we explain what vehicle diagnostics is, how it works, and the benefits it offers drivers, workshops, and safety.
What does car diagnostics mean?
Automotive diagnostics refers to the systematic analysis and inspection of a vehicle's electronic and mechanical components. This involves accessing the vehicle's control units using specialized diagnostic equipment. These control units continuously monitor functions such as the engine, transmission, emissions control system, brakes, and airbags, and store fault codes as soon as irregularities occur. Automotive diagnostics makes these faults visible and enables targeted troubleshooting.
Why is car diagnostics necessary?
Modern vehicles often have more than 50 electronic control units (ECUs) that communicate with each other via bus systems such as CAN bus or LIN bus. Without the appropriate technology, finding the source of a fault is virtually impossible. While in the past an experienced mechanic could narrow down defects using noises, smells, or mechanical tests, today digital analysis methods are essential. Vehicle diagnostics are therefore the foundation of any professional vehicle repair.
How does car diagnostics work?
Diagnostics are performed via the standardized OBD2 interface (On-Board Diagnostics), which is usually located in the vehicle's footwell. A diagnostic tool is connected there, which communicates with the control units. The process is divided into several steps:
- Reading error codes: The device records stored error codes (DTC – Diagnostic Trouble Codes) that indicate defective sensors, control units or components.
- Real-time data analysis: In addition to stored codes, current values such as engine speed, temperature, lambda sensor or boost pressure can also be read out.
- Deleting error codes: After a repair, the error codes can be reset so that the system can be monitored again.
- Special functions: High-quality diagnostic devices also enable control unit coding, service reset, injector adjustments or TPMS programming.
What is done during car diagnostics?
Automotive diagnostics covers a broad spectrum that goes far beyond simply reading error codes. Key tasks include:
- Engine and transmission diagnostics: Detection of faults in the drivetrain such as misfires, defective sensors or shifting problems.
- Exhaust and environmental control: Checking the exhaust aftertreatment system (catalytic converter, diesel particulate filter, EGR valve), which is crucial for compliance with legal limits.
- Safety-relevant systems: Control of ABS, ESP, airbag and brake pressure sensors.
- Comfort and assistance systems: Diagnosis of air conditioning, central locking, driver assistance systems or infotainment.
What devices are used for car diagnostics?
There are different types of diagnostic devices that are used depending on the application:
- Simple OBD2 scanners: Inexpensive devices for hobby users that can read standard error codes.
- Brand-specific diagnostic devices: Devices that are tailored to a specific car brand and enable in-depth analyses.
- Multi-brand diagnostic tools: Professional tools for workshops that are compatible with almost all vehicle brands and offer numerous special functions.
Difference between fault code reading and comprehensive diagnostics
Many drivers are familiar with the classic fault code reading performed in workshops, but this is only one aspect. While simple fault code reading involves reading and clearing codes, comprehensive diagnostics provide a complete picture of the vehicle. This includes live data, adaptations, functional tests, and coding – in other words, a more in-depth analysis and optimization.
Advantages of car diagnostics
The advantages of professional vehicle diagnostics are numerous:
- Time saving: Faults are found faster, which allows repairs to be carried out more efficiently.
- Cost reduction: Precise analysis prevents unnecessary parts replacement.
- Safety: Early detection of safety-relevant defects increases driving safety.
- Environmental protection: Defective exhaust systems can be detected and repaired in time.
- Comfort: Comfort systems can also be optimized or adapted.
Who is interested in car diagnostics?
Car diagnostics isn't just for workshops. Ambitious DIY mechanics also benefit from the capabilities of modern diagnostic devices. While workshops rely on professional multi-brand systems, private users can quickly check for faults and perform simple maintenance tasks themselves with compact devices.
Car diagnostics – a look into the future
With the increasing digitalization of vehicles, diagnostics are also becoming more complex. New technologies such as DoIP (Diagnostics over IP) and remote diagnostics via internet connections are gaining in importance. Over-the-air software updates and cloud-based systems will also change the way vehicles are diagnosed. Workshops must therefore continuously develop their skills to keep pace with these developments.
Recommended diagnostic equipment for professionals and workshops
Those who want to fully exploit the advantages of modern automotive diagnostics should rely on high-quality diagnostic devices that deliver precise results and offer broad vehicle coverage. Workshops and experienced mechanics, in particular, benefit from professional, comprehensive systems that guarantee both reliability and future-proofing. Two proven solutions have stood out in this regard.

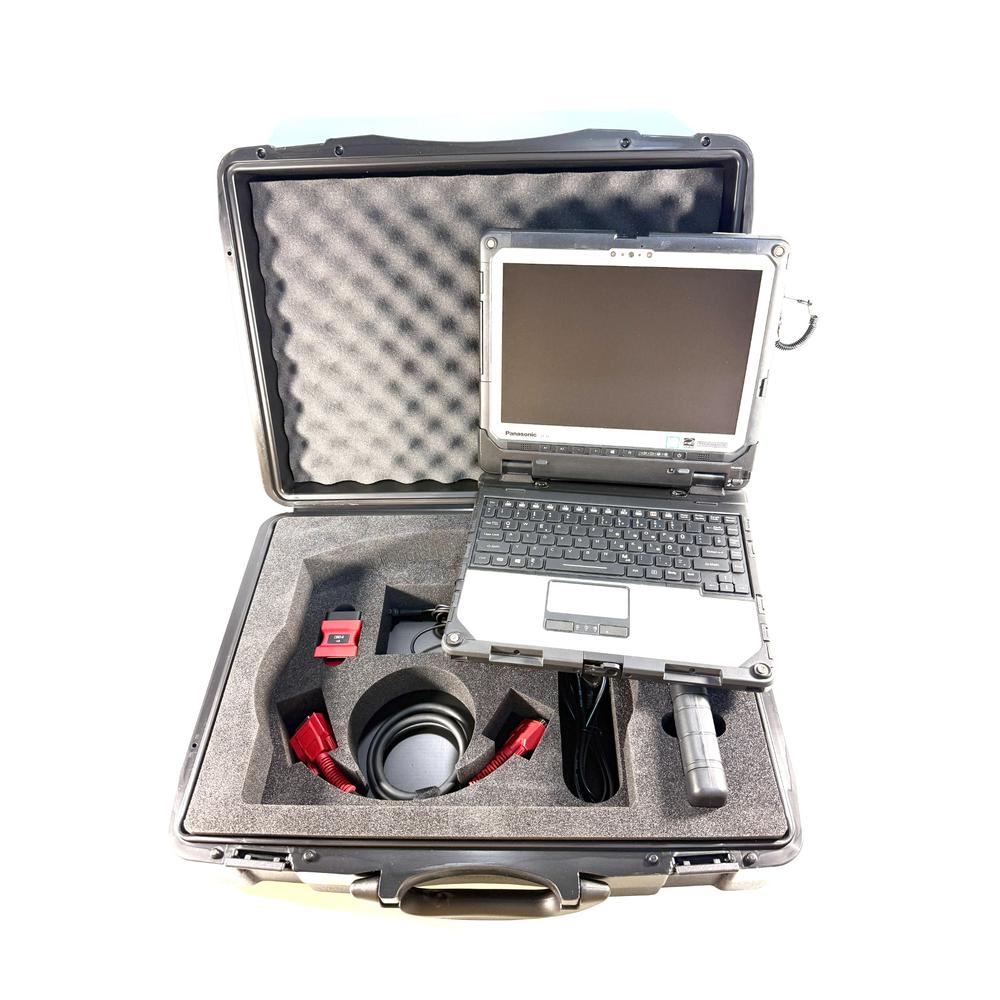

Original VAS6154A ODIS Service 23 with Panasonic CF-19
The original VAS6154A ODIS Service 23 system with Panasonic CF-19 is one of the most advanced OEM diagnostic combinations for vehicles of the VW Group. It is specifically tailored to Volkswagen, Audi, Škoda, Seat, and Cupra and provides access to all of the vehicle's control units. In conjunction with the ODIS service and engineering software, fault codes can be read, and control units can be programmed and coded. The robust Panasonic Toughbook CF-19 is shockproof and splashproof, making it ideal for demanding workshop use.
Panasonic CF-D1 diagnostic tool for cars, trucks and buses
The Panasonic CF-D1 diagnostic tool is a universal solution for all vehicle types – from cars and trucks to buses. It combines a powerful, workshop-ready laptop with multi-brand diagnostic software that covers virtually all major manufacturers. This makes the system ideal for independent workshops working with various vehicle brands. The large, low-reflection display facilitates operation even in direct sunlight, while the robust construction delivers reliable results even under the harshest conditions. With features such as ECU coding, live data analysis, service reset, and injector adaptation, the CF-D1 is an indispensable tool for modern vehicle diagnostics.
Professional diagnosis at the highest level
Both systems stand for quality, stability, and precision. Unlike simple OBD2 scanners, they offer access to all vehicle-specific systems and support modern communication protocols such as DoIP and CAN-FD. Workshops benefit from fast and accurate fault analysis, shorter repair times, and professional customer support. Even ambitious private users who want more than just to read fault codes will find a workshop-level solution here. With these diagnostic devices, you are ideally equipped for the demands of today's and tomorrow's automotive technology.
Car diagnostics are indispensable
Whether for troubleshooting, maintenance, or optimizing vehicle functions – automotive diagnostics are indispensable in the modern automotive sector. They ensure transparency, save costs, and increase safety. Anyone who wants to professionally maintain their car cannot avoid systematic vehicle diagnostics. Whether you're a workshop or an enthusiastic driver – the right automotive diagnostics are the key to a reliable and safe vehicle.
