Understanding and Correctly Reading OBD2 Trouble Codes
Modern vehicles are equipped with numerous control units and sensors that constantly monitor important vehicle data. If a malfunction occurs, the on-board diagnostic system stores a corresponding trouble code. With a suitable diagnostic device, this information can be quickly read and evaluated.
Knowing the meaning of a trouble code can help identify problems early and prevent costly consequential damage. In this guide, you will learn how OBD2 trouble codes are structured, which errors occur particularly frequently, and how to react correctly to them.
What is a trouble code?
A trouble code is a standardized combination of letters and numbers stored by the OBD2 (On-Board Diagnostics) system. As soon as a sensor or control unit detects an irregularity, a corresponding trouble code is stored in the vehicle.
The stored information helps to identify sources of error more quickly and to carry out repairs in a targeted manner. Both workshops and private vehicle owners use diagnostic devices to read out and evaluate the respective trouble code.
Structure of an OBD2 Trouble Code
Each trouble code consists of five characters:
-
The first letter identifies the vehicle area:
-
P = Powertrain (engine and transmission)
-
B = Body
-
C = Chassis
-
U = Network and communication systems
-
-
The second digit distinguishes between general and manufacturer-specific trouble codes:
-
0 = Generic code
-
1 = Manufacturer-specific code
-
-
The third digit describes the affected subsystem.
-
The last two digits provide detailed information about the specific fault.
Common OBD2 Trouble Codes and Their Meanings
Trouble Code P0171 – System Too Lean (Bank 1)
This trouble code indicates that the air-fuel mixture contains too little fuel. Common causes are leaky intake hoses, faulty oxygen sensors, or problems with fuel supply.
Possible symptoms:
-
Loss of power
-
Rough idling
-
Increased fuel consumption
-
Illuminated Check Engine Light
Trouble Code P0300 – Random Misfire Detected
Trouble code P0300 signals misfires in multiple cylinders. Causes can include worn spark plugs, faulty ignition coils, or problems in the injection system.
If this trouble code is ignored, long-term damage to the catalytic converter or engine can occur.
Trouble Code P0420 – Catalyst System Efficiency Below Threshold
This trouble code indicates restricted function of the catalytic converter. Often, a worn catalytic converter or faulty oxygen sensors are the cause.
A defective catalytic converter can lead to increased emission values and cause problems during the main inspection.
Trouble Code P0442 – Evaporative Emission System Leak Detected (Small Leak)
Trouble code P0442 concerns the evaporative emission control system. Even an improperly closed fuel cap can cause this error.
Other possible causes include:
-
Porous hoses
-
Leaky connections
-
Defective valves in the EVAP system
Trouble Code P0113 – Intake Air Temperature Sensor 1 Circuit High Input
This trouble code indicates faulty readings from the intake air temperature sensor. Damaged cables, connectors, or a defective sensor are often responsible.
A faulty sensor signal can affect engine control and increase fuel consumption.
What to do if a trouble code has been stored?
As soon as a trouble code is read out, the cause should be checked. Even if the vehicle initially still drives normally, a serious malfunction may be hidden behind the error. Early diagnosis helps to avoid major damage and unnecessary repair costs.
Document the Trouble Code
Write down the complete trouble code and research its meaning. Many diagnostic devices already provide an initial error description directly on the display. This allows you to later trace the error more easily or pass it on to a workshop.
Check Vehicle Documents
In some cases, the vehicle manual contains additional information about the respective trouble code and recommended measures. Manufacturers often provide information about typical causes and possible solutions there.
Perform Professional Diagnosis
Not every trouble code automatically means a defect in the named component. Often, further measured values must be checked to determine the actual cause. In case of doubt, a professional diagnosis is recommended to avoid misdiagnosis and unnecessary parts replacement.
What to look for in a diagnostic device
A high-quality diagnostic device greatly simplifies error analysis and saves time in troubleshooting. Modern devices can not only read out a trouble code but often also provide detailed information about the possible cause and the affected vehicle systems.
Extensive Trouble Code Database
The device should support as many OBD2 trouble codes as possible and provide understandable error descriptions. An extensive database helps to understand a trouble code more quickly and to narrow down the cause of a problem more precisely.
High Vehicle Compatibility
Make sure that the diagnostic device is compatible with as many vehicle brands and model years as possible. Especially for workshops and multi-vehicle owners, broad vehicle coverage is important to reliably read out trouble codes from different manufacturers.
Regular Software Updates
Up-to-date software ensures that new vehicle models and additional trouble codes are reliably recognized. Regular updates keep the diagnostic device operational in the long term and support modern control units and diagnostic systems.
Vident iSmart 810 – Ideal for Quick Trouble Code Diagnosis
For those who want to reliably read and clear trouble codes, the Vident iSmart 810 offers a user-friendly solution for vehicle diagnostics. The device supports numerous vehicle brands and provides quick analysis of OBD2 trouble codes as well as important vehicle systems. Especially for ambitious vehicle owners and smaller workshops, the diagnostic device is excellently suited for daily troubleshooting.

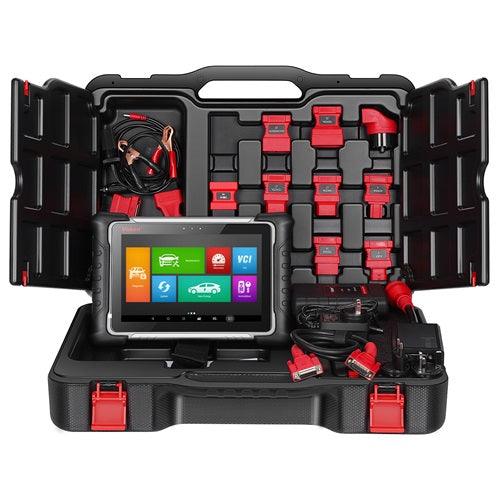

Autel MaxiDAS DS808K – Professional Diagnostics for Workshops and Experts
The Autel MaxiDAS DS808K is a powerful diagnostic solution for professional users and workshops. In addition to reading and clearing trouble codes, the device offers extensive diagnostic functions, service resets, and the evaluation of live data from numerous control units. Thanks to the comprehensive adapter kit and broad vehicle coverage, the system is ideal for comprehensive vehicle diagnostics on modern vehicles from various manufacturers.
Detecting Trouble Codes Early and Saving Costs
A stored trouble code provides important clues about technical problems in the vehicle. By reading and interpreting trouble codes in good time, many defects can be detected early and expensive repairs avoided.
With a professional diagnostic device, you can quickly read out any trouble code, narrow down the cause, and initiate targeted measures for troubleshooting. This saves time, money, and increases the operational safety of your vehicle.
