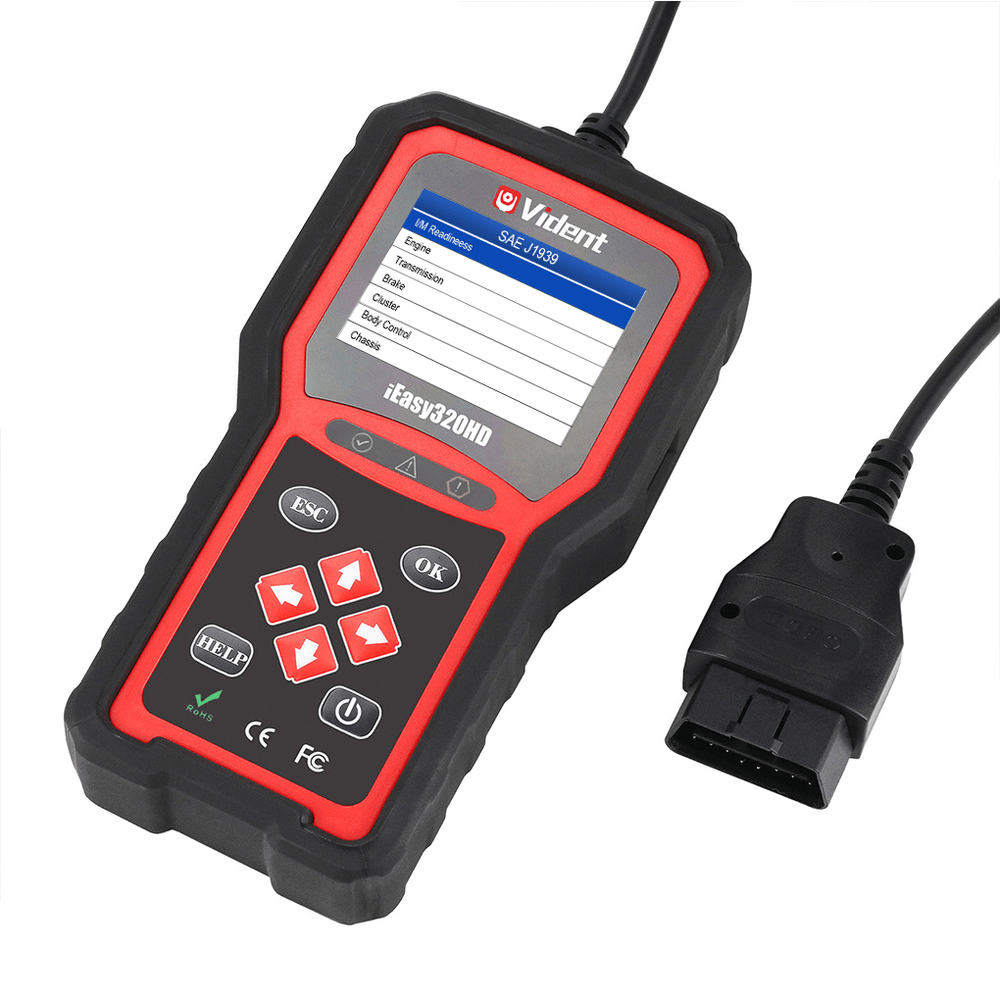

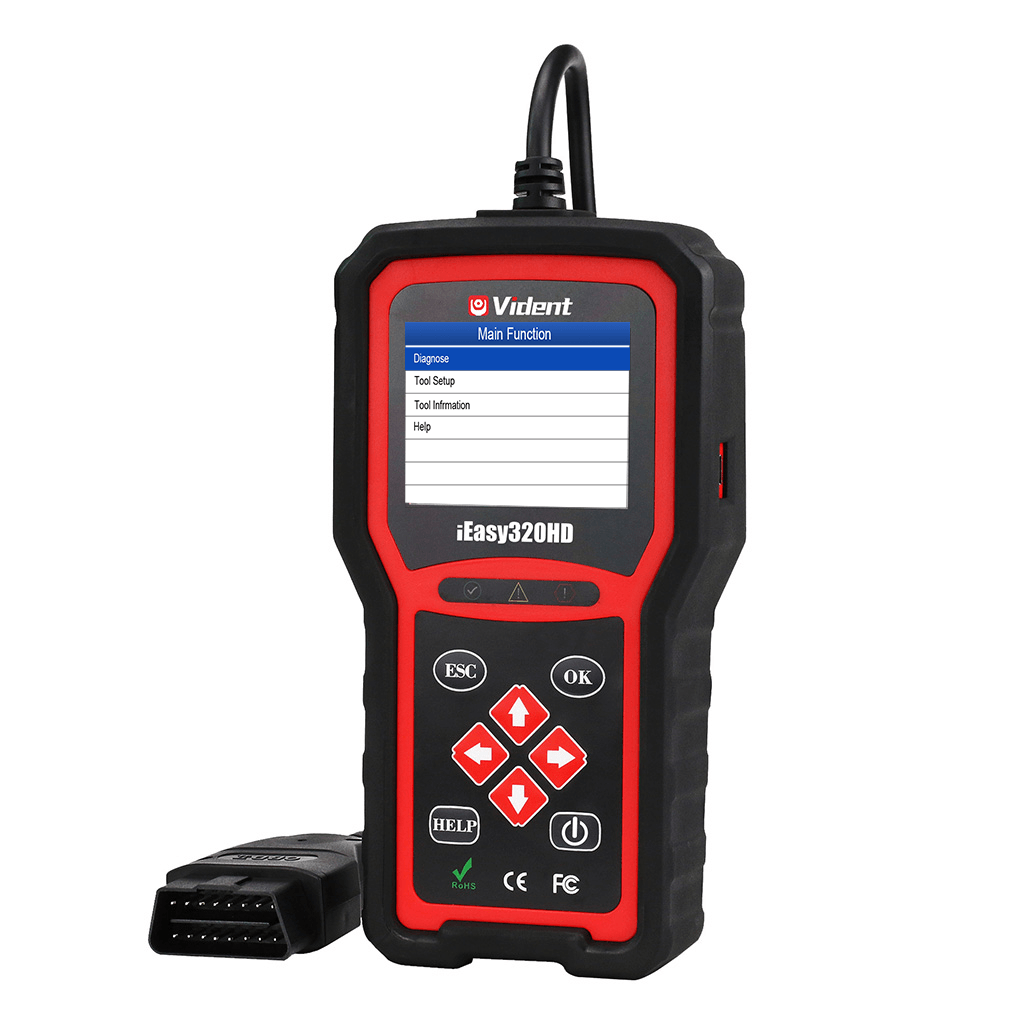

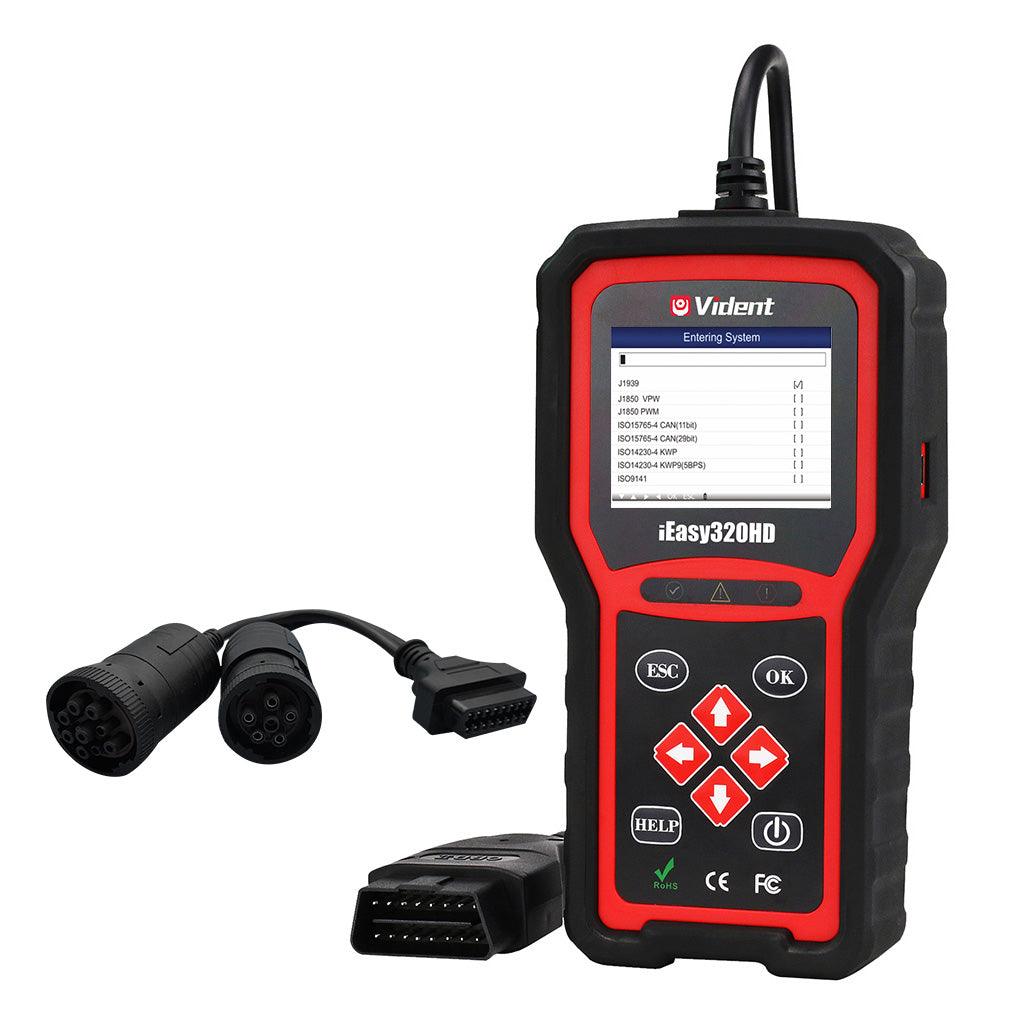

Vident iEasy320HD Diesel & Petrol OBDII/EOBD CAN Code Reader
✓ High reliability and long service life
✓ Easy handling and user-friendliness
✓ Fast and competent customer service
✓ 12 months warranty
Vident iEasy320HD Diesel & Petrol OBDII/EOBD CAN Code Reader is backordered and will ship as soon as it is back in stock.
Description
Description
iEasy320HD Diesel & Petrol OBDII/EOBD+CAN Code Reader – Professional Vehicle Diagnostics for Multi-Systems
The iEasy320HD OBDII/EOBD+CAN code reader is a powerful diagnostic tool specifically designed for vehicle communication in diesel and gasoline vehicles . It supports a wide range of communication protocols and offers comprehensive functions for fault diagnosis and monitoring of multiple systems , including the engine, transmission, brakes, fuel system, body control, and chassis. The device is ideal for professional automotive mechanics and ambitious DIY enthusiasts.
Key features of the iEasy320HD code reader
- Supported protocols: J1939, J1587/1708, J1850VPW, J1850PWM, ISO9141, KWP2000 (ISO14230-4) and CAN (ISO15765-4).
- 10 OBDII test modes: Comprehensive support for all common OBDII diagnostic modes, including reading and clearing fault codes.
- Extended Mode 6 functions: Displays test results for systems that are not continuously monitored.
- I/M readiness: Red-yellow-green LEDs and a built-in speaker indicate the status of the exhaust gas monitoring and help to detect intermittent problems.
- Multi-system diagnostics: Supports various vehicle areas such as engine, transmission, brakes, fuel system, body and chassis.
- Graphical representation: Visualization of live data on the screen for better monitoring.
- Retrieving vehicle information: Reading logs, VIN, Cal ID and CVN identifiers from the ECU.
- Multilingual menu: Available in English, German, French, Spanish and Russian.
Hardware features
- OBDII cable: Ensures communication with the vehicle.
- LCD display: Shows menus, test results and useful operating tips.
-
Control buttons:
- Up/Down buttons: Navigate up or down in the menu.
- Right/Left keys: Move the cursor to the right or left, scroll through multiple pages.
- ESC key: Return to the previous menu.
- OK button: Confirms a selection or action.
- Power button: Turns the device on.
Technical specifications
| Characteristic | Details |
|---|---|
| Operating temperature | 0 to 60°C (32 to 140°F) |
| Storage temperature | -20 to 70°C (-4 to 158°F) |
| power supply | 8 to 18 V, supplied via the vehicle |
| Supported protocols | J1939, J1587/1708, J1850VPW, J1850PWM, ISO9141, KWP2000 (ISO14230-4), CAN (ISO15765-4) |
| Device dimensions | 190mm (7.5”) x 100mm (3.9”) x 35mm (1.4”) |
| Weight | 380g |

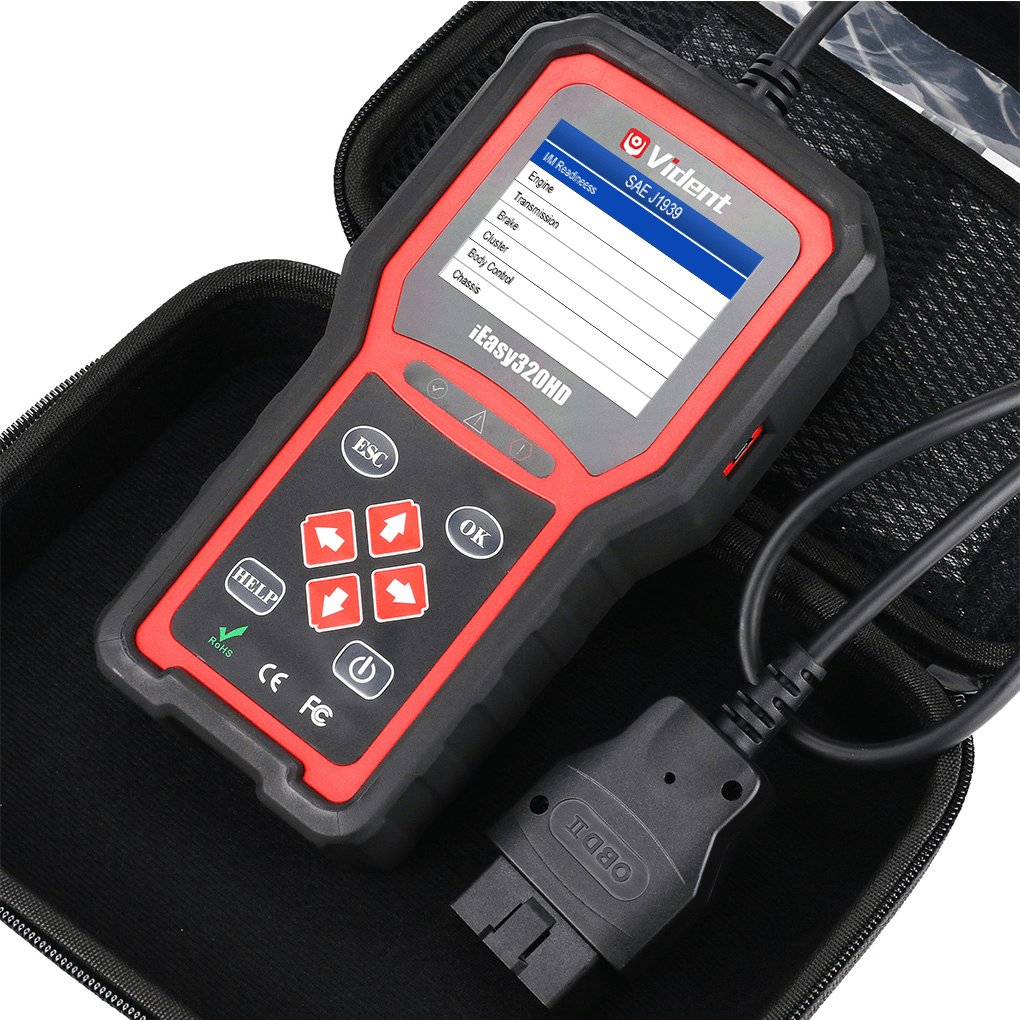

Scope of delivery
- iEasy320HD Diesel & Petrol OBDII/EOBD+CAN Code Reader
- User manual
- USB PC cable for software updates
About us – Your official Vident dealer
We are an official Vident Germany dealer and offer you not only high-quality automotive diagnostic equipment but also comprehensive support. As your personal contact, we will accompany you through all phases of the partnership and help you successfully develop your business with diagnostic equipment and products.
Why choose the iEasy320HD code reader?
The iEasy320HD code reader is the perfect choice for professional automotive mechanics and DIY enthusiasts who require comprehensive multi-system diagnostics. With support for a wide range of vehicle communication protocols, advanced Mode 6 functionality , and a graphical live data display, this device offers a reliable solution for all diagnostic needs.
Note: The iEasy320HD is a diagnostic tool and is not intended for the direct repair of vehicles.
Technical functionality of the iEasy320HD in detail
Communication architecture and control unit access
The iEasy320HD code reader communicates with the vehicle via the standardized 16-pin OBD interface. Depending on the vehicle type and year of manufacture, the device uses different bus systems such as CAN or older K-lines. The iEasy320HD code reader's integrated protocol stack automatically detects the communication protocol in use and establishes a stable connection to the respective ECU. This enables structured querying of diagnostic trouble codes (DTCs), sensor data, and status information.
Error code interpretation and system analysis
A key advantage of the iEasy320HD code reader lies in its clearly structured display of generic and manufacturer-specific fault codes. Beyond simply displaying the code, the device supports freeze-frame data analysis, allowing users to reconstruct the operating conditions at the time of the fault. In practical workshop settings, this facilitates the targeted identification of sporadic faults, such as temperature-dependent sensor problems or intermittent CAN communication errors.
Mode 6 as an advanced diagnostic tool
The iEasy320HD code reader's advanced Mode 6 functions provide access to test results from individual monitor checks. Especially with emissions-related components such as lambda sensors, catalytic converters, or particulate filters, limit violations can be detected early, even before a permanent engine warning light is activated. This is particularly advantageous when preparing for vehicle inspections or emissions tests.
Workshop benefits and practical application scenarios
Quick diagnosis when the engine warning light is illuminated
In everyday workshop life, time is a crucial factor. The iEasy320HD code reader enables immediate initial diagnosis on customer vehicles with an active MIL (Malfunction Indicator Lamp). By quickly reading the DTCs (Diagnostic Trouble Codes), the mechanic can determine whether it is a sporadic fault or an acute problem requiring action.
Preliminary inspection when buying or selling a vehicle
The iEasy320HD code reader also offers clear added value in the used car trade. Reading VIN, calibration ID, and CVN information allows conclusions to be drawn about software versions and potential tampering. This enables discrepancies to be detected and documented early on.
Support with maintenance work
As part of routine maintenance, the iEasy320HD code reader assists in verifying I/M readiness. After repairs to the exhaust system, it can be immediately checked whether all monitors have completed successfully. This reduces unnecessary rework and increases planning reliability.
Software and update concept
Firmware update via USB
The iEasy320HD code reader features a USB interface for updating the device software. This allows the diagnostic tool to be adapted to new protocol extensions or optimizations. Especially with regard to changing emissions regulations and new generations of control units, this is a relevant aspect for long-term use.
User guidance and menu structure
The iEasy320HD code reader's clearly structured menu navigation allows for quick familiarization. Logical navigation paths and clearly labeled functions minimize operating errors. This is particularly advantageous in multi-person operations where different employees use the device.
Target groups and areas of application
Independent workshops and service centers
For independent workshops, the iEasy320HD code reader represents an economical entry-level device for professional OBD diagnostics. It covers the relevant basic functions and is suitable for a wide range of vehicle makes.
Ambitious private users
Even technically savvy vehicle owners benefit from the iEasy320HD code reader, as simple fault analyses can be performed independently. However, the device does not replace in-depth, manufacturer-specific diagnostic software.
Car model recommendation for optimal use
Suitable vehicle models
The iEasy320HD code reader is particularly suitable for OBDII-compliant vehicles manufactured from 2001 (gasoline) or 2004 (diesel) onwards. Typical vehicles include, for example:
- VW Golf VII 1.6 TDI
- BMW 3 Series F30 320d
- Mercedes-Benz C-Class W204 C220 CDI
- Ford Focus 1.5 EcoBoost
Recommended combination: VW Golf VII 1.6 TDI
The iEasy320HD code reader is particularly recommended for use with the VW Golf VII 1.6 TDI. This model features a standardized CAN-based engine management system, allowing full use of the device's OBD diagnostic functions. Typical diagnostic issues such as EGR faults, DPF soot levels, or boost pressure deviations can be efficiently analyzed with the iEasy320HD code reader. Due to the widespread use of this model in the European market, this combination offers a practical and cost-effective solution.
Technically sound decision-making basis for workshop use
The iEasy320HD code reader impresses with its broad protocol support, practical functions, and robust hardware design. For workshops seeking a compact, ready-to-use diagnostic tool for multi-system applications, it represents a technically sound solution. The combination of Mode 6, I/M readiness indicator, and graphical live data analysis supports structured and efficient fault diagnosis. Thus, the iEasy320HD code reader provides a solid foundation for professional decisions in the diagnostic process.
