BMW 20pin OBD1 OBD2 to 16pin diagnostic connector cable for BMW

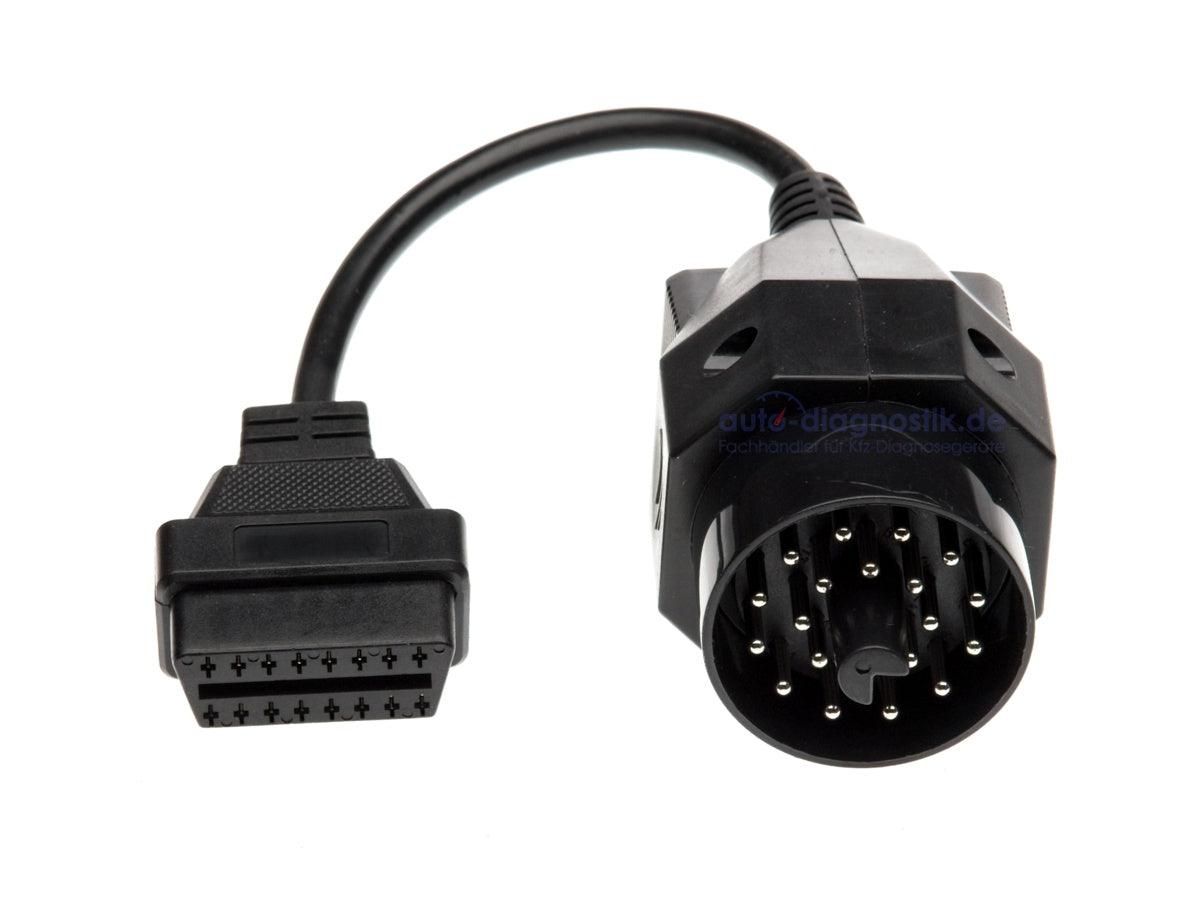

BMW 20-pin to OBD2 adapter cable – High-quality diagnostic cable for BMW vehicles with a 20-pin interface

Our BMW 20-pin to OBD2 adapter cable is the perfect solution for diagnosing BMW vehicles with a 20-pin OBD1 interface . This cable provides a reliable connection to OBD2 diagnostic devices and is ideal for vehicle owners and workshops that rely on precise and stable diagnostics.

Product features:

• Compatibility: Suitable for BMW vehicles with a 20-pin OBD1 interface
• Connection: BMW 20-pin plug to OBD2 16-pin socket
• High-quality materials and workmanship for a long service life

This adapter cable is an important component for BMW diagnostics, but it is not a scanner . It serves to connect BMW vehicles with older 20-pin interfaces to modern OBD2 devices, thus supporting effective diagnostics.

Please ensure your vehicle has a 16-pin diagnostic connector under the dashboard to guarantee cable compatibility.

Why this BMW 20-pin adapter cable?

This adapter cable offers a cost-effective solution for diagnosing BMW vehicles with a 20-pin OBD1 connector. It provides a durable connection and is suitable for both professional and home use, supporting precise and reliable diagnostics.

Technical background of the 20-pin BMW interface

Many BMW models from the 1990s and early 2000s feature a round 20-pin diagnostic port in the engine compartment. This port uses manufacturer-specific diagnostic protocols and provides access to control units such as the engine control unit (DME), ABS, airbag, and transmission control. The BMW 20-pin to OBD2 adapter cable allows the physical connection of this older diagnostic port to modern OBD2 diagnostic tools, which are typically equipped with a 16-pin port.

Signal transmission and pin assignment

The BMW 20-pin to OBD2 adapter cable correctly transmits the relevant diagnostic lines, such as the K-line, L-line, power supply, and ground, to the OBD2 interface. A precise pin assignment is crucial to avoid communication errors. High-quality contacts ensure stable data transmission without voltage drops or intermittent connections, which is particularly important during extended diagnostic sessions in the workshop.

Workshop use and practical benefits

In everyday workshop operations, time is a crucial factor. The BMW 20-pin to OBD2 adapter cable allows you to continue using existing OBD2 diagnostic tools without having to purchase additional specialized hardware. Especially with mixed vehicle fleets containing older and newer BMW models, the adapter cable significantly simplifies the workflow. Instead of having several different diagnostic cables on hand, you simply need to add the appropriate adapter.

Use in fault diagnosis and maintenance

The BMW 20-pin to OBD2 adapter cable efficiently supports typical service tasks. These include reading and clearing fault codes, resetting service intervals, and checking live data such as engine temperature, lambda sensor values, and RPM signals. A compatible diagnostic tool is always required, as the adapter cable itself contains no active electronics.

Difference between OBD1 and OBD2 in BMW

While OBD2 is a standardized diagnostic system, older BMW OBD1 systems are manufacturer-specific. The BMW 20-pin to OBD2 adapter cable therefore functions as a mechanical and electrical interface solution. It does not replace a protocol module, but merely enables the physical connection. The actual protocol support must be provided by the diagnostic tool used.

Material quality and workmanship

A high-quality BMW 20-pin to OBD2 adapter cable is characterized by robust insulation, precisely manufactured connector housings, and durable contact pins. In workshop environments, cables are frequently exposed to oil, temperature fluctuations, and mechanical stress. A sturdy sheathing prevents cable breaks and ensures long-lasting functionality.

Compatible vehicle types and model years

The BMW 20-pin to OBD2 adapter cable is particularly suitable for BMW vehicles produced before the complete switch to the OBD2 interior interface. This typically applies to models up to approximately 2001, where the 20-pin socket is located in the engine compartment. However, a thorough inspection of the vehicle is recommended, as there may be differences depending on the model and market.

Car model recommendation for using the adapter cable

Suitable BMW models with 20-pin interface

The BMW 20-pin to OBD2 adapter cable is particularly useful for classic BMW models such as the 3 Series E36, the 5 Series E39 (early models), the 7 Series E38, or the Z3. These vehicles typically have the round 20-pin diagnostic port in the engine compartment and benefit from a stable adapter solution for fault diagnosis.

Technically sound recommendation: BMW E39 (early model years)

The BMW 20-pin to OBD2 adapter cable is particularly recommended for the early BMW E39 models up to around 2000. This model combines a complex control unit architecture with the classic 20-pin diagnostic connector. Since maintenance and diagnostic work on the engine, ABS, and comfort control units is frequently required on the E39, the adapter cable offers an economical and practical solution for continuing to use modern OBD2 diagnostic tools. Thanks to the robust onboard electronics of the E39, stable data communication via the BMW 20-pin to OBD2 adapter cable is generally trouble-free.

Why not every model is equally suitable

For later BMW models with a fully integrated OBD2 interface in the interior, the BMW 20-pin to OBD2 adapter cable is not required. Similarly, for very early models, it should be checked whether the diagnostic tool used supports the specific BMW protocols. The adapter cable only establishes the physical connection and does not replace manufacturer-specific software support.

Software requirements and diagnostic equipment

For successful diagnostics using the BMW 20-pin to OBD2 adapter cable, a suitable OBD2 diagnostic tool that supports BMW-specific systems is required. Universal OBD2 scanners with only EOBD support may only be able to access the engine control unit (ECU). Professional workshop tools with extended BMW protocols, on the other hand, allow access to multiple control units and offer advanced functions such as coding and adaptations.

Differentiation from active interface modules

Unlike active diagnostic interfaces, the BMW 20-pin to OBD2 adapter cable contains no electronic signal processing. It is a purely passive adapter solution. This reduces the risk of software incompatibilities, provided the diagnostic tool itself is compatible. However, this also means that the quality of the connection depends directly on the mechanical and electrical workmanship.

Advantages for independent workshops

Independent garages particularly benefit from the BMW 20-pin to OBD2 adapter cable, as older BMW vehicles still require regular servicing. Instead of maintaining separate, older diagnostic equipment, the adapter cable allows for the flexible use of existing diagnostic technology. This reduces investment costs and increases workflow efficiency.

Typical everyday use cases

In practical use, the BMW 20-pin to OBD2 adapter cable is frequently used for sporadic faults, ABS warning lights, or engine malfunctions. The adapter cable also allows for a quick check of stored fault codes when preparing for vehicle inspections. Regular diagnostics are particularly useful for vehicles with higher mileage to prevent consequential damage early on.

Safe connection and handling

When connecting the BMW 20-pin to OBD2 adapter cable, ensure the ignition is switched off. Insert the round 20-pin connector in the engine compartment and lock it securely in place. Then connect it to the OBD2 diagnostic tool. Following the correct sequence minimizes the risk of communication errors or voltage problems.

Technical evaluation and long-term benefits in everyday diagnostic practice

The BMW 20-pin to OBD2 adapter cable offers a technically simple yet highly effective solution for diagnosing older BMW vehicles. Its precise transmission of relevant signals allows the continued use of modern OBD2 diagnostic tools in vehicles with a 20-pin OBD1 interface. For workshops and discerning vehicle owners, it provides a cost-effective addition to existing diagnostic equipment. Combined with a suitable, BMW-compatible diagnostic tool, it creates a reliable foundation for professional fault analysis and maintenance support.
