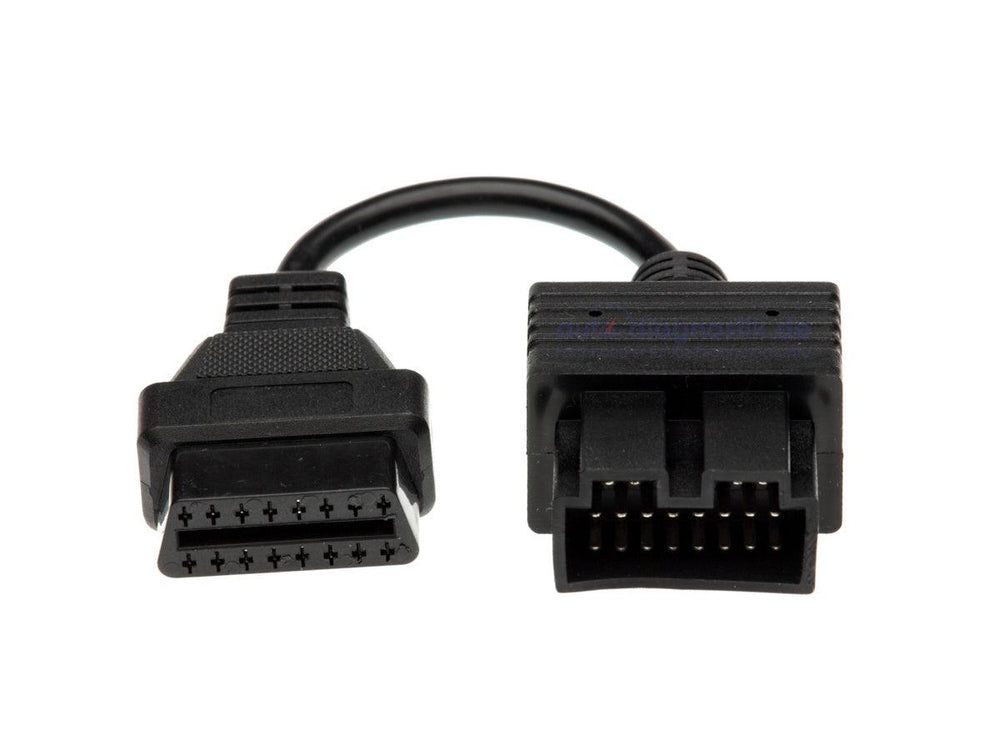

Kia 20Pin OBD1 adapter plug to 16Pin OBD2 diagnostics

Kia 20-pin to OBD2 adapter cable – High-quality diagnostic cable for Kia vehicles

Our Kia 20-pin to OBD2 adapter cable is specifically designed for Kia vehicles with a 20-pin OBD1 interface and enables a stable connection to modern OBD2 diagnostic tools. The adapter cable is ideal for workshops and Kia owners who require precise and reliable diagnostic capabilities.

Product features:

• Compatibility: Works with all Kia vehicles that have a 20-pin OBD1 interface.
• Connection: Kia 20-pin plug to OBD2 16-pin socket
• High-quality workmanship and durable materials for long-lasting use.

Please note that this item is an adapter , not a scanner . The adapter connects Kia vehicles with a 20-pin OBD1 interface to modern OBD2 diagnostic devices, thus ensuring accurate vehicle diagnostics.

Before purchasing, check if your vehicle has a 16-pin diagnostic connector under the dashboard to ensure cable compatibility.

Why this Kia 20-pin to OBD2 adapter cable?

Our adapter cable offers a cost-effective and robust solution for diagnosing Kia vehicles with a 20-pin OBD1 connector. Thanks to its high-quality construction and reliable connection, it is ideally suited for long-term use in both professional and private settings.

Technical background of the 20-pin OBD1 interface

Before the widespread adoption of the OBD2 standard, many manufacturers, including Kia, used manufacturer-specific diagnostic interfaces. The 20-pin OBD1 interface served for communication between the vehicle's control unit and diagnostic testers. This involved the use of vehicle-specific protocols that are not readily compatible with modern OBD2 devices.

The Kia 20-pin to OBD2 adapter cable does not perform any protocol conversion; it simply establishes the physical connection between the older diagnostic connector and a standardized OBD2 socket. The actual communication still takes place via the diagnostic tool used, which must support the relevant protocols.

Difference between OBD1 and OBD2

OBD1 systems were not standardized and differed significantly in pin assignment, signal routing, and communication protocol depending on the manufacturer. OBD2, on the other hand, is standardized and uses a 16-pin connector with defined diagnostic protocols such as ISO 9141-2 or KWP2000. This is precisely where the adapter cable comes in: It provides the mechanical and electrical basis for connecting older Kia models to modern diagnostic systems.

Workshop benefits in daily use

Independent garages regularly face the challenge of economically diagnosing older vehicles. Instead of maintaining a separate diagnostic tool for older vehicles, the Kia 20-pin to OBD2 adapter cable allows them to use existing OBD2 diagnostic testers. This reduces investment costs and simplifies the workshop process.

In practical terms, this means: connecting the vehicle, connecting the diagnostic device, reading the control units, interpreting the fault codes, and initiating targeted repair measures. Especially with sporadic faults in the engine control, ignition, or injection systems, structured diagnostics offer significant advantages over purely mechanical troubleshooting.

Areas of application and target groups

The adapter cable is aimed at different user groups:

• Independent car repair shops with a mixed vehicle fleet
• Specialized companies for Asian vehicles
• Classic and vintage car enthusiasts with Kia models from the 1990s and early 2000s
• Technically skilled private users with their own diagnostic device

This product is particularly interesting for businesses that regularly service vehicles outside the current OBD2 standard. The adapter cable enables a seamless diagnostic strategy without system interruptions.

Build quality and electrical stability

A diagnostic adapter is only as reliable as its mechanical and electrical design. High-quality contact pins ensure stable signal transmission, even with repeated plugging and unplugging. A clean crimp connection and strain-relieved cable design prevent contact problems in everyday workshop use.

The robust insulation protects against mechanical damage, oil, and dirt. This is crucial, especially in professional environments, where diagnostic work is often carried out under time pressure and the equipment is subjected to regular use.

Software requirements and compatibility

Since the Kia 20-pin to OBD2 adapter cable itself does not perform protocol conversion, the diagnostic tool used must support the corresponding Kia-specific communication protocols. Universal OBD2 scanners with only EOBD functionality are not always sufficient.

Diagnostic devices with extended manufacturer access are recommended, which can address not only the engine control unit but also other control units such as ABS or airbag, provided these can be diagnosed via the 20-pin interface in the respective model.

Practical example: Fault diagnosis on an older Kia model

A typical scenario is the engine warning light illuminating in a Kia from the late 1990s. Without a suitable interface, manual troubleshooting is the only option. However, with the Kia 20-pin to OBD2 adapter cable, a compatible diagnostic tool can be connected. The fault code is read, analyzed, and the necessary repairs can then be carried out.

This saves time, avoids unnecessary parts replacement, and sustainably increases the repair quality.

Recommended car models for use with this adapter cable

Suitable Kia models with 20-pin OBD1 connector

This adapter cable is particularly suitable for older Kia vehicles that do not yet have a standardized OBD2 interface. These include, among others:

• Kia Clarus (first generation)
• Kia Sephia (first and early second generation)
• Kia Sportage (first generation, depending on the year of manufacture)
• Kia Pride (late models with electronic engine management)

Technically highly recommended: Kia Sportage I

The Kia Sportage I stands out as a particularly suitable platform. Depending on the year of manufacture, this model features the 20-pin OBD1 interface and offers good diagnostic accessibility thanks to its comparatively robust electronic architecture.

Especially with the Sportage I, age-related issues often arise with sensors, fuel mixture preparation, or the ignition system. Using the Kia 20-pin to OBD2 adapter cable in conjunction with a manufacturer-specific compatible diagnostic tool, fault codes can be read systematically and addressed. Due to the wide availability of spare parts and the clear system architecture, this model is particularly well-suited for diagnostic and repair work.

Differentiation from newer models

Newer Kia vehicles that have undergone a complete OBD2 conversion do not require this adapter cable, as they already have a standard 16-pin connector. Therefore, the adapter is only useful for vehicles with a dedicated 20-pin OBD1 interface.

Instructions for safe use

The ignition should be switched off before connecting. The 20-pin connector should be positioned correctly and connected without excessive force. The OBD2 diagnostic tool can then be connected to the 16-pin socket of the adapter.

During diagnostics, ensure a stable power supply to the vehicle. For longer diagnostic processes, using a battery charger to stabilize the voltage and prevent communication interruptions is recommended.

Economic advantages for workshops

Investing in a high-quality Kia 20-pin to OBD2 adapter cable pays for itself after just a few uses. Instead of maintaining a separate, older diagnostic tool, existing equipment can be reused. This increases the utilization of existing diagnostic hardware and reduces capital tied up in new equipment.

Furthermore, the workshop is expanding its service portfolio and can also professionally service older Kia models without having to resort to external service providers.

A technically sound solution for diagnosing older Kia vehicles

The Kia 20-pin to OBD2 adapter cable represents a practical, technically sound, and economically efficient solution for diagnosing older Kia vehicles. It connects legacy vehicle interfaces with modern diagnostic technology, thus bridging the gap between two vehicle generations.

For workshops, specialized businesses and demanding private users, this adapter cable provides the necessary basis to carry out precise, reproducible and professional diagnoses – without compromising on stability or quality.
