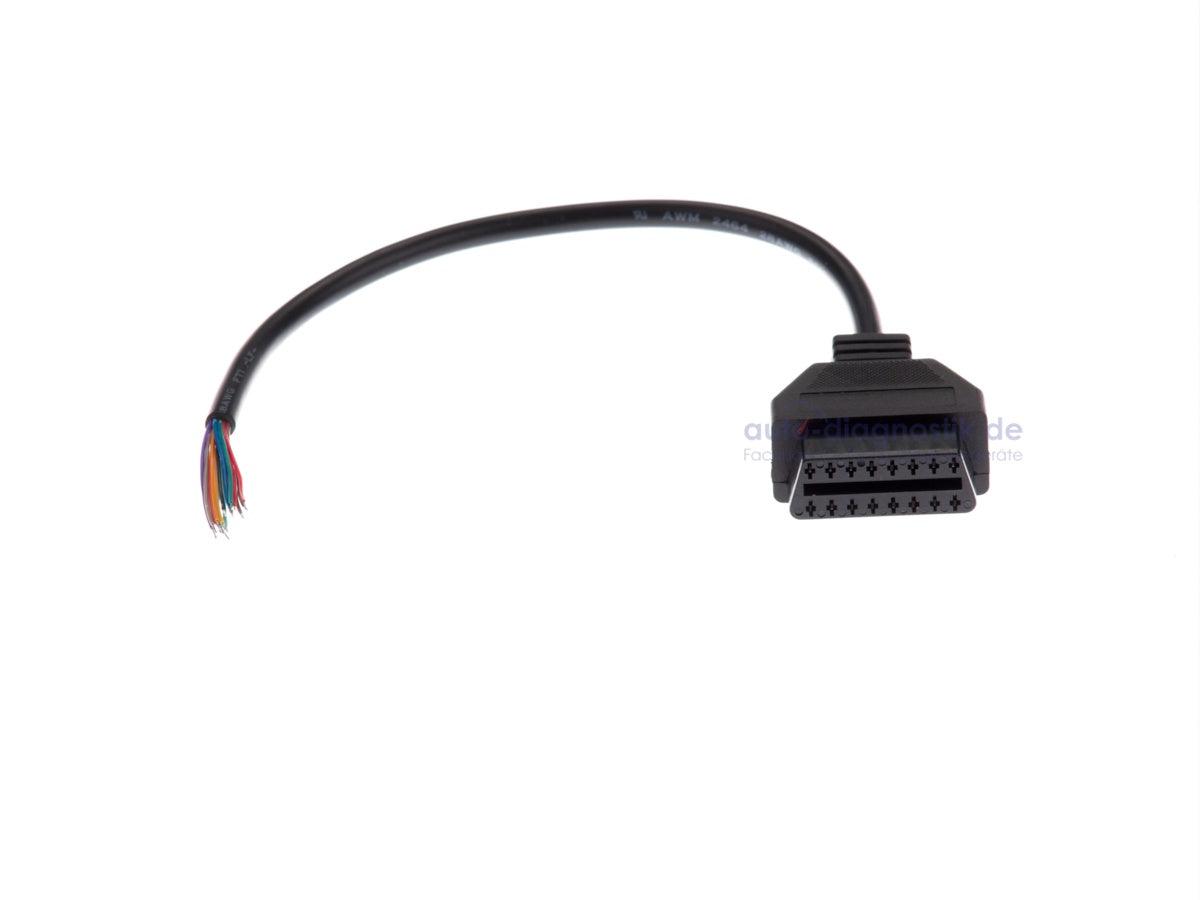

OBD2 16-pin adapter cable with open wires – Versatile for custom circuits
Our OBD2 16-pin adapter cable with exposed wires is ideal for anyone who wants to work on their own circuits and modifications. The cable offers the flexibility to create custom connections and is suitable for both vehicle diagnostics and DIY projects.
Product features:
- Compatibility: Works with all vehicles that have a 16-pin OBD2 interface.
- Connection: OBD2 16-pin connector with open wires for flexible wiring
- High-quality materials for reliable use in DIY projects
Please note that this item is an adapter , not a scanner . It is ideal for DIY applications requiring custom circuitry and connections.
Before purchasing, please ensure your vehicle has a 16-pin diagnostic connector under the dashboard to guarantee adapter cable compatibility.
Why this OBD2 16-pin adapter cable with exposed wires?
This adapter cable offers a versatile and cost-effective solution for users who want to implement their own circuits. The high quality of the exposed conductors allows for flexible adaptations and makes the cable ideal for use in various projects.
Technical basics of the OBD2 interface
Pin assignment and signal types
The 16-pin OBD2 interface is internationally standardized and defines both the mechanical form of the connector and the basic pin assignment. Typically, pins are used for power supply (pin 16 = +12V, pins 4 and 5 = ground) as well as for communication protocols such as CAN (pins 6 and 14), K-Line (pin 7), or L-Line (pin 15). An OBD2 16-pin adapter cable with bare wires allows direct access to these signal lines, which is particularly important in development or retrofit projects.
Supported communication protocols
Modern vehicles predominantly use CAN bus-based protocols (ISO 15765-4). Older models sometimes still rely on ISO 9141-2 or SAE J1850. The OBD2 16-pin adapter cable itself only provides the physical connection and does not actively interfere with signal processing. This makes it suitable for customized interface solutions, such as for integrating external control units or data loggers.
Power supply and protection
Special care is required when working with exposed wires. The 12V vehicle electrical system can cause short circuits if handled improperly. It is recommended to integrate external fuses or current limiters, especially when connecting custom circuits. The OBD2 16-pin adapter cable provides the basis for a professional, individually protected solution.
Practical benefits in workshop and development
Diagnostic enhancements and prototyping
In specialized workshops, the OBD2 16-pin adapter cable is frequently used to connect additional measuring devices or development boards between the vehicle and the diagnostic interface. Developers can, for example, connect microcontroller-based systems to analyze or selectively evaluate CAN telegrams.
Retrofits and special solutions
For retrofit projects, such as the integration of fleet management systems or telematics modules, the OBD2 16-pin adapter cable serves as a flexible interface. Open wires facilitate direct connection to screw terminals, solder joints, or industrial connector systems.
Troubleshooting at the line level
In complex diagnostic cases, it may be necessary to test individual wires. By disconnecting and selectively tapping into specific pins, the OBD2 16-pin adapter cable enables a systematic analysis of power supply and communication lines without permanently modifying the vehicle's wiring harness.
Hardware and software aspects
Integration with diagnostic interfaces
The OBD2 16-pin adapter cable can be used with standard OBD2 interfaces, such as ELM327-based modules or professional multi-brand testers. The adapter cable is connected between the vehicle and the interface, allowing access to additional measurement points.
Use with CAN analysis tools
In conjunction with CAN-USB adapters and appropriate software, data streams can be evaluated in real time. Developers use this to validate their own control units or to analyze proprietary communication structures. The OBD2 16-pin adapter cable ensures the mechanical and electrical connection.
Mechanical quality and conductor cross-section
High-quality materials and adequately sized conductor cross-sections are crucial for reliable signal transmission. Especially with CAN signals, clean cable routing is important to minimize interference. Therefore, the OBD2 16-pin adapter cable should be robust not only electrically but also mechanically.
Car model recommendation for practical applications
Suitable vehicle models with an easily accessible OBD2 interface
The OBD2 16-pin adapter cable is generally compatible with all vehicles equipped with a standardized OBD2 port. It is particularly suitable for development and diagnostic purposes, especially for models with a widely used CAN architecture and good documentation.
Examples include:
- Volkswagen Golf VII (MQB platform)
- BMW 3 Series F30
- Ford Focus Mk3
- Audi A4 B8
Technically highly recommended: Volkswagen Golf VII
The Volkswagen Golf VII stands out as a particularly suitable platform. Its MQB architecture offers a clearly structured CAN topology with well-documented diagnostic addresses. This makes it ideal for development work using the OBD2 16-pin adapter cable. The OBD2 port is ergonomically positioned below the dashboard and easily accessible, simplifying repeated measurements and modifications. Furthermore, a wide range of diagnostic and coding software is readily available, further enhancing its practical value.
Safety and application instructions for professional use
Protection against short circuits and incorrect wiring
Since the OBD2 16-pin adapter cable is supplied with bare wires, proper insulation is absolutely essential. Any unused wire should be properly insulated to prevent accidental short circuits. For development projects, the use of heat-shrink tubing or insulated terminal blocks is recommended.
Operates only with the ignition switched off.
To avoid damage to the control unit, modifications or connection work should only be carried out with the ignition switched off. Especially in modern vehicles with sensitive CAN gateways, improper handling can lead to fault codes or communication interruptions.
Documentation and traceability
In professional settings, thorough documentation of all connections is recommended. This not only facilitates troubleshooting but also ensures that subsequent work remains traceable. Therefore, the OBD2 16-pin adapter cable should always be part of a structured workflow.
Practice-oriented evaluation and application recommendation
The OBD2 16-pin adapter cable with open wires is not a diagnostic device, but a technically flexible interface solution. Its added value lies in its individual adaptability and direct access to all relevant pins of the OBD2 socket. For workshops, developers, retrofit specialists, and ambitious users, it offers a solid foundation for professional, custom solutions.
In conjunction with suitable vehicle platforms such as the Volkswagen Golf VII and with proper wiring, the OBD2 16-pin adapter cable represents an economical yet technically sophisticated solution. Its strength lies in the system's openness – and therein lies the user's responsibility for correct implementation.
