Hantek TO1112D Touch-Screen Digital Oscilloscope 2 Channels 110 MHz
Description
Description

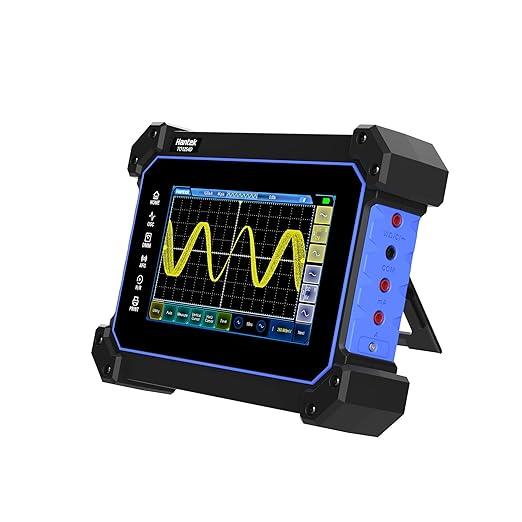

Hantek TO1112D – Handheld Touchscreen Digital Oscilloscope with 2 channels (110 MHz) and integrated multimeter and signal source
The Hantek TO1112D is a portable, multifunctional touchscreen oscilloscope from the TO1000 series, combining an oscilloscope, multimeter, signal generator, and spectrum analyzer in a single compact device. With its rugged, portable design and high 110 MHz bandwidth, this instrument is ideal for fast and accurate measurement and analysis. Its versatile functionality and long-lasting, high-capacity battery make it a reliable solution for professionals in laboratories, educational institutions, and other technical fields.
By combining multiple measuring instruments into a single handheld device, the Hantek TO1112D is particularly well-suited for mobile diagnostics, maintenance work, and rapid on-site analysis. Users can measure, analyze, and simulate electrical signals without having to carry multiple individual devices. This compact design not only reduces the space required in a toolbox but also significantly simplifies the workflow for electronic measurements.
Key features of the Hantek TO1112D

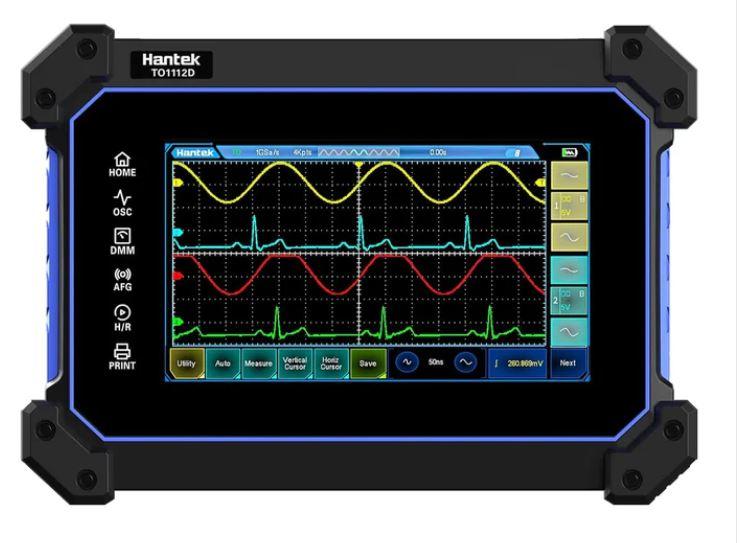

- Multi-touchscreen display: Large screen with 800x480 resolution for a clear and user-friendly interface.
- Bandwidth and sampling rate: 110 MHz bandwidth and 1GSa/s sampling rate with 8M memory depth for detailed measurements
- Multimeter with data logging: High-precision measurements of voltage, current, resistance and more, with memory and analysis functions
- Signal generator: Built-in arbitrary waveform generator, output frequency up to 25 MHz

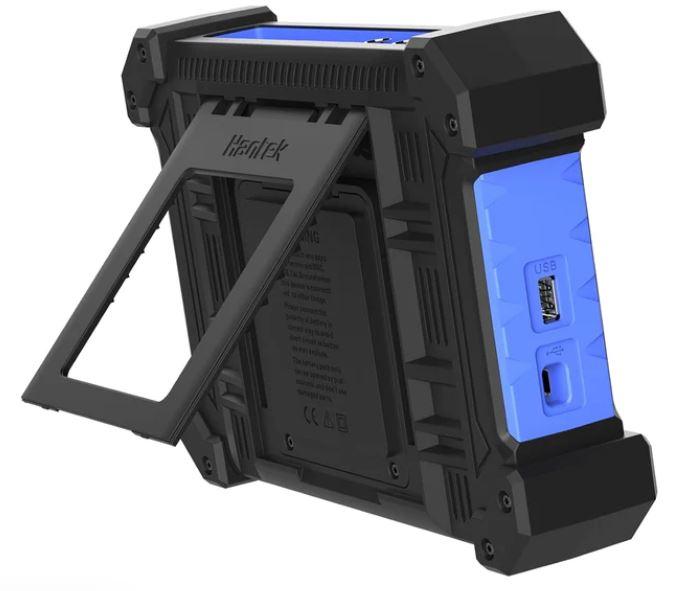

- Unique hanging design: Robust and hands-free use thanks to the innovative hanging base.
- Lithium battery: Built-in, removable 10,000mAh battery for long runtime and standby time of up to six months.
- Fast charging capability: Supports 18W fast charging via Type-C port, compatible with common chargers
High-performance combination of multiple measuring instruments
A particular advantage of the Hantek TO1112D lies in the integration of multiple measurement functions into a single device. Users receive a fully-fledged two-channel digital oscilloscope, a precise multimeter, and a function generator. This allows electrical circuits not only to be analyzed but also directly tested and simulated.
In practice, this means, for example, that a technician can generate a test signal, route it through a circuit, and simultaneously analyze the result with an oscilloscope. This combination reduces measurement errors and saves time in development and diagnostic processes.
Touchscreen operation for fast measurements
The multi-touch display significantly simplifies the operation of the Hantek TO1112D . Users can set measurement ranges, trigger parameters, or time bases directly via the screen. This intuitive control is particularly helpful when measurements are performed under time pressure or in complex technical environments.
The graphical user interface allows for clear display and quick interpretation of signal curves. Especially when troubleshooting electronic systems, a legible display is crucial for immediately identifying interference or unusual signal shapes.
Oscilloscope function and signal processing
Bandwidth and sampling rate in practical use
With a bandwidth of 110 MHz and a sampling rate of up to 1 GSa/s, the Hantek TO1112D offers ample performance reserves for analyzing many electronic signals. These specifications determine how accurately rapid signal changes can be captured and displayed.
A high sampling rate is particularly important when troubleshooting digital circuits or analyzing communication signals. The device can record signal waveforms in detail, making even short pulses or disturbances visible.
Storage depth for extensive signal recordings
The Hantek TO1112D 's 8M memory depth allows it to record even longer signal waveforms. This is advantageous, for example, when analyzing periodic signals or investigating sporadic errors.
This allows engineers and technicians to store complex measurement data and later analyze it in detail. This function is particularly helpful in the development of electronic systems for identifying signal interference or timing problems.
Multimeter function for classic measurement tasks
Measurement of basic electrical quantities
The Hantek TO1112D 's integrated multimeter enables precise measurements of voltage, current, resistance, and capacitance. Additionally, diode testing and continuity testing functions are available.
These functions are particularly useful for diagnosing electronic assemblies or maintaining electrical systems. Users can quickly check whether components are functioning correctly or if a defect exists.
Data recording and analysis
Another advantage of the Hantek TO1112D is its data logging capability. Measurement values can be saved and subsequently analyzed. This is particularly helpful for long-term measurements where values change over an extended period.
This function can also be used in technical training or laboratory experiments to document measurement series and evaluate them later.
Signal generator for testing and simulation tasks
Arbitrary function generator with 25 MHz
The integrated function generator of the Hantek TO1112D can generate signals with frequencies up to 25 MHz. This allows the generation of various signal shapes such as sine, square, or triangle waves.
This function is frequently used in the development of electronic circuits to test the behavior of components under different signal conditions. A function generator is also an important tool in the training of electronics technicians.
Testing of electronic assemblies
The integrated generator allows test signals to be fed into a circuit. The result can then be analyzed with an oscilloscope. This combination makes the Hantek TO1112D a versatile tool for development and diagnostic work.
Typical applications include, for example, checking amplifier circuits, analyzing filter functions, or testing communication interfaces.
Technical data
| category | specification |
|---|---|
| Display | Multi-touch, 800x480 resolution |
| Channels | 2 channels |
| bandwidth | 110 MHz |
| Sampling rate | 1GSa/s |
| Storage depth | 8M |
| Signal generator output | 25MHz maximum frequency, AM/FM modulation |
| Trigger modes | Edge, slope, pulse width, video, timeout and more |
| Multimeter function | AC/DC voltage, current, resistance, capacitance, diode, on-off measurement |
| Battery | 10,000mAh lithium battery, standby time up to six months |
| charger | 18W fast charger, Type-C compatible |
| USB communication | USB 2.0 for power supply and communication |
Software and connectivity options
- Easy-to-install software: Compatible with Windows XP, 7, 8 and 10; ready to use immediately without additional drivers.
- USB communication: USB 2.0 power supply and communication interface, supports plug-and-play.
Data transfer and PC analysis
The Hantek TO1112D can be connected to a computer via its USB interface. This allows measurement data to be exported and further analyzed with external software. This function is particularly useful in laboratory environments or development projects.
Engineers can document recorded signal waveforms and integrate them into reports. This interface also facilitates the exchange of measurement data when collaborating within technical teams.

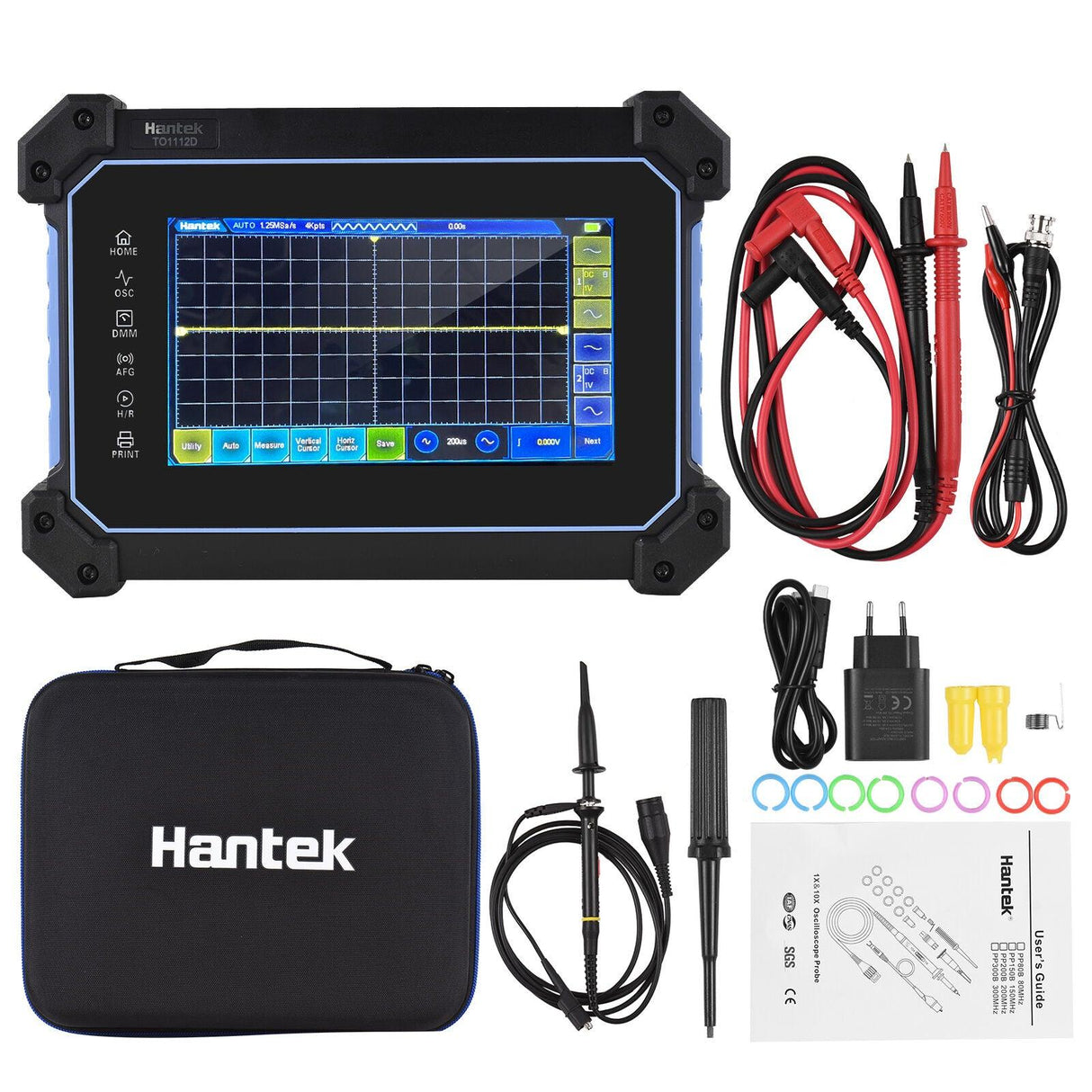

Scope of delivery
- Hantek TO1112D Touchscreen Digital Oscilloscope
- Instruction CD
- Battery terminal connection
Practical benefits of the Hantek TO1112D in technology and education
Use in workshop and development
The Hantek TO1112D is particularly suitable for technicians, engineers, and electronics developers who need a portable and versatile measuring device. In workshops, it can be used for troubleshooting electronic controls, power supplies, or communication interfaces.
The combination of oscilloscope, multimeter, and signal generator allows many diagnostic tasks to be performed with just one device. This reduces the effort required for service work and speeds up the diagnostic process.
Support in education and research
The Hantek TO1112D also offers numerous advantages in educational institutions. Students and trainees can practically learn basic electronics measurement methods and analyze various signal waveforms.
The compact design and intuitive operation make the device particularly suitable for laboratories, training courses and technical training programs.
Mobile measuring system for modern electronics analysis
The Hantek TO1112D combines several professional measuring instruments in a compact handheld device, offering a flexible solution for numerous technical applications. Its high bandwidth, comprehensive measurement functions, and integrated signal source make it suitable for diagnostic work as well as development and training purposes.
With its portable design, powerful hardware and versatile analysis functions, the Hantek TO1112D is a practical tool for anyone who wants to efficiently measure, analyze and understand electronic signals.
