Case, New Holland Steyr diagnostic device Panasonic CF-D1 DPA5 EST year of manufacture 2024

CNH Electronic Service Tool (EST) on Panasonic Toughbook CF-D1 – Professional Diagnostic Platform for CNH Construction and Agricultural Machinery up to Model Year 2024

The CNH Electronic Service Tool (EST) combined with the robust Panasonic Toughbook CF-D1 provides a specialized diagnostic and service platform for modern machines from the CNH group. The system is used in workshops, by mobile service technicians, and in industrial maintenance environments to perform precise vehicle diagnostics, maintenance, and ECU programming.

The diagnostic software was developed for machine brands such as CASE, New Holland, STEYR, CASE IH, and KOBELCO, and supports electronic control systems up to model year 2024. Via standardized CAN-BUS diagnostics, service technicians can directly access electronic control units, read fault codes, analyze system parameters, and perform software updates. In combination with the appropriate hardware, the system forms a complete workshop diagnostic solution for construction machinery, tractors, and industrial utility vehicles.

System Platform: Hardware and Diagnostic Environment

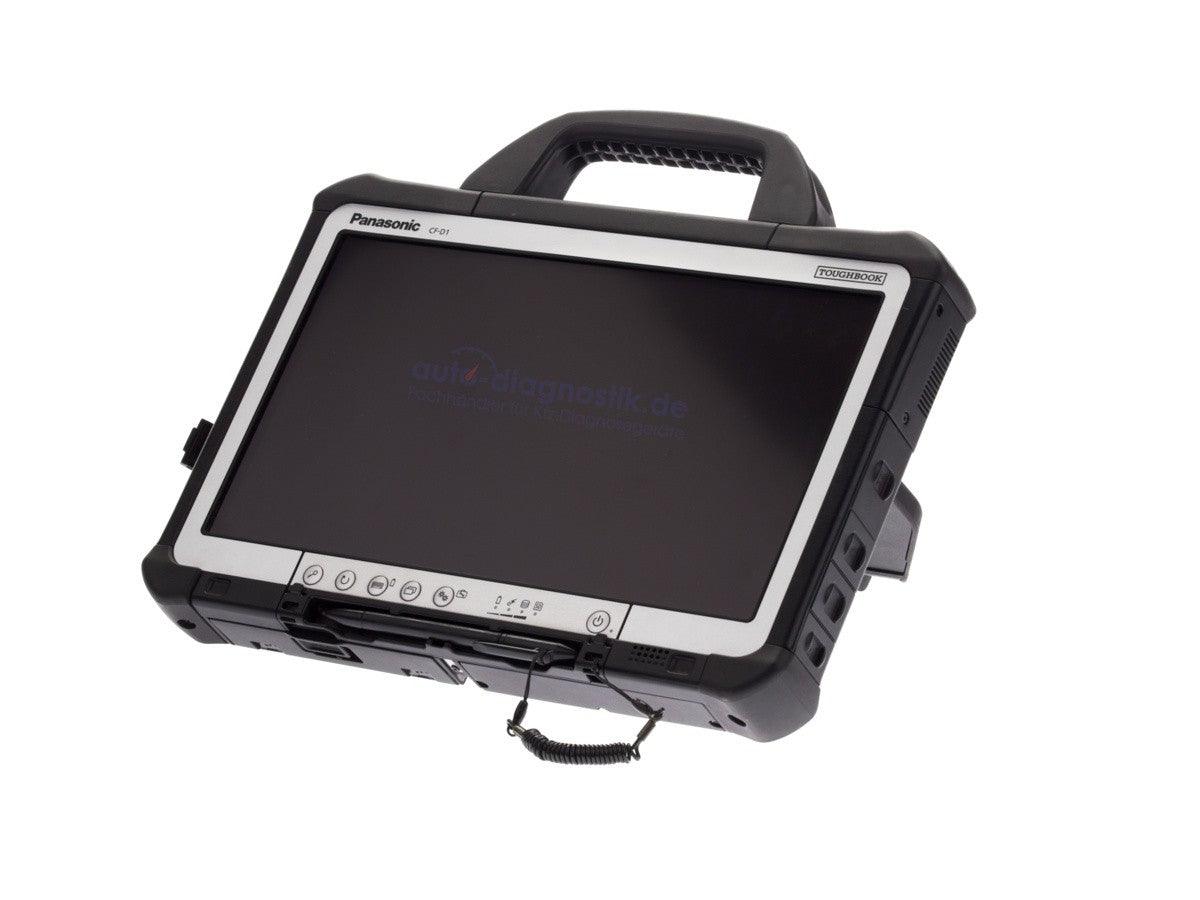

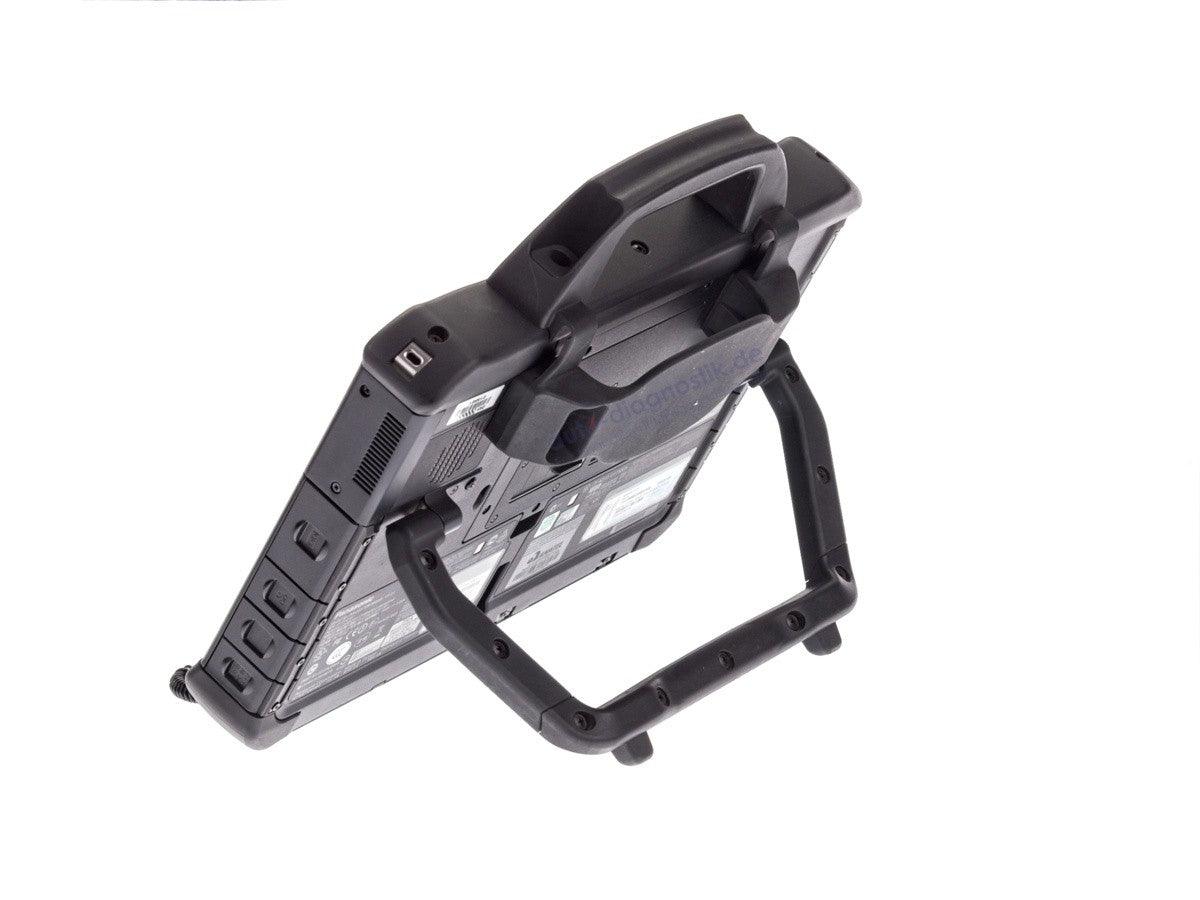

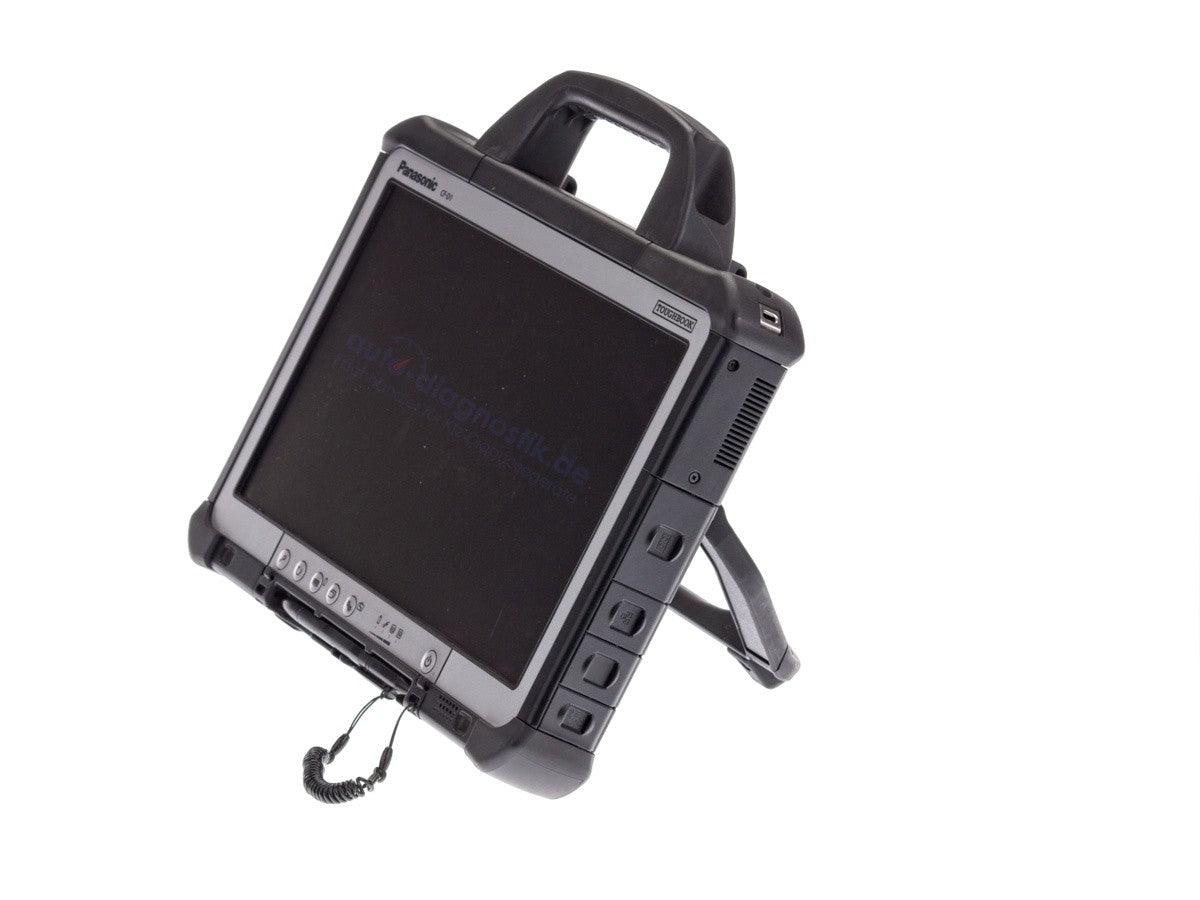

Panasonic Toughbook CF-D1 as a Diagnostic Laptop

The Panasonic Toughbook CF-D1 serves as the central hardware platform for the diagnostic software. This robust industrial laptop was specifically developed for demanding work environments, such as those typically encountered in workshops or directly on construction sites.

Thanks to its shock-resistant housing, vibration-protected design, and a high-brightness touchscreen, the device can be reliably used even under challenging environmental conditions. The screen can be operated even with gloves, which is a significant advantage in mobile service operations.

DPA5 Multiplexer as a Communication Interface

The connection between the diagnostic device and the machine is established via the Dearborn DPA5 Multiplexer. This interface acts as a translation unit between the vehicle-side communication protocols and the diagnostic software on the laptop.

The multiplexer processes various communication standards and ensures stable data transmission between the machine and the diagnostic system. This allows ECUs to be reliably identified and diagnostic data to be transmitted without delay.

Architecture of Modern CNH Control Systems

Networked Control Units in Construction Machinery

Modern construction machinery and tractors feature a complex electronic architecture with numerous interconnected control units. Key systems include:

• Engine control units (ECU)
• Transmission controls
• Hydraulic controllers
• Chassis controls
• Electronic operating modules

These modules communicate with each other via an internal network. The diagnostic device allows central access to all involved components and clearly displays their status.

Hierarchical System Structure

The electronic architecture of many CNH machines is hierarchically structured. A main control unit coordinates several subsystems, each managing its own sensors and actuators. The Electronic Service Tool automatically recognizes this structure and creates a complete system overview when a connection is established.

This allows service technicians to quickly determine which control units are active and which systems may be generating error messages.

Communication Layers and Diagnostic Protocols

CAN-BUS Diagnostics as the Central Communication Level

The majority of modern machines use the Controller Area Network (CAN) as their primary communication interface. This bus system enables fast and robust data transmission between control units.

The diagnostic system supports both:

• High-Speed CAN (500 kbit/s)
• Low-Speed CAN for subsystems

This support allows for the diagnosis of both safety-relevant systems and comfort or auxiliary modules.

Other Supported Communication Standards

In addition to CAN-BUS, the system also processes older communication protocols used in earlier machine platforms. These include, for example:

• K-Line communication
• serial diagnostic interfaces
• manufacturer-specific protocols of older CNH systems

The diagnostic software automatically recognizes the required protocol when connecting and sets up communication accordingly.

Relevant ISO Standards

Many diagnostic functions are based on international standards for vehicle diagnostics and communication interfaces. Key standards include:

• ISO 11898 – CAN-BUS communication standard
• ISO 15765 – Diagnostics over CAN
• ISO 14229 – Unified Diagnostic Services (UDS)

These standards ensure structured communication between the diagnostic device and control units.

Diagnostic Software and Scope of Functions

Comprehensive Vehicle Diagnostics

The diagnostic software enables a detailed analysis of a machine's electronic systems. Service technicians can, among other things:

• Read and clear fault codes
• Monitor sensor values in real-time
• Perform system tests
• Actuate actuators

These functions allow the cause of technical problems to be identified much faster than with conventional testing methods.

Analysis of Live Data

An important component of workshop diagnostics is live data analysis. Numerous system parameters can be monitored simultaneously, such as:

• Boost pressure
• Fuel injection
• Hydraulic pressure
• Temperature values

Deviations from target values can thus be detected early.

ECU Programming and Firmware Management

ECU Flash and Software Updates

A central function of modern diagnostic systems is the ability to program control units. With the Electronic Service Tool, firmware versions can be updated or completely reinstalled.

This is necessary, for example, when:

• a control unit has been replaced
• software errors need to be corrected
• new machine functions are implemented

Engine Download Tool

The integrated Engine Download Tool is used for complex ECU updates. New software versions are directly transferred to the engine control unit. This process is controlled and includes safety mechanisms to prevent interruptions during the flash process.

Safety Mechanisms for Firmware Updates

Diagnostic systems for industrial machines must operate with particular stability. Therefore, programming processes have protection mechanisms against communication failures. Should a connection be interrupted during an update, the process can either be resumed or terminated in a controlled manner.

Additional Modules for Older Machine Platforms

E.A.S.Y-Module

The E.A.S.Y module extends the diagnostic software with functions for older machines whose electronic systems are not yet fully CAN-BUS based. Older engine control units can also be diagnosed and updated via K-Line communication.

This ensures that the diagnostic device remains usable for machines of older model years.

Practical Applications in Workshops and Service Operations

Fault Analysis for Engine Problems

In the event of performance problems or unusual engine behavior, technicians can use the diagnostic software to specifically analyze parameters. For example, the system displays injection quantities, boost pressure, or sensor data, helping to identify component defects more quickly.

Hydraulic Diagnostics

Even hydraulic systems of modern construction machinery are electronically monitored. Pressure sensors, valve controls, and pump parameters can be checked and calibrated via the diagnostic device.

Calibration after Repairs

After replacing certain components, adaptation values often need to be reinitialized. These include, for example:

• Injectors
• Position sensors
• Hydraulic valves

The diagnostic system supports these calibration processes and ensures that the machine subsequently operates correctly.

Comparison with Other Diagnostic Systems

Manufacturer-Specific Systems vs. Universal Diagnostic Devices

Universal diagnostic devices can often perform basic vehicle diagnostics, but quickly reach their limits with complex machine architectures. Manufacturer-specific systems like the CNH Electronic Service Tool, on the other hand, offer significantly deeper access to internal control unit functions.

This particularly includes:

• complete ECU programming
• machine-dependent parameter configuration
• firmware-specific diagnostic functions

For professional workshop diagnostics in agricultural and construction machinery, such specialized systems are therefore usually indispensable.

Typical Machine Models for Use

Compatible CNH Vehicles

The diagnostic software is used in numerous CNH Group machines. These include, among others:

• CASE CX220D Tracked Excavator
• New Holland T7.315 Tractor
• STEYR 6300 Terrus CVT
• New Holland E215C Hydraulic Excavator
• CASE IH Puma 240 CVX

Example: Diagnostics on the CASE CX220D

The CASE CX220D tracked excavator has an extensive electronic architecture with several networked control units. The diagnostic system allows for a complete analysis of the engine control, hydraulic systems, and electronic machine control.

Service technicians can read fault codes, adjust system parameters, and perform software updates.

Benefits for Maintenance, Fleet Management, and Service Organization

The use of a professional diagnostic device significantly increases the efficiency of maintenance processes. Companies with larger machine fleets particularly benefit from the ability to regularly check electronic systems and detect potential malfunctions early.

The combination of diagnostic software, a robust hardware platform, and reliable CAN-BUS diagnostics enables precise analysis of modern machines. Workshops and service technicians thus receive a powerful tool for vehicle diagnostics, ECU programming, and long-term maintenance of complex construction machinery.
