Original VAS6154B ODIS 25 Engineering 19 Panasonic CF-53 VW Skoda Audi Seat 2025
✓ High reliability and long service life
✓ Easy handling and user-friendliness
✓ Fast and competent customer service
✓ 12 months warranty
Original VAS6154B ODIS 25 Engineering 19 Panasonic CF-53 VW Skoda Audi Seat 2025 is backordered and will ship as soon as it is back in stock.
Description
Description
Original VAS6154B diagnostic tool with Panasonic Toughbook CF-53 (refurbished) – ODIS Service 25 & ODIS Engineering 19
The VAS6154B diagnostic tool, in combination with the Panasonic Toughbook CF-53, forms a complete OEM diagnostic environment for Volkswagen Group vehicles. The unit comes with pre-installed ODIS software and is ready for immediate use – without any additional configuration steps.
The interface included in the set is the current B version with DOIP (Diagnostics over IP) support . This also covers the newer vehicle platforms of the Volkswagen Group, which rely on Ethernet-based communication protocols. Vehicles of more recent model years can no longer be fully diagnosed without DOIP, as flashing processes, guided diagnostics, or control unit initialization would otherwise be aborted or not even start.
Supported vehicle brands
- Volkswagen
- Audi
- Skoda
- Seat
- Bentley
- Lamborghini
- Bugatti
- MAN
- Volkswagen Commercial Vehicles
Technical relevance for new vehicle platforms
Newer vehicle architectures increasingly utilize Ethernet-based communication channels and UDS-based control units . The VAS6154B interface supports not only classic protocols such as K-Line and CAN, but also CAN-FD and DOIP , and is therefore designed for workshop use in future model years.
Protocol coverage
- K-Line
- CAN
- CAN-FD
- UDS (ISO 14229)
- DoCAN
- DOIP (Diagnostics over IP)
Software scope
- ODIS Service 25 (pre-installed)
- ODIS Engineering 19 (pre-installed)
Technical specifications of the VAS6154B diagnostic device
| Characteristic | Details |
|---|---|
| Model | VAS6154B (new, DOIP-capable) |
| Protocols | K-Line, CAN, CAN-FD, DoCAN, UDS, DOIP |
| communication | USB 2.0 High Speed / Fast Ethernet |
| Diagnostic software | ODIS Service 25 & ODIS Engineering 19 |
| power supply | 8–18V via vehicle connector |
| Temperature range | Storage: -20°C to +85°C / Operation: -20°C to +40°C |
Technical specifications Panasonic Toughbook CF-53
| Characteristic | Details |
|---|---|
| processor | Intel Core i5, 2.6 GHz |
| RAM | 8 GB DDR3 |
| memory | 512 GB SSD |
| Screen | 13.3" XGA Display, suitable for outdoor use |
| operating system | Windows 10 Pro (pre-installed) |

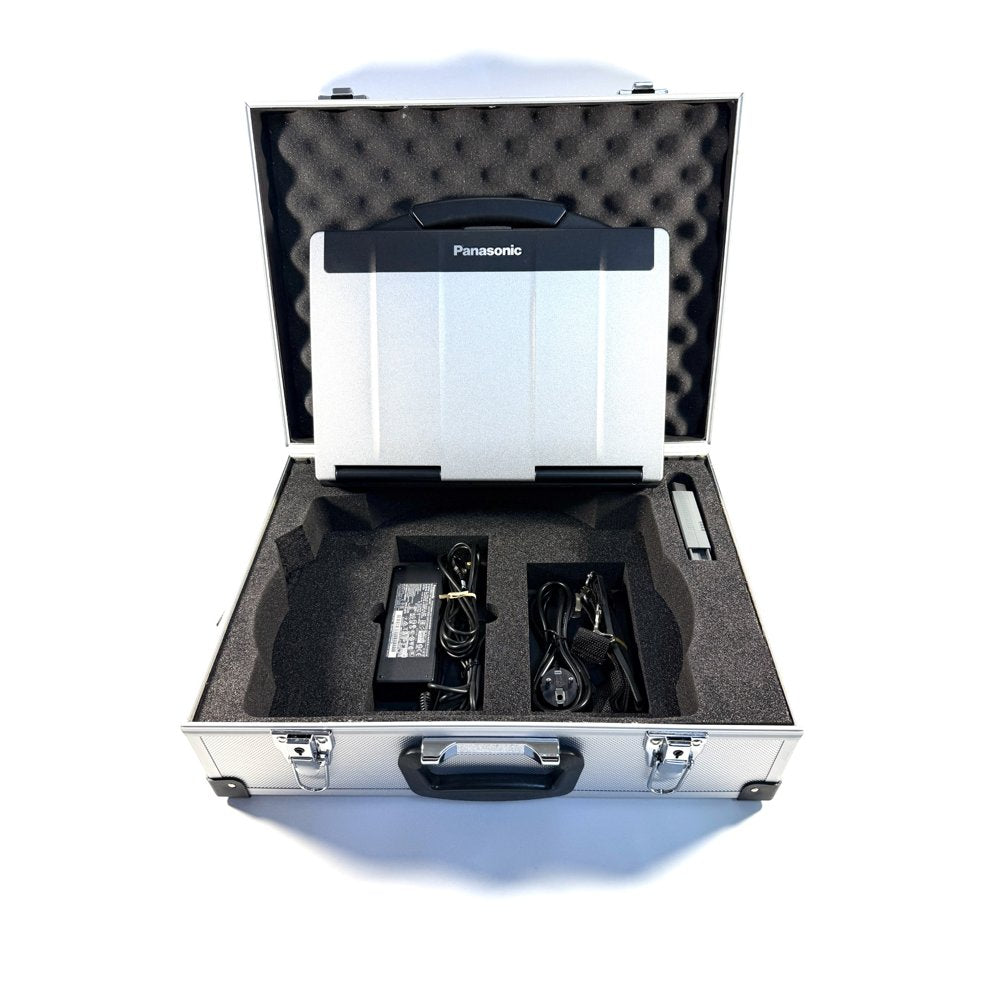

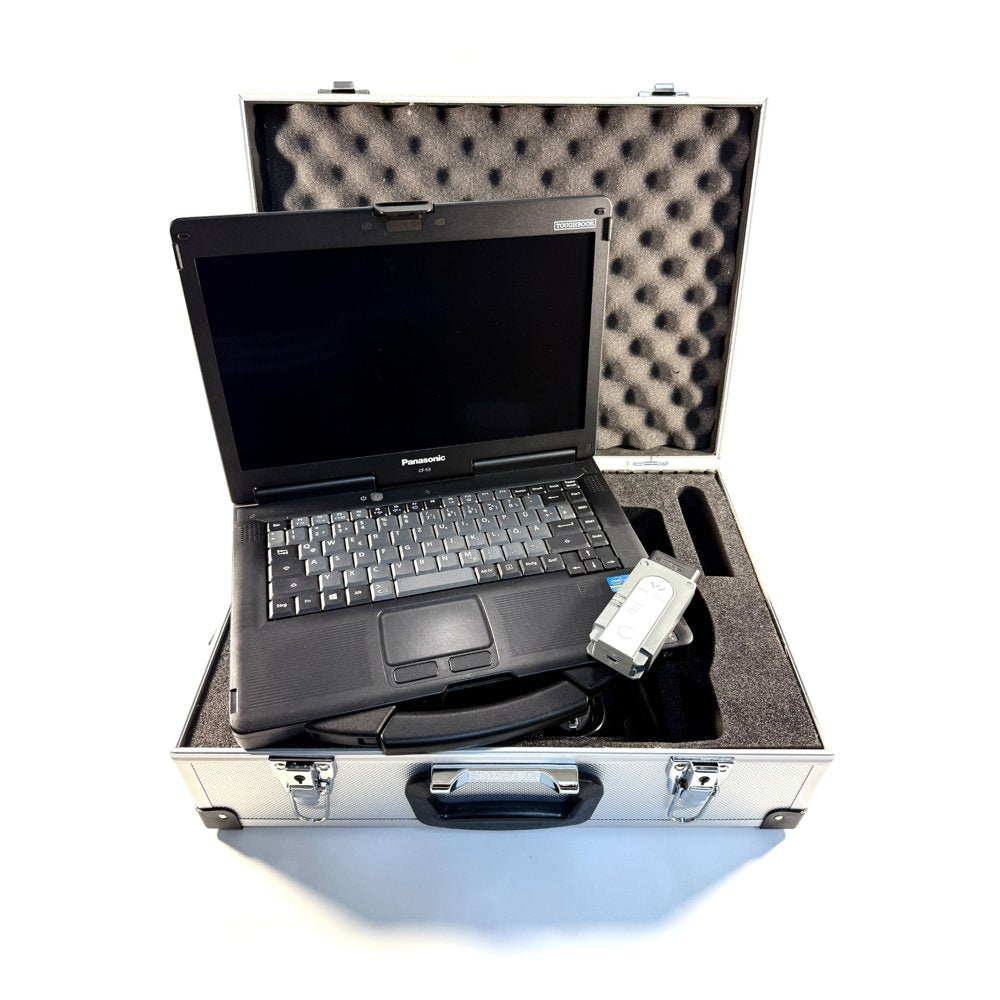

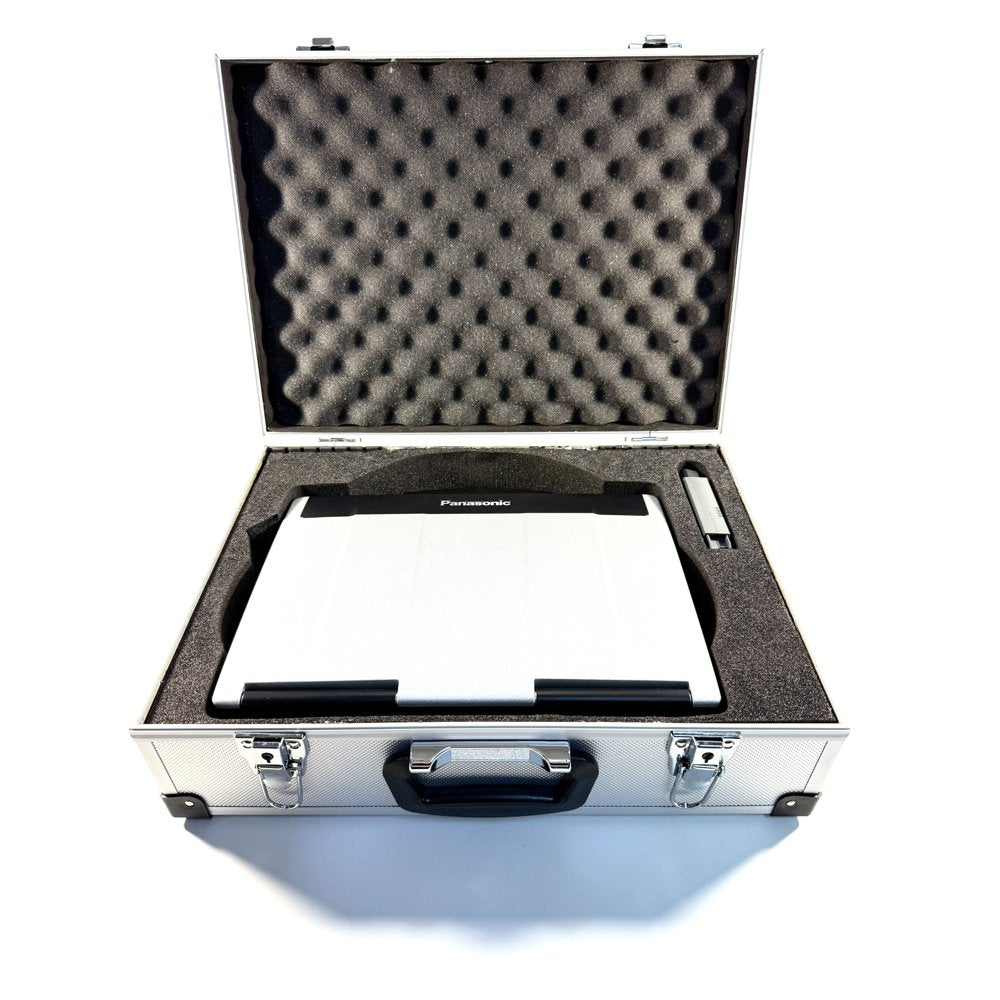

Scope of delivery
- Panasonic CF-53 Toughbook (refurbished, 8GB RAM, 512GB SSD)
- VAS6154B Diagnostic Interface (new, DOIP-capable)
- Mini USB cable
- ODIS Service 25 & Engineering 19 (pre-installed)
- Transport case with foam insert
Area of application
For workshops, diagnostic service providers and mobile technicians who need a complete OEM diagnostic environment and also have to cover future vehicle generations.
Architecture and Functionality of the VAS6154B
Gateway communication and vehicle access
The VAS6154B acts as an intelligent gateway between the vehicle and the diagnostic computer. It handles protocol translation, buffer storage, and prioritization of diagnostic messages before forwarding them to ODIS. In modern vehicles with a central diagnostic gateway (central control unit for diagnostic access), the interface ensures that all buses – from CAN and CAN-FD to Ethernet – can be addressed correctly.
This function is particularly crucial for MQB, MLB evo, and PPE platforms, as multiple domain control units communicate in parallel. The VAS6154B synchronizes these data streams, prevents packet loss, and enables stable long-term sessions, such as during software updates or guided troubleshooting.
DOIP implementation and network behavior
DOIP (Diagnostics over IP) uses an Ethernet-based protocol that enables significantly higher data rates than traditional CAN diagnostics. The VAS6154B establishes a TCP/IP connection to the vehicle and acts as a diagnostic server for ODIS. This is particularly important for flash programming of large control units such as infotainment systems, gateways, or driver assistance systems.
In practice, this means that workshops benefit from significantly shorter programming times and more stable connections. The interface automatically manages session timeouts, packet fragmentation, and prioritization, ensuring a reliable connection even in environments with fluctuating network quality.
Workshop benefits and practical examples
Guided diagnosis in everyday life
In daily workshop operations, the system enables structured troubleshooting. ODIS Service guides the technician step by step through test routines, actuator tests, and measured value analyses. The VAS6154B ensures that all relevant control units are addressed correctly, even when multiple buses are active simultaneously.
Typical use cases include sporadic errors in driver assistance systems, communication problems between the gateway and infotainment system, or CAN bus errors. The interface allows for precise bus monitoring and protocol analysis, which significantly speeds up fault diagnosis.
ECU programming and flashing processes
Stable communication is crucial for software updates and coding. The VAS6154B minimizes interruptions through integrated error handling and intermediate storage of diagnostic data. This advantage over simple OBD interfaces is particularly evident during lengthy flashing processes, such as those involving transmission control units or onboard power supply control units.
In combination with the CF-53, workshops can also perform complex programming jobs without having to connect external computers. The robust hardware ensures that processes run reliably even in dusty or temperature-sensitive environments.
Areas of application and target groups
Independent workshops
Independent workshops benefit from a near-OEM-level diagnostic system without the need for expensive manufacturer contracts. The set covers both older vehicles with K-Line and modern DOIP vehicles, ensuring long-term usability.
Specialized diagnostic service providers
For companies specializing in electronic diagnostics, coding, or retrofitting, the system offers the necessary stability and protocol depth. The combination of ODIS and VAS6154B is indispensable, especially for complex modifications or software adaptations.
Mobile technicians
Thanks to the robust CF-53, the system is also suitable for outdoor use. Vibrations, dust, or fluctuating temperatures do not pose a serious limitation for the device, which significantly facilitates mobile use.
Software and hardware aspects in detail
ODIS Service vs. ODIS Engineering
ODIS Service is primarily designed for diagnostics, maintenance, coding, and guided repair processes. It offers a structured interface that guides workshops through complex testing procedures. ODIS Engineering, on the other hand, focuses more on development, deep coding, and advanced ECU functions.
The combination of both versions enables both standardized workshop processes and extended interventions in vehicle architectures, making the system particularly flexible.
Performance of the Panasonic CF-53
The integrated Intel Core i5 processor provides sufficient computing power for parallel diagnostic sessions. The 8 GB of RAM enable the simultaneous operation of multiple ODIS modules without any performance degradation.
The 512 GB SSD ensures fast loading times and stable data processing, which is particularly advantageous for large flash files or extensive log analyses.
Car model recommendation
Suitable models at a glance
The system is particularly suitable for modern vehicles with DOIP architecture. These include, among others, the Volkswagen Golf VIII, the Audi A6 C8, the Skoda Octavia IV, the Seat Leon IV, and the Volkswagen ID.4. These models are based on current platforms with Ethernet diagnostics and absolutely require a DOIP-compatible interface.
Technically recommended model selection
From a technical standpoint, the Audi A6 C8 is clearly the recommended model for the optimal use of this system. This vehicle utilizes a complex electronic architecture with multiple Ethernet domains, numerous driver assistance systems, and regular software updates.
The VAS6154B truly shines when it comes to coding, ECU flashing, and comprehensive guided diagnostics. The combination of DOIP stability, ODIS integration, and powerful hardware makes the system particularly well-suited for this model and ideal for workshop use.
Long-term workshop capability
Future security
Thanks to support for CAN-FD and DOIP, the system remains relevant for future vehicle generations. Manufacturers are increasingly migrating to Ethernet-based diagnostic structures, meaning that older interfaces without DOIP will reach their limits in the medium term.
economy
Purchasing this set is a sustainable investment for workshops, as it covers both current and future models. At the same time, it reduces dependence on manufacturer-specific subscriptions or external diagnostic service providers.
