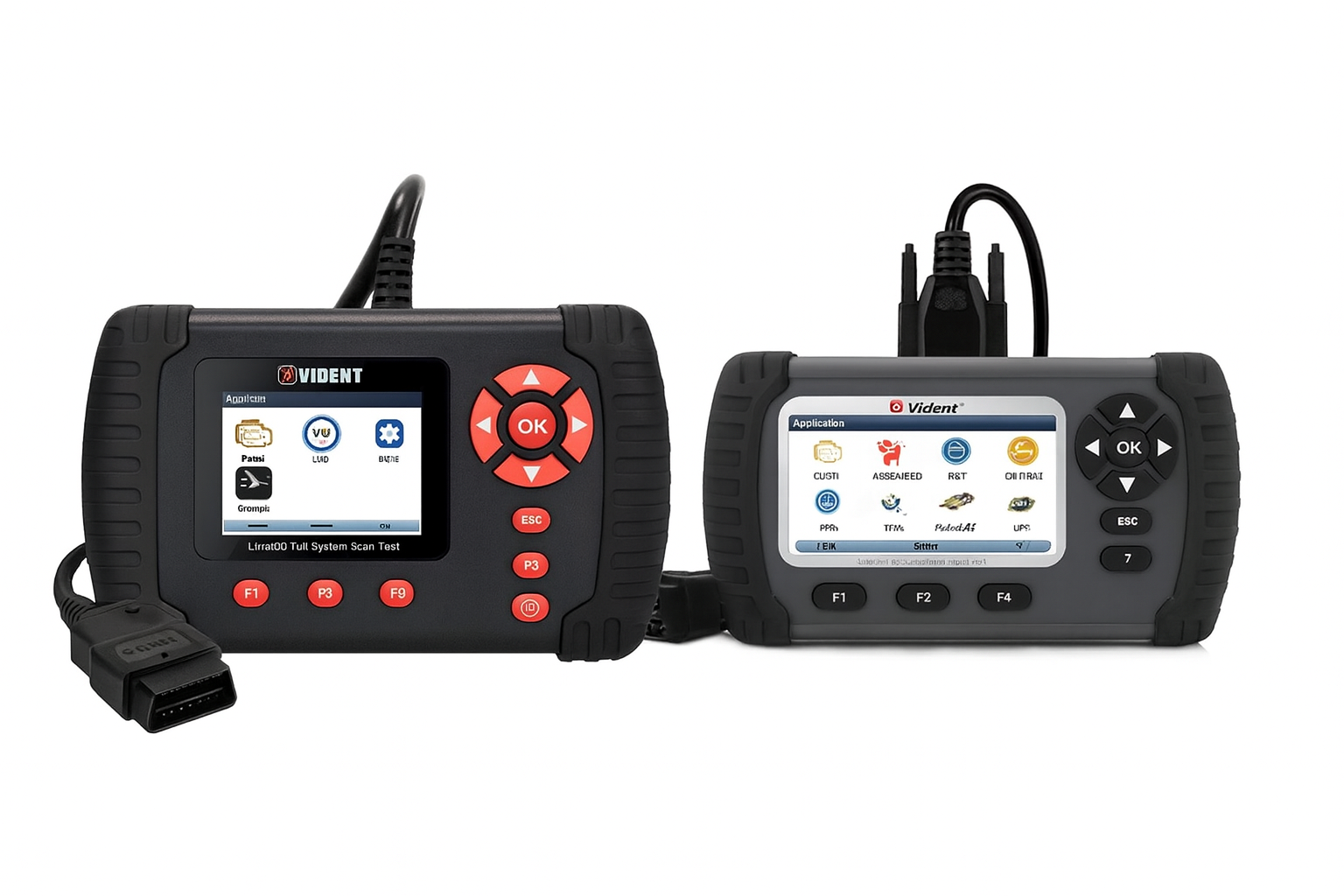

Trouble Code Diagnostics with Vident iSmart 810 & iSmart 900
A modern passenger car has numerous control units that record data in the background and, in the event of a malfunction, store a so-called trouble code. Without a suitable diagnostic device, these errors cannot be clearly identified. The Vident iSmart 810 and Vident iSmart 900 devices provide two professional tools that go far beyond simple code reading and can be reliably used in workshops as well as by ambitious hobby mechanics.
What is a Trouble Code?
A trouble code (DTC – Diagnostic Trouble Code) is a standardized combination of letters and numbers that describes a defect or irregularity in a vehicle system. These codes are defined in international standards such as SAE J2012 or ISO 15031-6. While many trouble codes are identical across all manufacturers, there are also manufacturer-specific codes that apply only to certain brands and models.
Each trouble code contains information about where the fault occurred – for example, in the engine, transmission, exhaust system, or electronics. Professional diagnostic devices such as the Vident iSmart 810 or iSmart 900 can not only display the plain text but also provide additional data that enables precise analysis.
Vident iSmart 810 – Compact and Ideal for Beginners
The iSmart 810 is a diagnostic device specifically designed for private use and regular application. It provides access to the most important control units of a vehicle – from the engine control unit to the airbag module. Trouble codes are displayed in detail, supplemented by live data streams. This makes it possible not only to read the trouble code but also to understand the circumstances under which it was stored.
The iSmart 810 supports important service functions such as oil service reset, electronic parking brake (EPB), battery adaptation, or steering angle sensor calibration. For users looking for a reliable, compact solution, this diagnostic device is a cost-effective yet powerful choice.
Trouble Code Types with iSmart 810
- Stored Trouble Codes (Present/Current Codes): persistently stored malfunctions.
- Historic Trouble Codes (History Codes): errors that occurred in the past.
- Sporadic Trouble Codes: occur irregularly and are often difficult to reproduce.
- Permanent Trouble Codes: cannot be manually deleted; disappear only after successful repair.
- Freeze-Frame Data: snapshot of vehicle parameters at the time of the error.
- Live Data (PID): real-time data from all relevant sensors and control units.
- ECU Information: detailed information about control units, coding, and software version.
Technical Specifications of the iSmart 810
- Color display with clear presentation
- Power supply: 8–18V vehicle battery or 12V power adapter
- Protocols: SAE J1850, ISO 9141-2, KWP2000, CAN
- Coverage: BMW, Mercedes, VAG, Opel, Ford, Toyota, Renault, and many more.
- Service functions: Oil reset, EPB, battery, SAS, throttle body adaptation
Vident iSmart 900 – Versatile with Extended Functionality
The iSmart 900 builds on the concept of the iSmart 810 and offers significantly extended functionality. It is therefore particularly suitable for workshops that work with different vehicles. In addition to detecting and clearing trouble codes, the device offers a variety of special functions that are indispensable in everyday workshop life.
Typical applications include diesel particulate filter (DPF) regeneration, injector coding, ABS bleeding, transmission adaptation, and odometer calibration. This allows complex service tasks to be performed that go far beyond merely reading trouble codes.
Trouble Code Types with iSmart 900
- Stored Trouble Codes: permanently stored errors.
- Pending Codes: errors that have been detected but are not yet considered permanent.
- Permanent Trouble Codes: cannot be deleted as long as the problem persists.
- Sporadic Trouble Codes: occur irregularly and are not continuously active.
- Freeze-Frame Data: snapshot of vehicle values at the time an error occurs.
- Live Data (PID): monitoring of current sensor data, graphically displayable.
- ECU Information: control unit data, serial numbers, software versions.
Technical Specifications of the iSmart 900
- Large color display for clear presentation
- Power supply: 8–18V vehicle battery
- Protocols: ISO15765 (CAN), ISO14230 (KWP2000), ISO9141-2, J1850, etc.
- Coverage: almost all common manufacturers worldwide
- Service functions: DPF regeneration, ABS bleeding, battery matching, TPMS, SAS, transmission adaptation
Reading and Understanding Trouble Codes
Both the iSmart 810 and the iSmart 900 display stored trouble codes, sporadic trouble codes, and permanent trouble codes. This distinction is crucial for diagnosis:
- Stored Trouble Codes: permanently stored in the ECU until deleted.
- Sporadic Trouble Codes: occur irregularly, often indicating loose connections or intermittent failures.
- Permanent Trouble Codes: cannot be manually deleted. They remain in memory until the cause is actually resolved.
Especially with permanent trouble codes, the strength of Vident devices becomes apparent: they reliably document whether a defect has been remedied before an exhaust emission test or main inspection (HU/AU) is due. Simply clearing the codes is not enough here – only when the system is working flawlessly will the entry automatically disappear.
Differences Between iSmart 810 and iSmart 900
While the iSmart 810 is a compact entry-level device, the iSmart 900 offers significantly greater functional depth. For users who primarily tinker privately, the iSmart 810 is the cost-effective yet very powerful choice. Workshops or users who work more intensively, however, benefit from the iSmart 900 and its extended service functions.
Purchase Recommendation
- iSmart 810: Ideal for drivers or mechanics who expect a compact, reliable solution for regular trouble code analyses.
- iSmart 900: Recommended for workshops, frequent users, or ambitious users who regularly work with different vehicles and also want to perform complex service tasks.
Clearing Trouble Codes – But Correctly
Both devices can clear trouble codes, but there's an important rule: trouble codes must never be removed without addressing the underlying cause. Resetting the check engine light (MIL) without solving the underlying problem risks subsequent damage. Clearing only serves to confirm a repair – not to suppress errors.
The Vident devices therefore document not only the codes themselves but also freeze-frame data and live data that help to understand the exact cause of an error. This allows problems to be permanently resolved instead of just temporarily made invisible.
Software Updates and Extensions
Both the iSmart 810 and the iSmart 900 can be regularly updated. This keeps the diagnostic devices always up to date and allows them to interpret new vehicle models and additional trouble codes.
Safety and Warranty
The devices are designed for professional use and offer robust housings, practical menus, and clearly structured displays. Both devices come with a 12-month warranty and technical support, protecting the user from material and manufacturing defects. For workshops, this means investment security; for hobby mechanics, reliability in private use.
Summary
A trouble code is more than just a cryptic string of characters – it is the key to precise diagnosis. With the Vident iSmart 810 and Vident iSmart 900 diagnostic devices, trouble codes can be reliably read, interpreted, and permanently resolved. While the iSmart 810 is particularly suitable for compact, private use, the iSmart 900 scores with broad vehicle coverage and numerous service functions. Both models are valuable tools for anyone who wants not just to clear errors, but to truly solve problems.
