OBD connector: All questions and answers about requirements, types and functions

OBD port: everything you need to know

The OBD port is a central component of modern vehicles when it comes to diagnostics and maintenance. Whether you want to read the fault memory, detect engine problems or reset service intervals – the OBD port enables fast communication between the vehicle and a diagnostic tool. In this article we answer the most important questions about the OBD port, from the legal requirement to choosing the right connector for your vehicle.

Is an OBD port mandatory in every new vehicle?

Yes. Since 1 January 2001 (petrol) and 1 January 2004 (diesel), the OBD2 port has been required by law for all passenger cars newly registered in the EU. The legal basis is EU Directive 98/69/EC, which made on-board diagnostics (OBD) the standard.
This means: every new vehicle registered after these dates must be equipped with an OBD2 interface. Without this port, a vehicle may no longer be placed on the EU market.

Which OBD connector do I have?

There are basically OBD1 and OBD2.

• OBD1: In vehicles built before around 2001 (petrol) or 2004 (diesel). There was no standardised shape yet – every manufacturer used its own connectors and protocols. Matching adapter cables for OBD1 vehicles are available.
• OBD2: Standard since the dates mentioned above. Almost all current vehicles have this port.

To find out exactly which connector you have, check the owner's manual or look under the dashboard. For vehicles built from 2001/2004 onwards it is almost always the standardised 16-pin OBD2 connector.

Are all OBD connectors the same?

Not quite. OBD2 is standardised, but there are different protocols, e.g. ISO 9141, CAN, KWP2000 or SAE J1850.
This means:

• The shape of the connector (16-pin) is the same.
• The communication inside can vary.

Modern diagnostic tools usually detect the correct protocol automatically. For older vehicles, however, it can be useful to check the exact protocol beforehand.

Which OBD connector does my car have?

For all passenger cars from 2001/2004 onwards it is almost always the OBD2 standard.
You can check the exact version in several ways:

1. Owner's manual: There is often a note about OBD2.
2. Sticker in the engine bay: Some manufacturers note the standard there.
3. Practical test: Connect a modern OBD2 diagnostic tool – if it communicates immediately, it is OBD2.

Classic cars or vehicles from the 1990s, on the other hand, may still have OBD1 or even manufacturer-specific connectors.

Are OBD connectors legal?

Yes. OBD connectors are completely legal. The interface primarily serves emissions monitoring and is therefore even required by law.
Reading fault codes, sensor values or service intervals is legal.
Restrictions only apply if you use an OBD device to manipulate engine control units, for example for power increases without type approval – this is where traffic law comes in.

Are all OBD2 connectors the same?

Yes, as far as the physical design is concerned.
All OBD2 connectors have the same 16-pin socket and fit all OBD2-capable vehicles. Differences only exist in the software and the supported protocols.
A high-quality diagnostic tool detects and handles these differences automatically.

What is the best OBD device?

That depends on the intended use: You will find an overview of suitable devices among the universal diagnostic tools for cars.

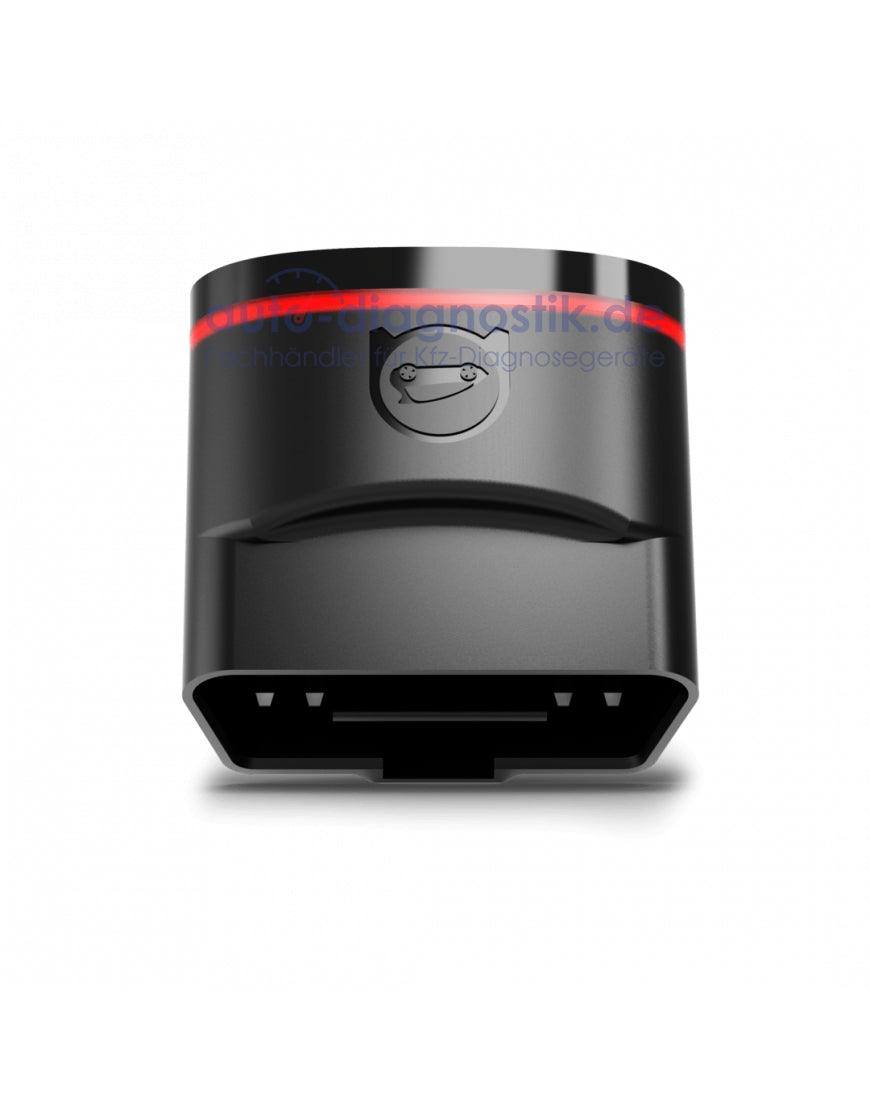

• For DIY mechanics: Compact Bluetooth or Wi-Fi adapters such as the Vident iLink400 or OBDLink MX+, which connect to a smartphone, are recommended.
• For workshops: Professional diagnostic systems such as the Panasonic CF-D1 with VAS6154B or Autel MaxiCOM offer deeper diagnostic capabilities and manufacturer-specific adaptations.

Regular software updates are important in order to support new vehicle models and protocols.

What does the OBD port do?

The OBD port is the diagnostic interface of the vehicle. It connects the car's control units with a diagnostic tool or laptop.
Functions:

• Read and clear fault codes
• Check sensor values (e.g. lambda sensor, mass air flow sensor)
• Monitor emission values
• Reset service intervals
• Perform coding and adaptations (with professional tools)

In short: the entire condition of the vehicle can be analysed via the OBD port.

How many pins does an OBD connector have?

An OBD2 connector has 16 pins.
Not every pin is used in every vehicle, but all use the same layout. Some important pins:

• Pins 4 & 5: Ground
• Pins 6 & 14: CAN bus (communication)
• Pin 16: +12 V vehicle power

Depending on the vehicle and manufacturer, further pins are used for additional functions.

Where is the OBD port located?

In almost all vehicles, the OBD2 socket sits in the driver's footwell, under the dashboard near the steering column. In some models it is hidden behind a small cover or flap. Look for a rectangular connector with 16 contacts.

Where is the OBD port on a BMW?

On BMW models, the OBD2 interface is usually located in the driver's footwell, under the dashboard near the steering column.
In some models it may be hidden behind a small cover or flap.
Tip: Look for a rectangular connector with 16 contacts – often near the fuse box.

What is the difference between OBD and OBD2?

OBD stands for on-board diagnostics and initially describes only the principle: the vehicle monitors itself and stores faults. The first generation (OBD or OBD1) was manufacturer-specific – every manufacturer used its own connectors, fault codes and readout methods. OBD2 is the standardised second generation: a uniform 16-pin connector, standardised fault codes (P0xxx …) and defined emissions monitoring. In Europe the implementation is called EOBD and has been mandatory for petrol cars since 2001 and for diesels since 2004.

In practice, three levels matter: the connector shape (16-pin) is always the same with OBD2. The protocol (e.g. CAN, ISO 9141, KWP2000) differs by vehicle – modern tools detect it automatically. The actual vehicle compatibility, however, is decided by the diagnostic tool's software: whether ABS, airbag or service functions of a specific model are supported depends on the tool, not on the connector. A matching plug therefore does not yet mean full diagnostics.

What role does the OBD port play in the German HU and AU (TÜV inspection)?

During the German emissions test (AU), which is part of the periodic vehicle inspection (HU), the inspector reads the emissions-related on-board diagnostic system via the OBD port – including the fault memory and the status of the check engine light (MIL). Emissions-related faults or an illuminated warning light mean the AU is failed. Since 1 January 2019, according to the TÜV-Verband, tailpipe measurement is again required for all vehicles subject to the AU – the interim shortened OBD-only procedure (for first registrations from 2006) no longer exists.

Practical tip: reading the fault memory yourself before the inspection and fixing emissions-related faults saves an avoidable re-test. A simple diagnostic tool is enough for that.

OBD ports are essential for diagnostics and maintenance

The OBD port is now standard in every modern car and makes vehicle diagnostics easier than ever. Whether for private DIY mechanics or professional workshops: with the right OBD2 tool, faults can be found and fixed quickly.
If you rely on quality, you benefit from reliable data, long-term software updates and simple operation.

The OBD2 pin assignment explained: which pin does what?

The 16-pin OBD2 socket (standard SAE J1962) follows a fixed layout – however, only some of the pins are standardised across manufacturers; the rest is left to the vehicle manufacturer. That explains why some add-on devices work in one car but not in the next.

Are all OBD2 pin assignments the same?

Yes and no. The diagnostic pins (4, 5, 6, 14, 16) are assigned identically on every OBD2 vehicle – all diagnostic tools rely on that. The seven manufacturer-specific pins, on the other hand, are used differently by each manufacturer. For normal fault diagnosis this does not matter; it becomes relevant for special functions and for adapter cables, which have to match the vehicle exactly.

Which OBD connector types exist?

The standard defines two designs: Type A for 12-volt electrical systems (passenger cars) and Type B for 24-volt systems (trucks, buses) – recognisable by the split guide tab. Many commercial vehicles additionally use their own round-pin diagnostic connectors; you will find the matching connections among our truck adapter cables.

Practical example Golf 4: where is the OBD connector – and what does it deliver?

One of the most frequent search queries of all: in the VW Golf IV, the OBD2 socket sits in the centre console behind a small cover (depending on the trim level, in the area in front of the gear lever or near the ashtray). Important to know: the Golf 4 does have the 16-pin socket from the factory, but only petrol models from model year 2001 and diesels from 2004 are required to speak the standardised EOBD protocol. Older Golf 4 model years respond via the same socket only to manufacturer-specific diagnostics – a simple OBD2 scanner reads little to nothing there, whereas a multi-brand diagnostic tool with VW support reads all control units.
