Vident iEasy320 Advanced OBDII/EOBD CAN Code Reader Professional Diagnostic
✓ High reliability and long service life
✓ Easy handling and user-friendliness
✓ Fast and competent customer service
✓ 12 months warranty
Vident iEasy320 Advanced OBDII/EOBD CAN Code Reader Professional Diagnostic is backordered and will ship as soon as it is back in stock.
Description
Description

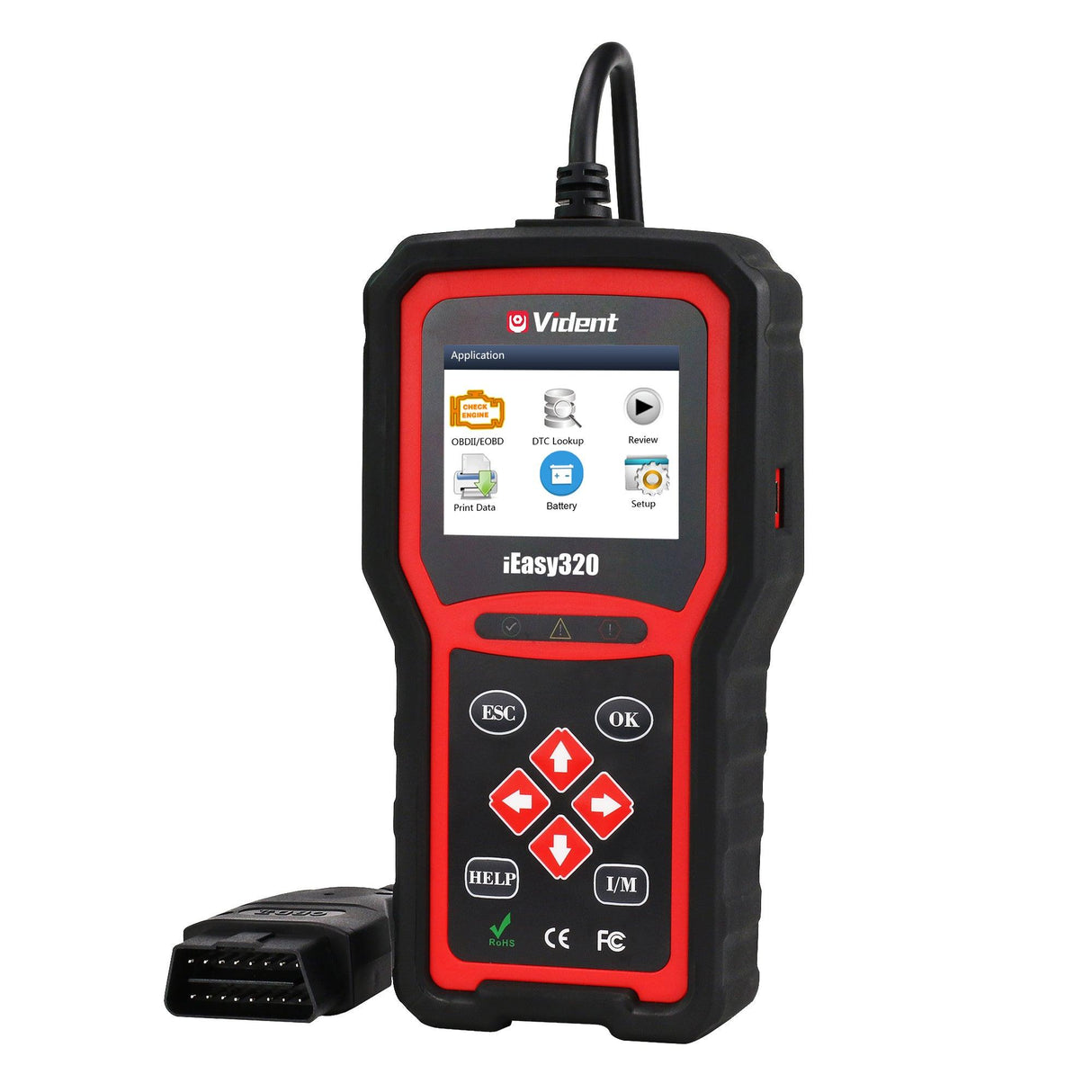

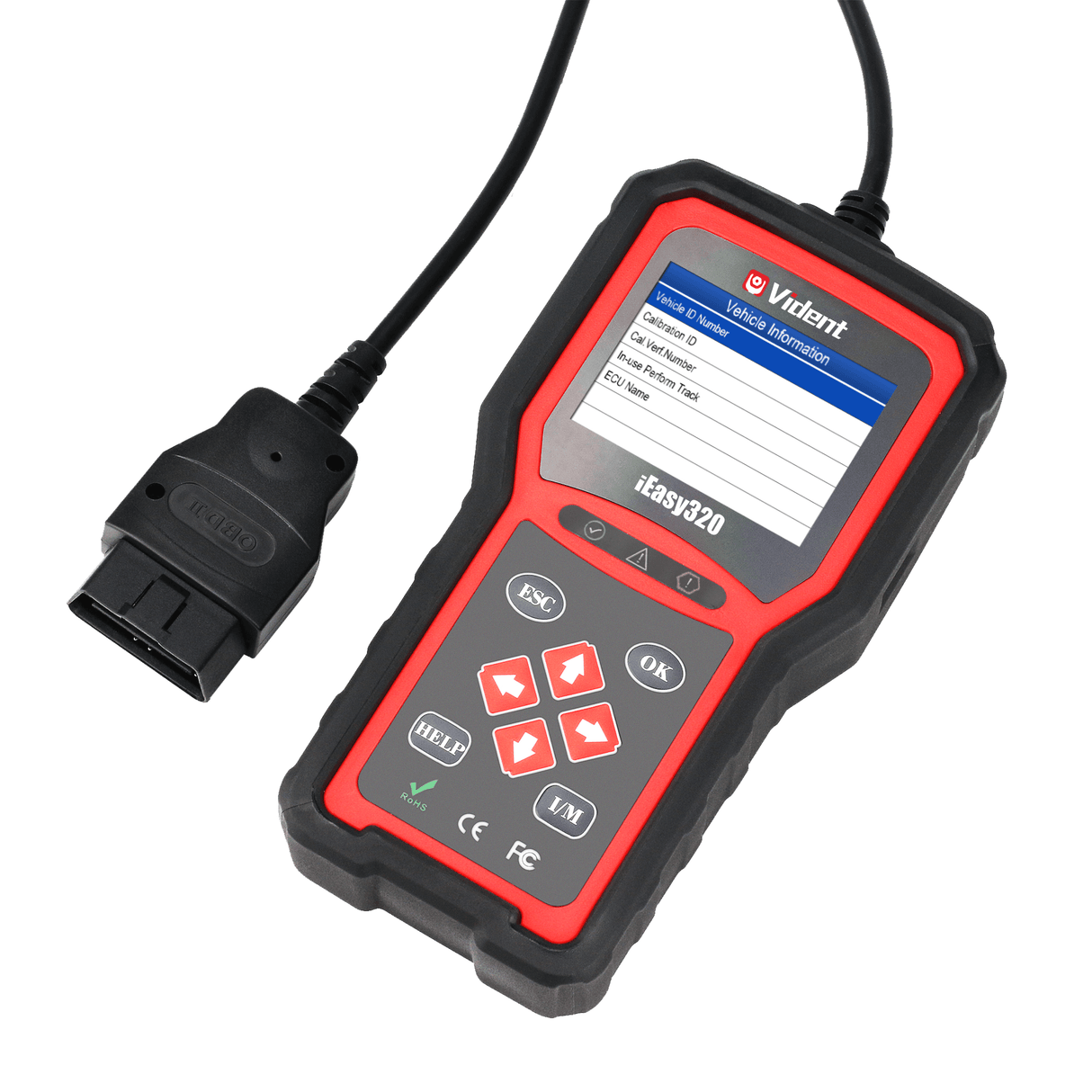

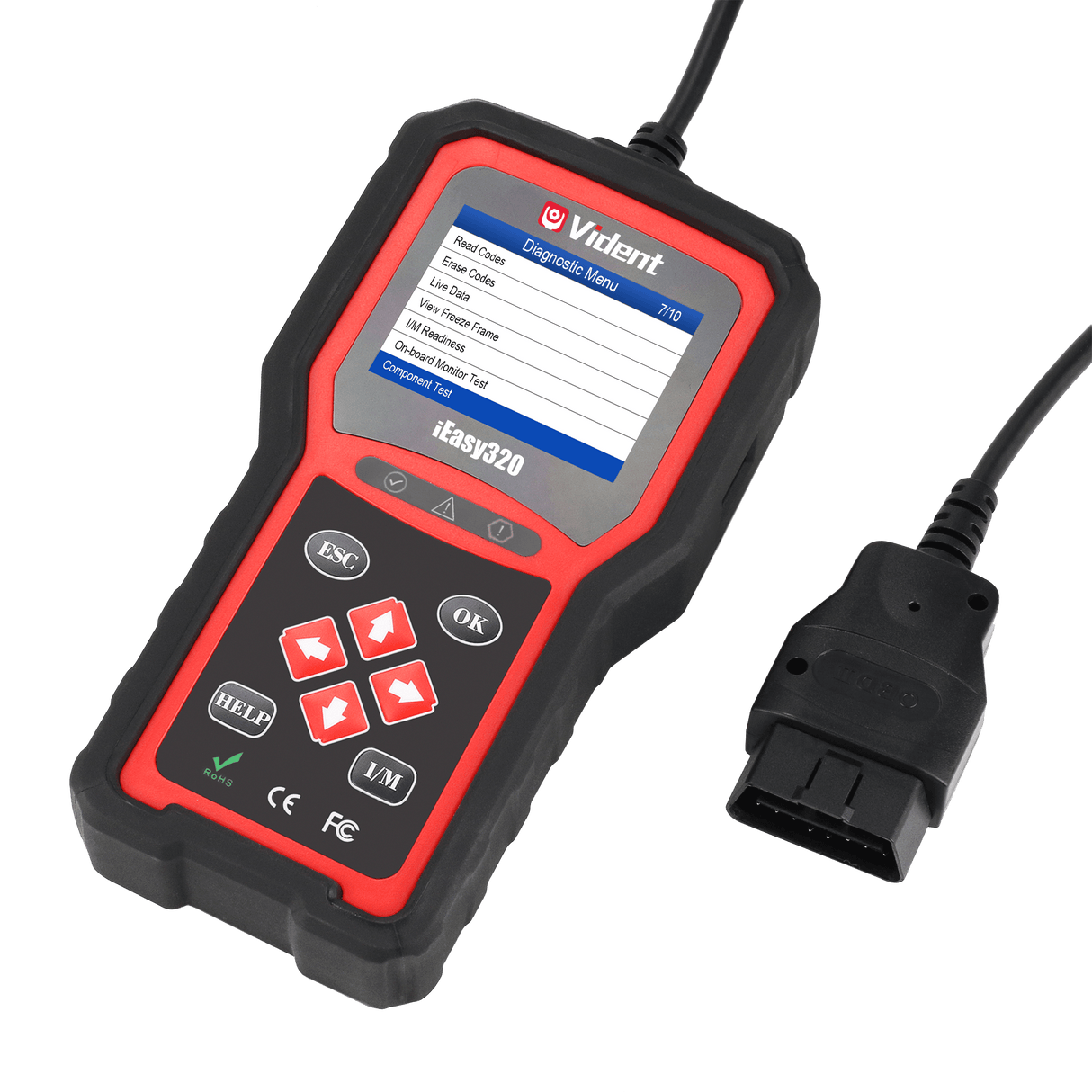

iEasy320 Advanced OBDII/EOBD CAN Code Reader – Professional Diagnostic Tool for Vehicles
The iEasy320 OBDII/EOBD CAN code reader is a powerful diagnostic tool that works with most OBDII & CAN compliant vehicles worldwide from 1996 onwards , including cars, light commercial vehicles, SUVs, minivans, and hybrid vehicles. It supports all 10 OBDII test modes and offers comprehensive diagnostics for professional automotive mechanics and ambitious DIY enthusiasts.
Key features of the iEasy320 code reader
- Compatibility: Works with OBDII & CAN-compliant vehicles from model year 1996 onwards, including cars, SUVs and commercial vehicles.
- 10 OBDII test modes: Supports all common diagnostic modes, including reading and clearing fault codes.
- LED status indicator: Red, yellow, and green LEDs and a built-in speaker indicate the status of the exhaust gas monitor and help to detect problems early.
- I/M ready buttons: One-click function for quick checking of emission status and driving cycle.
- Error code definitions: Display of general, manufacturer-specific, pending and permanent error codes on the screen.
- Freeze-frame data: Retrieving engine conditions at the time of a fault, including fuel trim and coolant temperature.
- Real-time live data: Reading, graphical representation and playback of live data streams for monitoring sensors.
- Extended Mode 6 functions: Display of test results for systems that are not continuously monitored.
- Automatic VIN recognition: VIN capture and decoding for manufacturer-specific codes and extended data.
- Multilingual menu: Supports English, German, French, Spanish, Italian, Portuguese, Polish, Russian, Hungarian, Dutch and Swedish.
- Battery test: Checking and displaying the battery voltage.
- Free updates: Lifetime free software and firmware updates for the code reader.
Hardware features
- OBD II cable: Ensures communication with the vehicle's DLC.
- LCD display: Shows menus, test results and operating tips.
-
LED displays:
- Green LED: The engine system is functioning normally, no DTCs found.
- Yellow LED: Potential problems detected, pending DTCs present.
- Red LED: Problems in one or more systems, MIL light illuminated.
- Control buttons: UP, DOWN, LEFT, RIGHT, OK, ESC and I/M standby button for easy navigation.

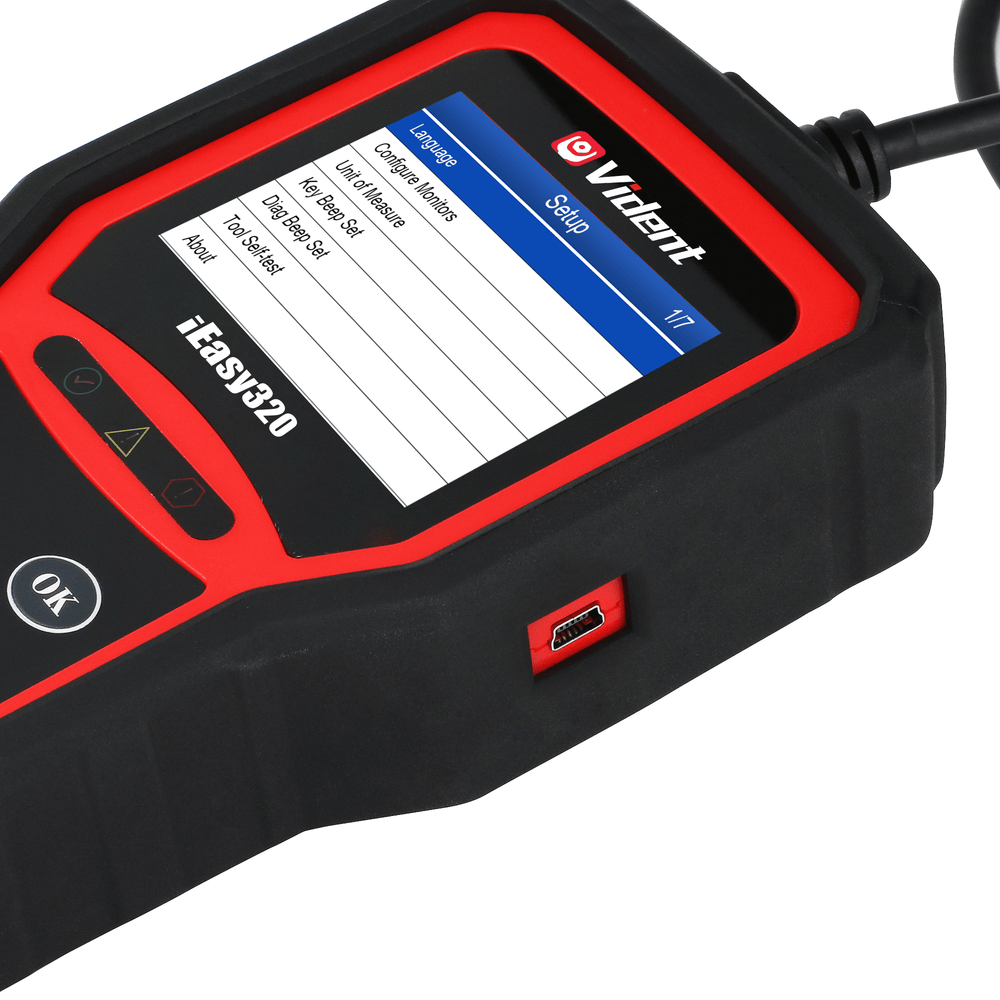

- USB port: Connects the code reader to a PC or laptop for software updates.
Technical specifications
| Characteristic | Details |
|---|---|
| Operating temperature | 0 to 60°C (32 to 140°F) |
| Storage temperature | -20 to 70°C (-4 to 158°F) |
| power supply | 8 to 18 V via the vehicle |
| Supported protocols | J1850-41.6, J1850-10.4, ISO9141, KWP2000 (ISO 14230), CAN (ISO 11898) |
| Device dimensions | 190mm (7.5”) x 100mm (3.9”) x 35mm (1.4”) |
| Weight | 380g |
Package contents
- iEasy320 Advanced OBDII/EOBD CAN Code Reader
- User manual
- USB PC cable for software updates
About us – Your official Vident dealer
We are an official Vident Germany dealer and offer high-quality automotive diagnostic equipment and comprehensive service. Become our partner and benefit from our many years of experience. We support you every step of the way, from product selection to business development.
Why choose the iEasy320 code reader?
The iEasy320 OBDII/EOBD CAN code reader is the ideal choice for professionals and DIY enthusiasts who need comprehensive and accurate diagnostics for OBDII-compliant vehicles. With lifetime free updates and user-friendly operation, this tool is an indispensable companion for vehicle diagnostics.
Note: The iEasy320 is designed for diagnostics only and not for repairs.
Technical background of the OBDII/EOBD system
How the on-board diagnostics system works
The OBDII system is a standardized diagnostic system that continuously monitors the condition of emissions-related components. The iEasy320 OBDII/EOBD CAN code reader communicates with the engine control unit (ECU) via the standardized 16-pin DLC interface. Diagnostic trouble codes (DTCs), sensor data, and system status information are read during this process.
Supported communication protocols in everyday workshop life
By supporting J1850, ISO9141, KWP2000, and CAN, the iEasy320 OBDII/EOBD CAN code reader covers almost all relevant protocols used in vehicles from 1996 onwards. The CAN protocol (ISO 11898) in particular is standard in modern vehicles and enables fast and stable data transmission between control units.
Meaning of the 10 OBDII test modes
Support for all ten test modes allows for systematic diagnostics. In addition to simply reading fault codes, the iEasy320 OBDII/EOBD CAN code reader provides access to on-board monitor test results, oxygen sensor tests, Mode 6 data, and persistent fault codes. This allows for a significantly more precise determination of the necessary repairs.
Practical benefits in workshops and service operations
Quick diagnosis when the engine warning light illuminates
In everyday workshop situations, time is a crucial factor. The iEasy320 OBDII/EOBD CAN code reader enables immediate initial diagnosis when the MIL (Malfunction Indicator Lamp) is illuminated. The LED status indicator provides an assessment of the problem's urgency even before detailed diagnostics are performed.
Support with emissions testing
The I/M readiness function of the iEasy320 OBDII/EOBD CAN code reader is particularly relevant in the run-up to vehicle inspections (HU/AU). Workshops can quickly check whether all emissions-related monitoring has been completed or whether a driving cycle is required.
Analysis of freeze-frame and live data
By reading freeze-frame data, errors can be traced under real operating conditions. The iEasy320 OBDII/EOBD CAN code reader displays parameters such as engine speed, load status, and coolant temperature, thus supporting structured troubleshooting.
Software and update concept
Lifetime firmware updates
Vehicle manufacturers continuously adapt diagnostic parameters and protocol extensions. With the free updates, the iEasy320 OBDII/EOBD CAN code reader remains technically up-to-date and compatible with new vehicle models within the OBDII framework.
PC connection via USB
The ability to update via USB ensures easy integration into existing workshop infrastructure. The iEasy320 OBDII/EOBD CAN code reader can be updated without additional special hardware, reducing maintenance effort and costs.
Target groups and areas of application
Independent workshops
For independent garages, the iEasy320 OBDII/EOBD CAN code reader is suitable as a quick preliminary diagnostic tool. It does not replace a brand-specific system, but provides reliable basic data for further analysis.
Used car dealers and vehicle fleets
When purchasing vehicles or managing fleets, the iEasy320 OBDII/EOBD CAN code reader enables a quick condition assessment regarding emission-related faults.
Technically savvy private users
Even ambitious users benefit from the structured menu and clear LED display of the iEasy320 OBDII/EOBD CAN Code Reader , especially in the case of recurring problems or for preparing for workshop appointments.
Recommended vehicle models for use
Widely applicable to OBDII-compliant vehicles
The iEasy320 OBDII/EOBD CAN code reader is particularly suitable for vehicles with standardized OBDII access without manufacturer-specific diagnostic extensions.
Suitable models
- Volkswagen Golf VII (1.4 TSI, 1.6 TDI)
- BMW 3 Series F30 (316d, 320i)
- Ford Focus Mk3 (1.0 EcoBoost, 1.6 TDCi)
- Opel Astra K (1.4 Turbo, 1.6 CDTI)
Highly recommended: Volkswagen Golf VII
The Volkswagen Golf VII features a sophisticated OBDII system with comprehensive CAN communication. The iEasy320 OBDII/EOBD CAN code reader can fully demonstrate its strengths here, particularly in diagnosing exhaust, sensor, and fuel mixture problems. For basic diagnostics in a workshop setting, this combination represents a technically sound and economical solution.
Summary of technical and practical advantages
The iEasy320 OBDII/EOBD CAN code reader combines standardized OBDII diagnostic functions with user-friendly operation. Thanks to comprehensive protocol support, live data analysis, Mode 6 evaluation, and update capability, the device is suitable for both professional workshops and qualified private users. It represents an efficient and cost-effective diagnostic solution, especially for vehicles with clearly structured OBDII access.
