Autel PowerScan PS100 12V/24V Battery Tester Electrical Voltage Tester
✓ High reliability and long service life
✓ Easy handling and user-friendliness
✓ Fast and competent customer service
✓ 12 months warranty
Autel PowerScan PS100 12V/24V Battery Tester Electrical Voltage Tester is backordered and will ship as soon as it is back in stock.
Description
Description
PowerScan PS100 - Multifunctional vehicle electrical tester for voltage, current and resistance
The PowerScan PS100 is a versatile automotive electrical tester, ideal for precise diagnosis and troubleshooting of electrical systems. This multifunctional device measures voltage (V) , current (A) , and resistance (Ω) and offers additional features such as a test light, short-circuit tester, relay and component tester, continuity tester, and a signal and flashlight. It is particularly well-suited for quickly and reliably identifying poor ground connections.
Electrical problems are among the most common causes of vehicle malfunctions. Modern vehicles have a multitude of electronic systems, control units, and sensors that only function reliably with a stable power supply and correct signal transmission. The PowerScan PS100 enables targeted and systematic troubleshooting directly on the vehicle. Workshops particularly benefit from the ability to actively control electrical components and receive immediate feedback on the condition of the wiring or component.
Key features of the PowerScan PS100:
- Voltage, ground, polarity and continuity tests
- Easy reading of voltage, current and resistance on a TFT color display
- Activating the on/off switch allows switching between both polarities (+/-) for component testing.
- 6-meter-long test cable for flexible testing of the entire vehicle
Direct component activation via the test device
One of the key functions of the PowerScan PS100 is the active power supply to components. This allows electrical components to be directly controlled without the need for additional test equipment. Relays, fan motors, window regulator motors, or solenoid valves can be directly powered to check their functionality.
This method allows for a quick differentiation between a defective component and a wiring problem. For example, if a fan motor is controlled directly via the PowerScan PS100 and functions correctly, the fault usually lies in the control unit or wiring. If, however, the component does not respond, this often indicates a mechanical or electrical defect in the component itself.
Integrated short-circuit and continuity testing
The tester allows for precise localization of breaks or short circuits. Especially with the complex wiring harnesses of modern vehicles, rapid diagnosis is crucial to avoid unnecessary disassembly. The PowerScan PS100 enables systematic testing of cable connections and targeted identification of fault locations.
Practical applications in vehicle diagnostics
Troubleshooting grounding problems
Poor ground connections are a common cause of electrical system malfunctions. Symptoms can include flickering lights, sporadic control unit errors, or the failure of individual electrical components. The PowerScan PS100 allows you to directly test ground points by measuring the voltage between the ground point and the battery.
Thanks to the long test cable, the technician can easily test even hard-to-reach ground points in the engine compartment or interior. The device immediately indicates whether a stable ground connection is present or whether there are contact resistances.
Checking relays and switches
Relays play a crucial role in vehicle electrical systems, as they switch high currents and relieve the load on control units. The PowerScan PS100 allows for targeted relay testing by activating the coil and simultaneously checking the switching contact. This enables a quick determination of whether the relay is functioning correctly.
Diagnosis of lighting and comfort systems
Many comfort features in vehicles are based on electrical actuators and sensors. These include, among others:
- Central locking
- power windows
- Seat adjustment
- Indoor and outdoor lighting
- Mirror adjustment
The PowerScan PS100 allows these components to be tested directly and their electrical supply to be checked. This makes it possible to locate faults much faster than with conventional multimeters.
Technical data:
| category | Details |
|---|---|
| Display | TFT color display, 160 x 128 pixels |
| power supply | External power supply via vehicle battery (12 to 24 V) |
| Operating temperature | 0 to 60 °C |
| Dimensions | 126 mm x 46.5 mm x 35 mm |
| Weight | 0.105 kg (device), 0.726 kg (complete including case) |
Hardware and display characteristics of the test device
TFT color display for clear measurement results
The integrated TFT color display of the PowerScan PS100 provides a clear overview of the measured values. Voltage, current, and resistance are displayed directly, allowing the user to immediately see whether the measured values are within the normal range.
Robust construction for everyday workshop use
Diagnostic tools must function reliably in workshop environments. The PowerScan PS100 is therefore compact and features a robust housing. The long test cable ensures that measurements can be easily taken even in the rear of the vehicle or under the dashboard.
Typical areas of application in workshops and vehicle technology
Quick initial diagnosis of electrical problems
The PowerScan PS100 is ideal for a quick initial diagnosis before more extensive diagnostic work is carried out. Many electrical faults can be identified simply by measuring voltage or continuity.
Support in troubleshooting control unit wiring
Control units communicate with sensors and actuators via electrical signals. Interruptions or voltage problems can cause control units to store error messages or deactivate individual functions. The PowerScan PS100 allows for targeted testing of wiring and signal paths.
Recommended car models for use with the PowerScan PS100
Suitable vehicle models for electrical diagnostics
The PowerScan PS100 can generally be used in all vehicles with a 12-volt or 24-volt electrical system. It is particularly useful in vehicles with complex electronics and numerous electrical comfort features.
Typical examples of suitable vehicles are:
- BMW 3 Series (E90 / F30)
- Volkswagen Golf VII
- Audi A4 B8
- Mercedes-Benz C-Class W204
- Ford Focus Mk3
Highly recommended: Volkswagen Golf VII
The Volkswagen Golf VII is particularly well-suited for use with the PowerScan PS100 . This vehicle features numerous electrical comfort systems such as an electronic parking brake, adaptive lighting systems, electric windows, and extensive sensor technology. Faults in these systems often arise from voltage problems, defective relays, or damaged wiring.
The PowerScan PS100 allows these faults to be quickly narrowed down. For example, the power supply of an actuator motor can be tested directly, or a faulty ground connection in the door control unit can be identified.
Scope of delivery:

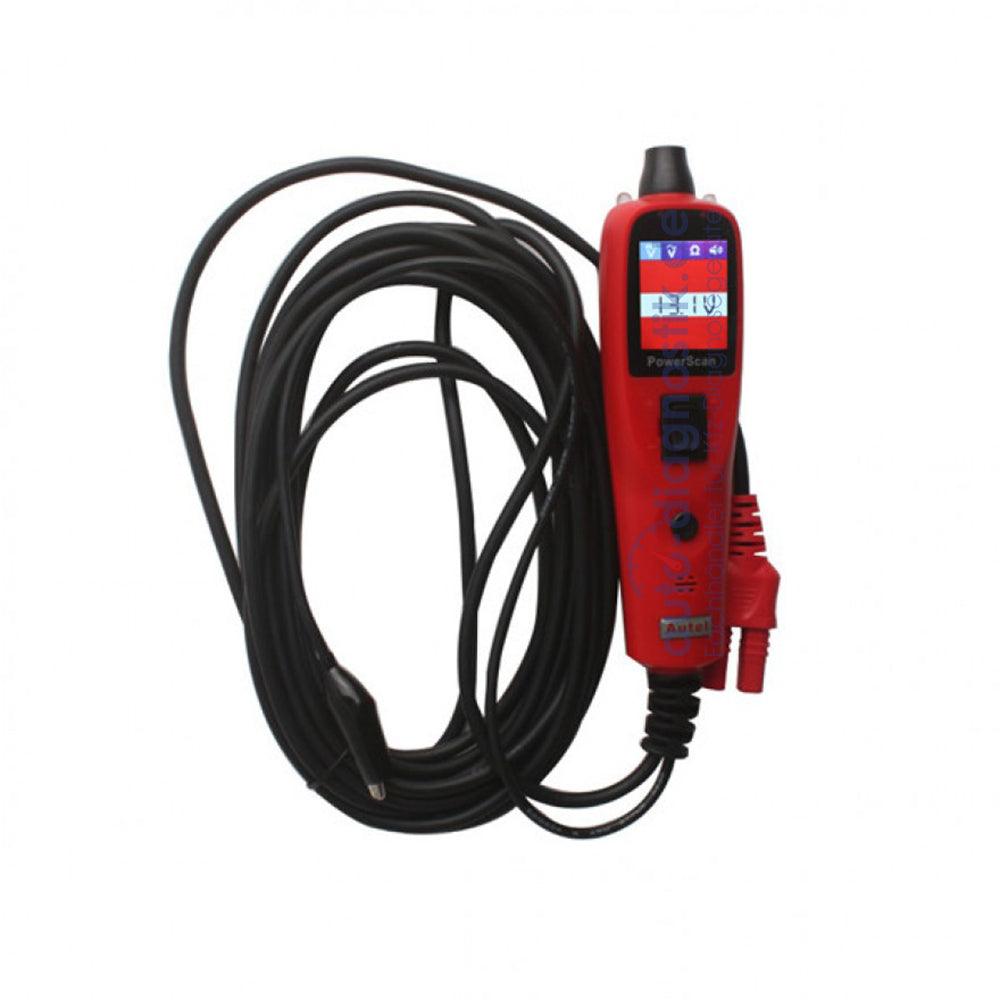

- PowerScan PS100 Vehicle Electrical Tester
- Test peak

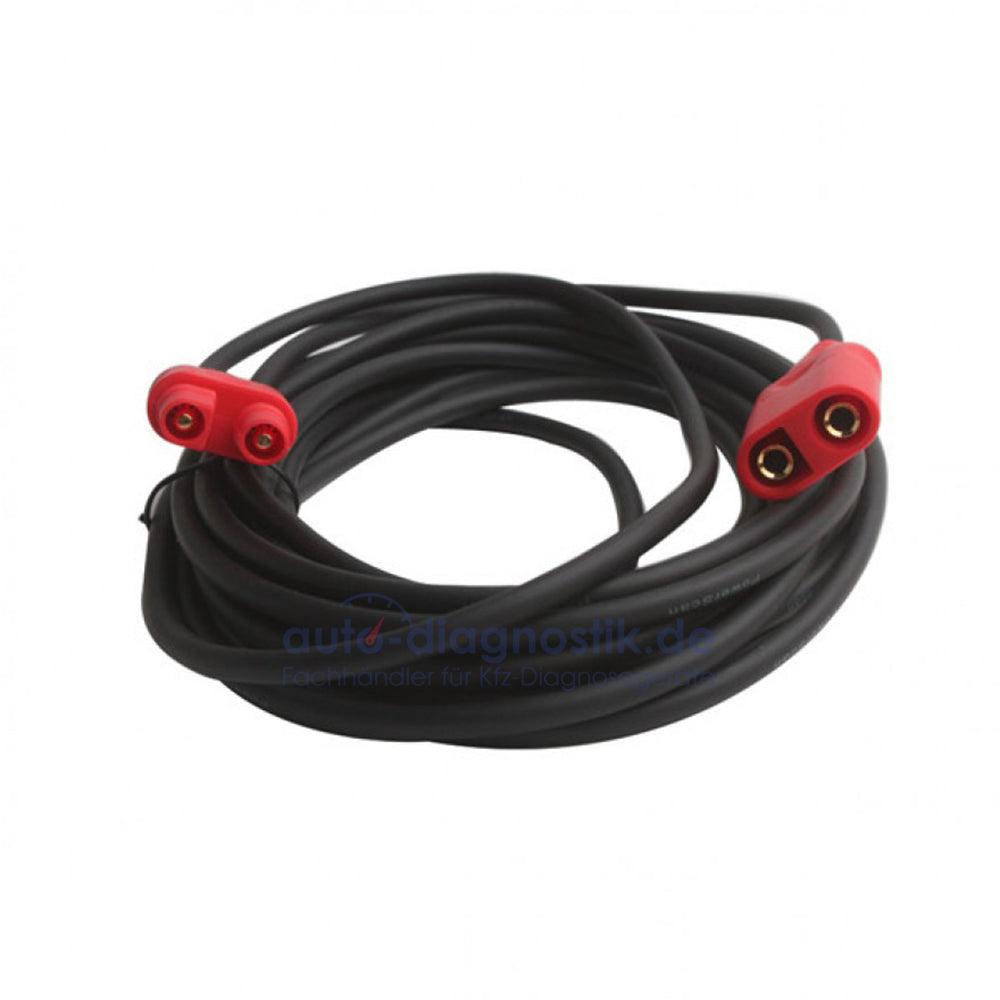

- 6 m extension cable

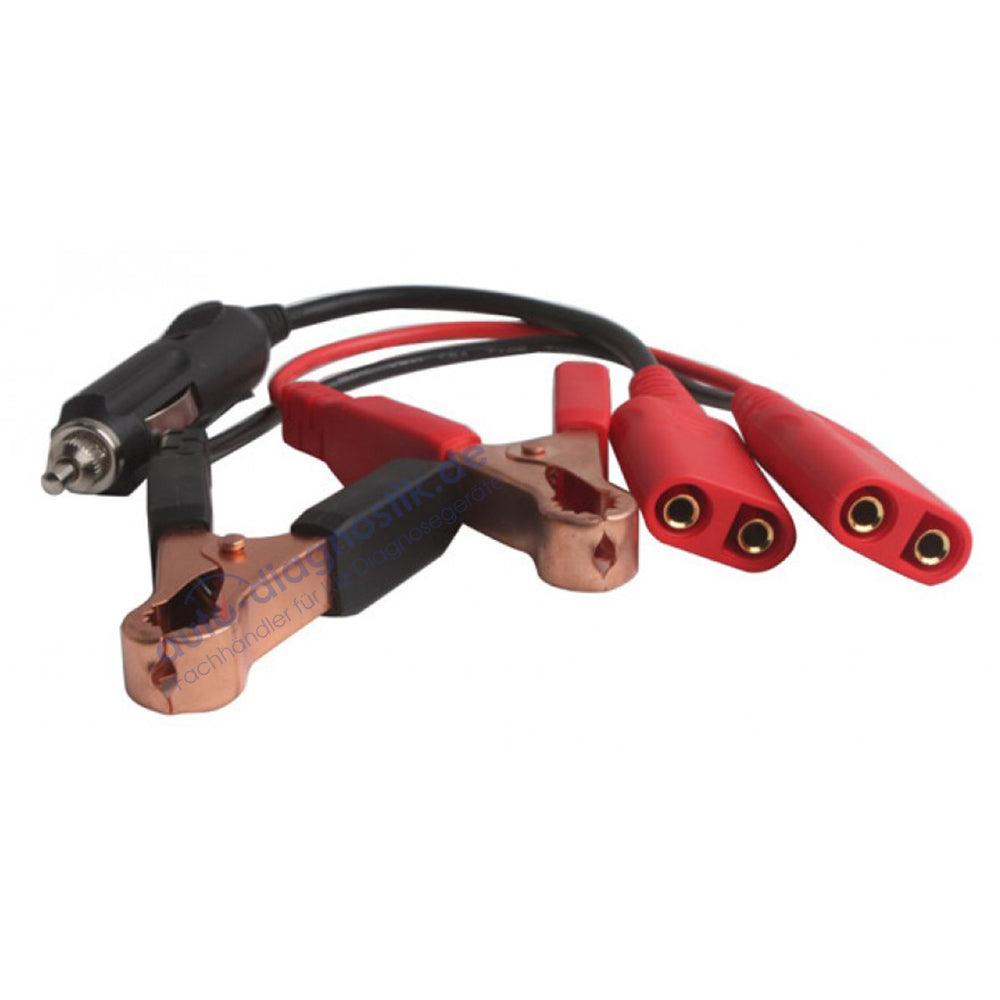

- Adapter cable for cigarette lighter
- Battery terminal clamps

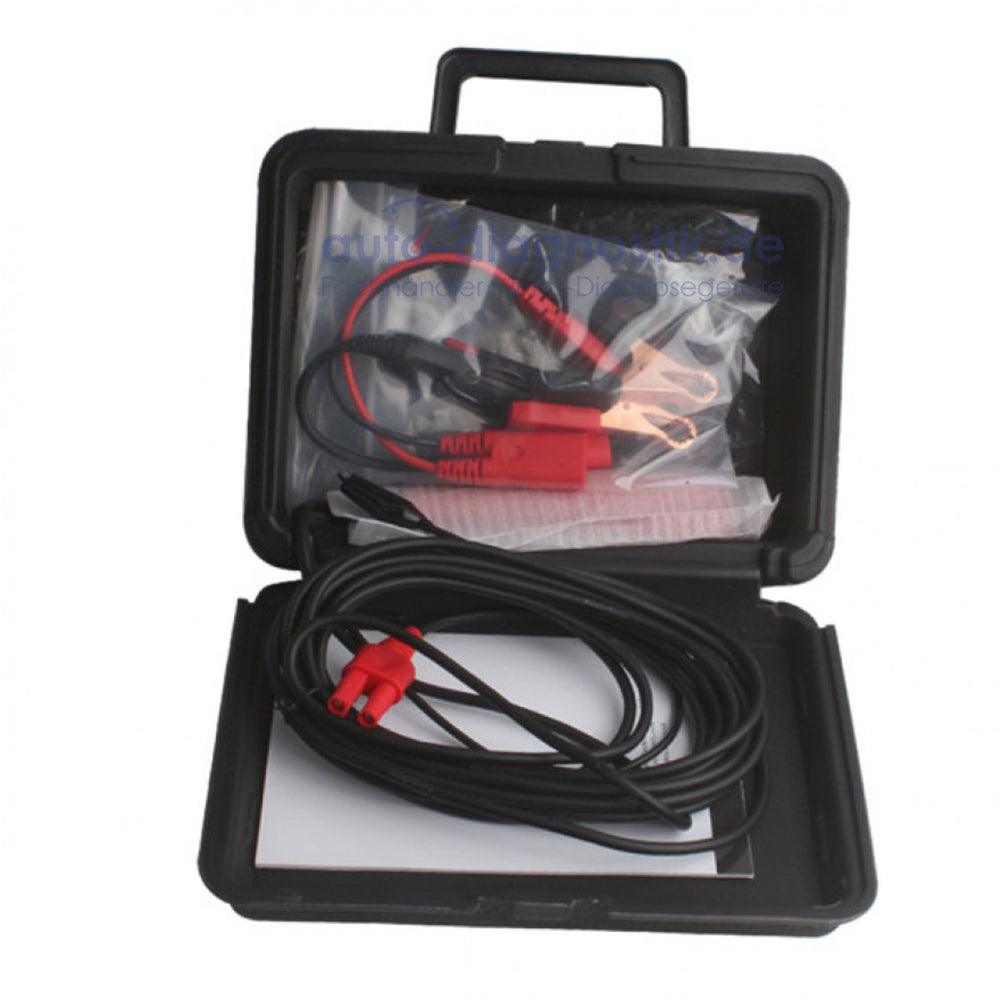

- Storage case
- User manual (English)
Workshop benefits and long-term application possibilities
More efficient troubleshooting in workshop operations
Using a specialized vehicle electrical tester like the PowerScan PS100 can significantly reduce diagnostic time. Instead of performing complex control unit analyses, many faults can be detected at the wiring level. This saves time and enables faster repairs.
Supplement to OBD diagnostic devices
While OBD diagnostic tools primarily read fault codes and analyze control units, the PowerScan PS100 focuses on the physical inspection of the electrical infrastructure. The combination of electronic diagnostics and electrical measurement enables significantly more precise fault finding.
For workshops, mobile diagnostic services and dedicated vehicle technicians, the PowerScan PS100 is therefore an extremely practical tool to efficiently analyze and permanently resolve electrical problems.
