AUTOOL AST605 Brake line bleeder Brake fluid change

Applicable to European, American and Asian car models

For a lower pump to change oil at the same time, it is quick and labor-saving.

Adjustable pulse oil change, which can effectively clean the pipeline and change the oil more thoroughly.
Powerful recovery function, it can quickly recover used brake fluid at the same time. The air inlet has a water separation and filter device, which can separate the moisture in the air to avoid mixing with the oil and ensure the quality.

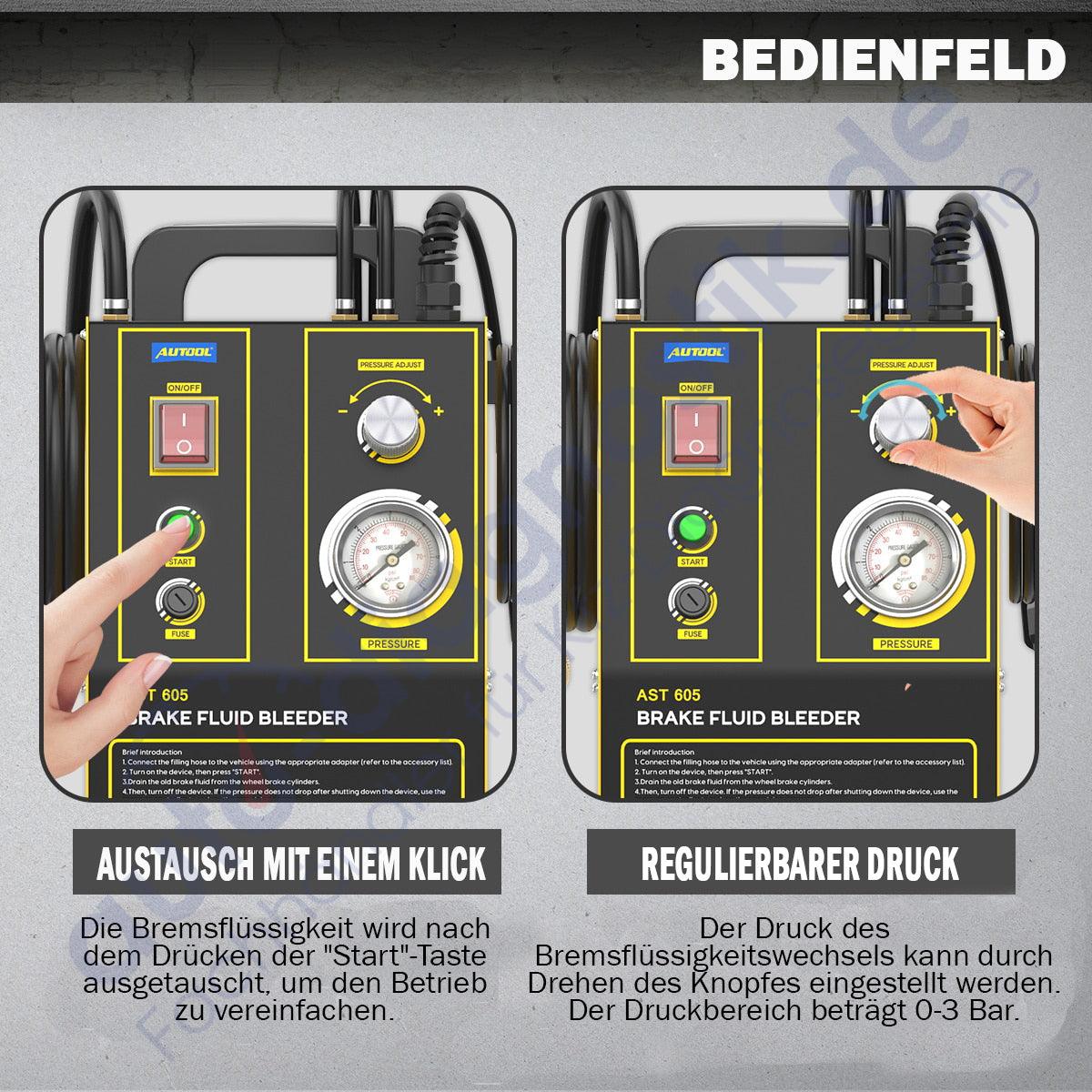

How do you set the working pressure correctly?
When the device leaves the factory, the working pressure of the pressure regulator is set to 1~1.5 bar to ensure that the liquid storage chamber does not deform when changing liquid and ensure the tightness of the secondary seal ring.

In addition, it is also possible to drain or change the fluid at a lower working pressure by adjusting the pressure and size switch.

In special cases when working with a higher working pressure, attention should be paid to excessive pressure setting, which can damage the brake system's master cylinder.

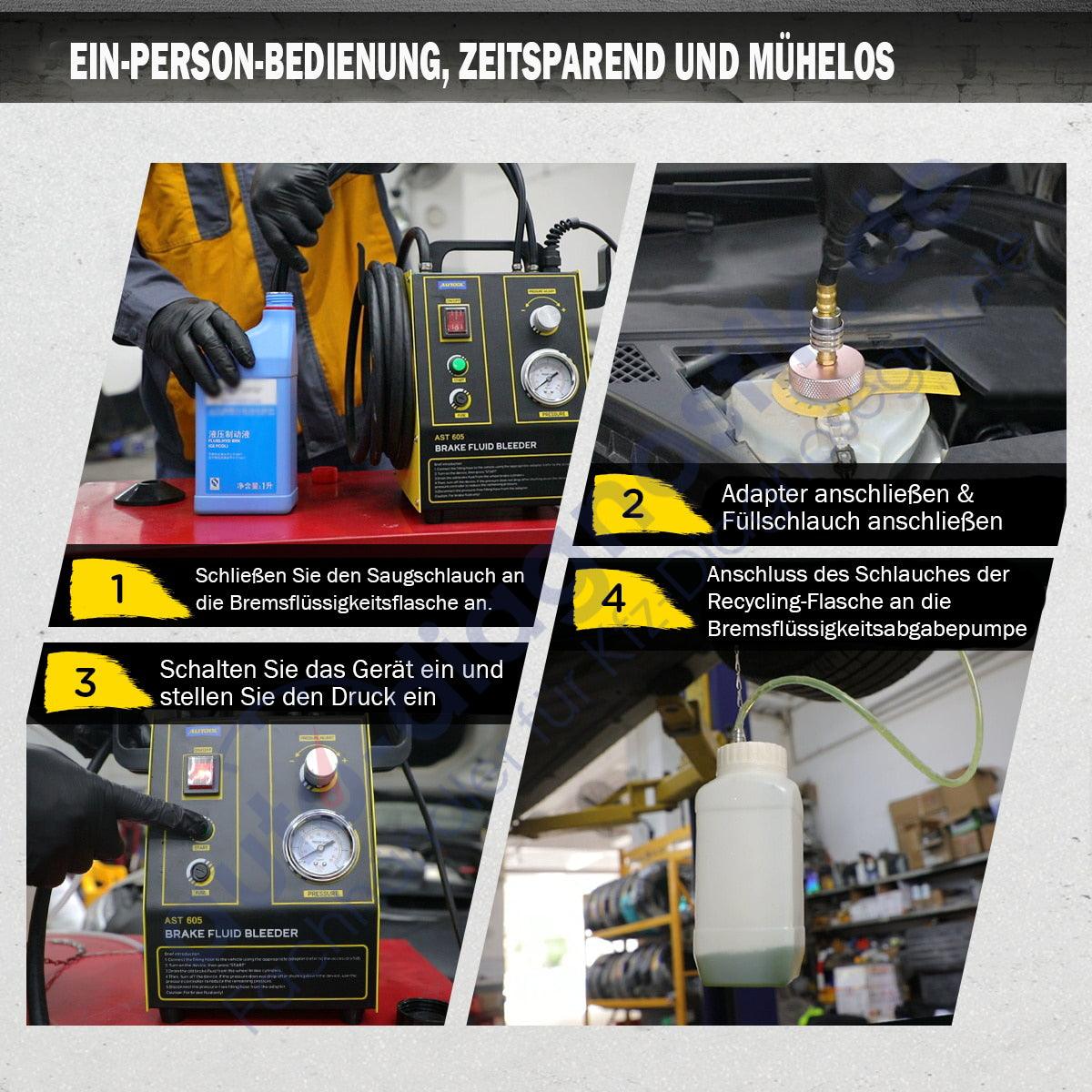

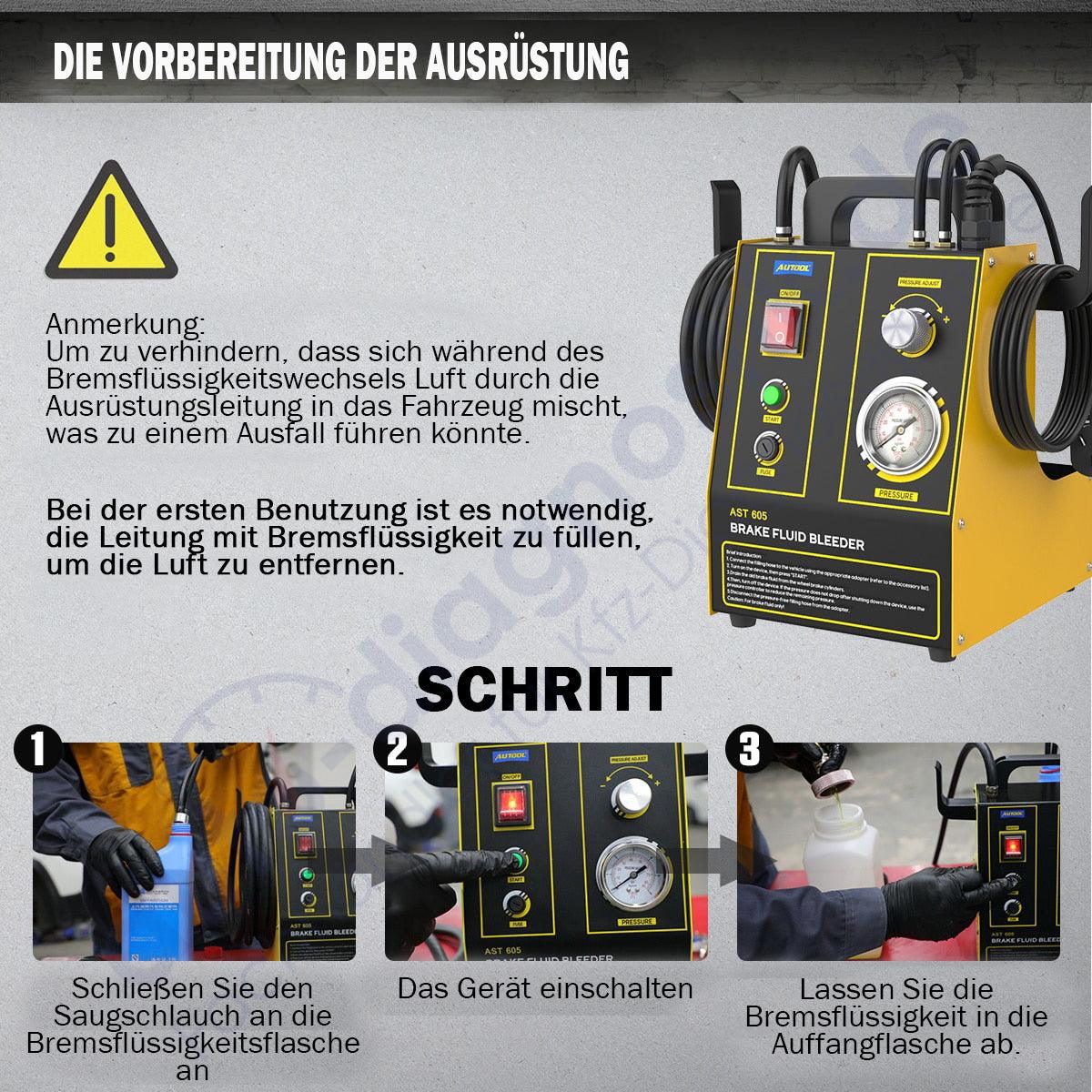

Work steps:
Note: The vehicle does not need to be started for the process.
1. Raise the vehicle to a suitable height so that the drive wheels are off the ground.
2. Connect the one oil pot of the device to the brake cylinder of the vehicle and loosen the brake cylinder bleeder screw to ensure that the oil flows out.
3. Pour 2L of new brake fluid from the filler neck of the device, and find the appropriate model connector to connect it to the master cylinder filler neck.
4. Connect the device to the 12-volt car power supply and turn on the power switch.
5. Press the vacuum switch button.
6. Press the Fuel Switch button to change the brake fluid.
7. During oil change, look at the car brake oil tank mouth, if refueling is too slow, press the acceleration switch button on the device to speed up refueling; if it is too fast, press the delay switch button to slow down.
8. After completing the oil change, the used oil in the device's tank must be drained cleanly. If it is not emptied cleanly, the vacuum pump will be damaged and the oil change cannot be performed.

Danger:
When changing oil, please check each connection for leaks and whether the connection hose is damaged to keep the new oil filler hole clean.

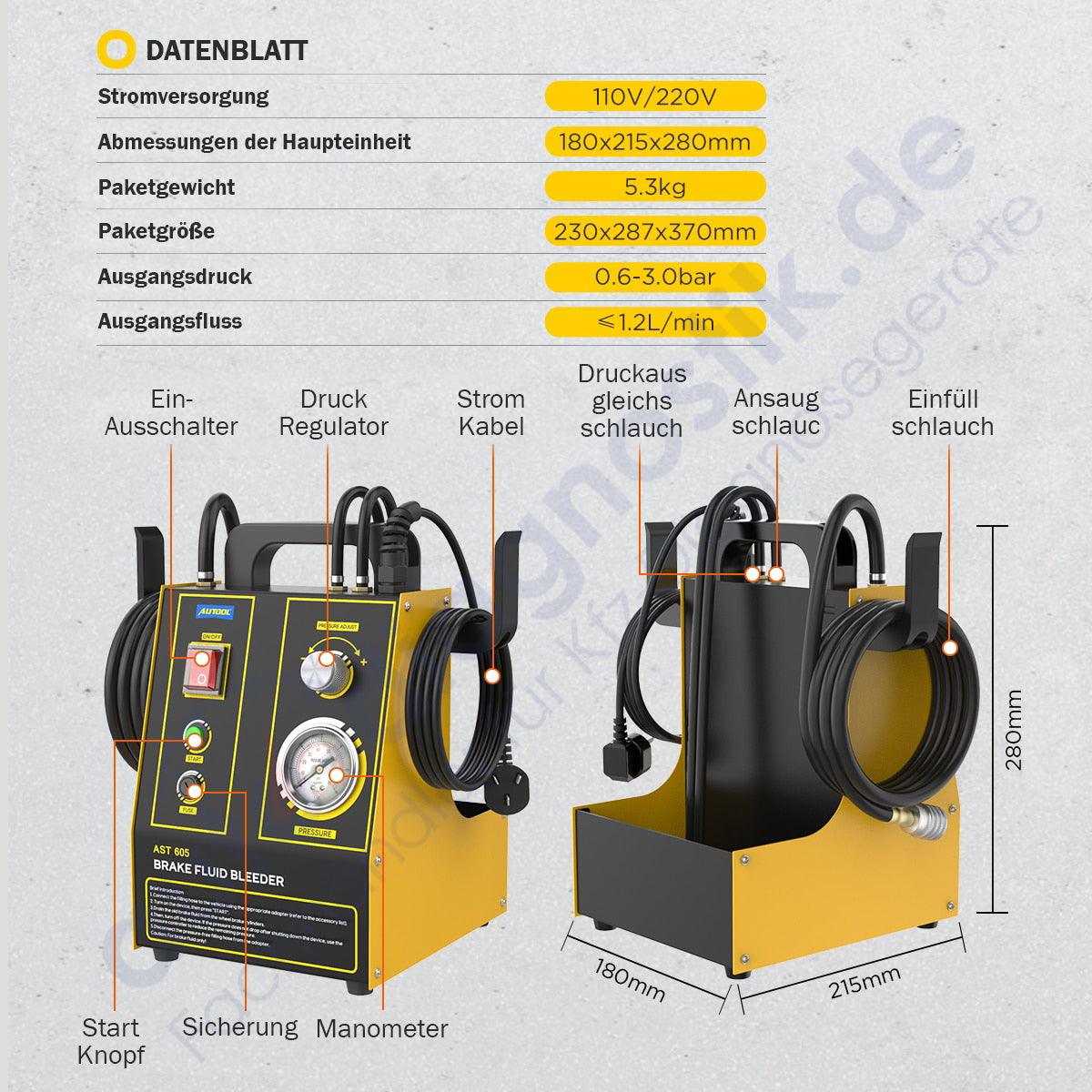

Specifications:
Brand Name: AUTOOL
Oil shortage protection: support
Voltage: 220-240V50/60Hz or 110-120V50/60Hz
Maximum power: 35W

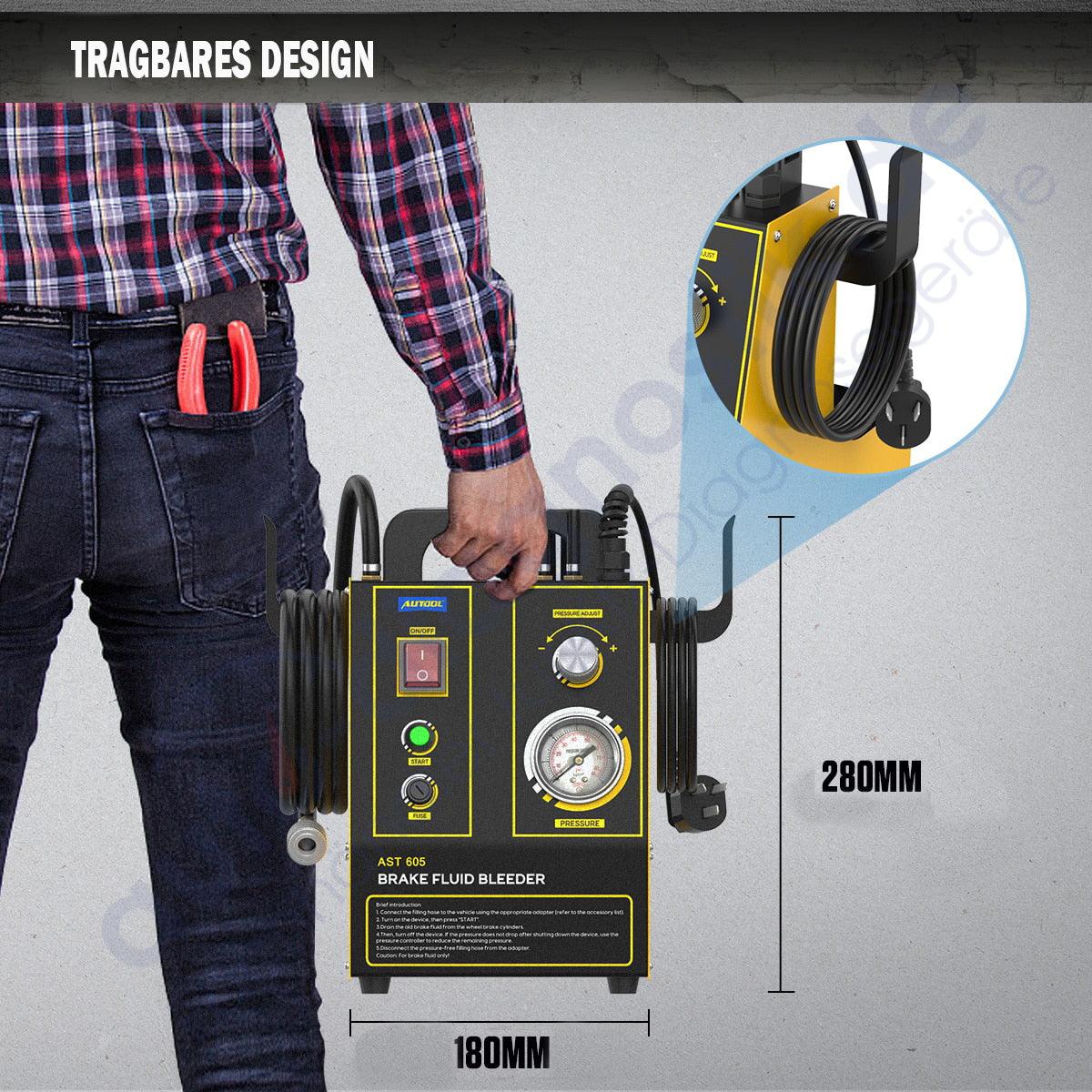

Size: 25x19x28cm
Weight: 5.5kg
Maximum flow: 1.2 liters/min
Working pressure: 0.6-3.0 bar
Length of filling hose: 3.5m
Noise: 70dB

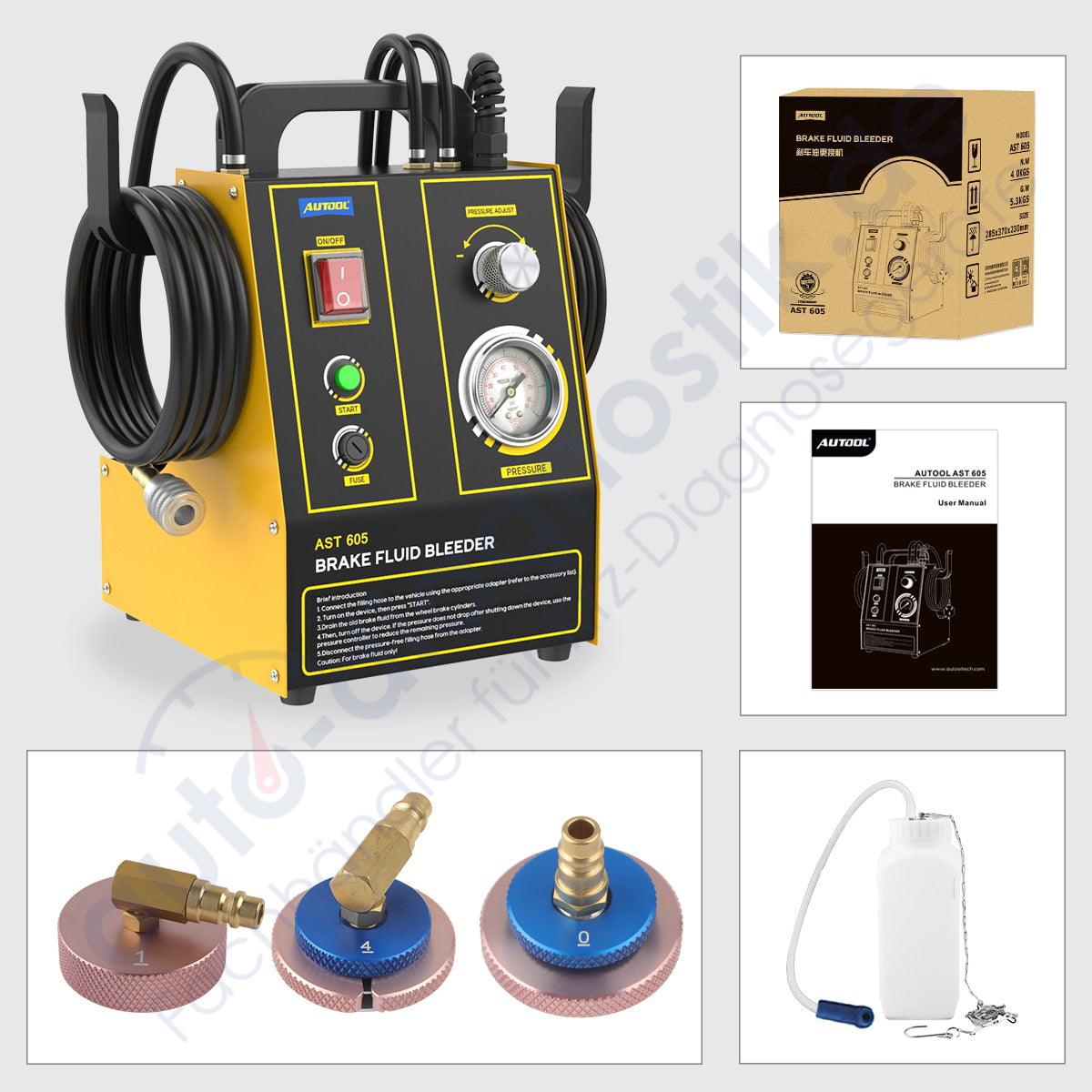

Package list:
- Main unit Autool AST605

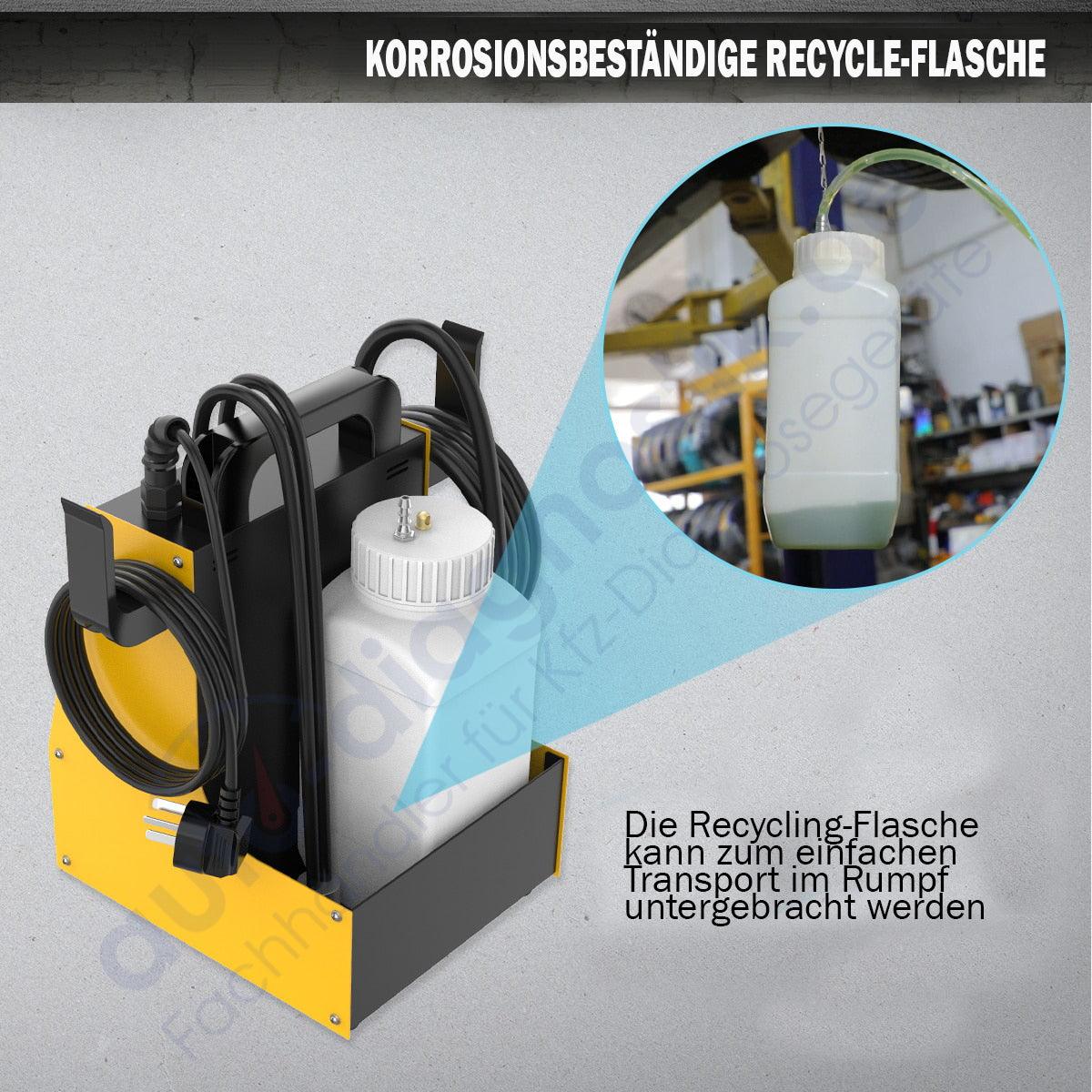

- Recycled bottle

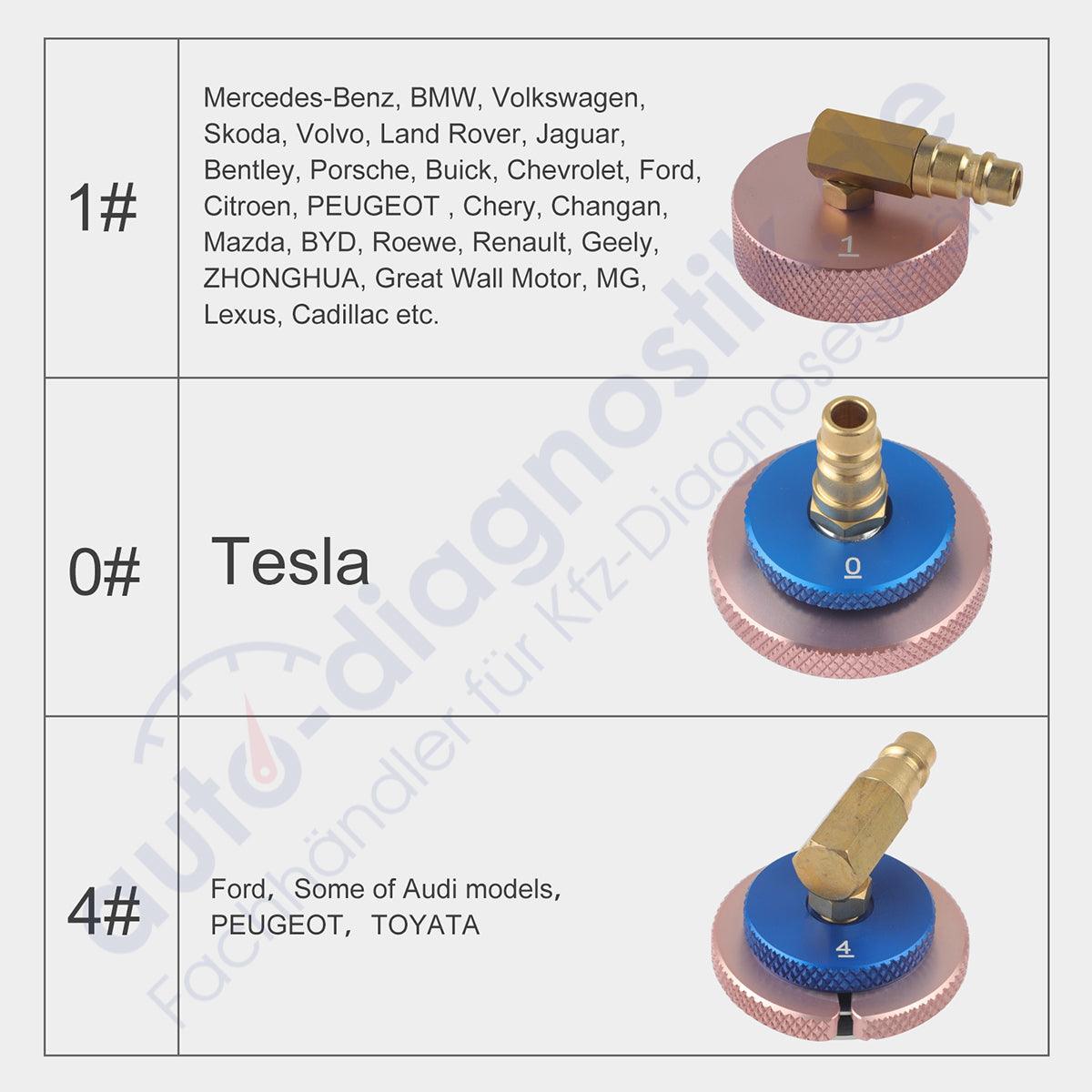

- 3 different hose connections
- User Guide
- Original packaging
