Autel MaxiVideo MV500 Video Endoscope with Tablet & Dual Camera

• ✔ Tablet-style inspection system with Android operating system and Wi-Fi
• ✔ Wireless image transmission up to 30 metres between camera and display
• ✔ Dual side and front camera with 70° wide angle, LED with over 10,000 lux
• ✔ 100% original Autel – from an authorised dealer
• ✔ Buy on invoice available (Klarna or PayPal) – delivery in 1–3 working days

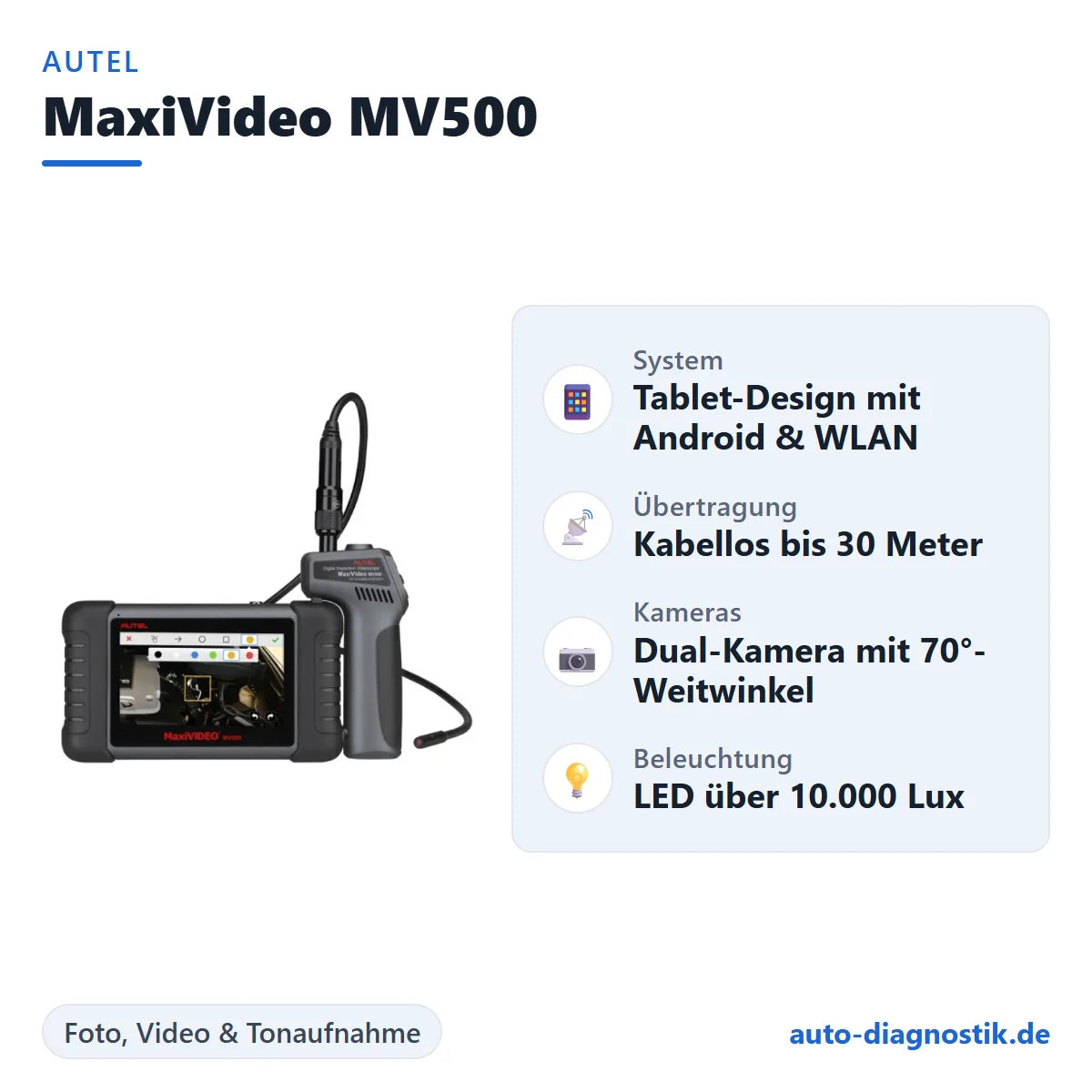

The Autel MaxiVideo MV500 video endoscope is a powerful tablet-style inspection system developed specifically for professional applications in workshops, industry and engineering. Thanks to the wireless connection, images and videos can be transmitted over a distance of up to 30 metres between the camera unit and the display.

The integrated dual side and front camera enables precise inspection of hard-to-reach areas such as engines, cylinder heads, machines or technical components. All recordings are displayed in high quality on the 5-inch LCD touchscreen with a resolution of 1200 × 720 pixels.

With its integrated Android™ operating system and Wi-Fi function, the Autel MV500 also offers all the advantages of a tablet. Inspection data can be conveniently saved, analysed and documented. The powerful LED lighting with over 10,000 lux ensures a clear view even in dark areas.

Features of the Autel MaxiVideo MV500 video endoscope

• Tablet-based inspection system with Android operating system
• Dual side and front camera with 70° wide angle
• 5-inch LCD touchscreen for easy operation
• Wireless image transmission over a distance of up to 30 metres
• Powerful A9 Cortex quad-core processor
• Quick photo and video capture at the push of a button
• Audio and voice recording for documentation
• Micro-HDMI output for playback on monitors
• 7x digital zoom for detailed inspections
• Integrated 16 GB memory
• 10-level adjustable LED lighting with over 10,000 lux
• 1-metre waterproof camera cable
• 8.5 mm camera head for precise recordings

Technical data of the Autel MaxiVideo MV500

Display: 1200 × 720 pixels
Wi-Fi: 802.11 b/g/n
Optimal recording distance: 2.5 – 35.6 cm
Operating temperature tablet: 0 °C to 50 °C
Operating temperature camera unit: 0 °C to 60 °C
Storage temperature: -20 °C to 70 °C
Water resistance: up to 1.6 m (cable and camera head)
Weight tablet: 0.46 kg
Weight camera unit: 0.29 kg

Dimensions

Tablet: 195.2 × 115.6 × 32.4 mm
Camera unit: 180.2 × 73.8 × 33.6 mm

Scope of delivery

– Autel MaxiVideo MV500 video endoscope

– Magnet and hook for retrieving objects

– USB cable

– Recording cable with camera head

– Charger

– Sturdy storage case

– User manual

Autel MV500 endoscope for professional inspections

The Autel MaxiVideo MV500 is ideal for engine inspections, vehicle diagnostics, industrial maintenance and technical testing. The combination of tablet system, wireless image transmission and dual camera technology makes this Autel video endoscope a powerful tool for modern workshops and professional technicians.
