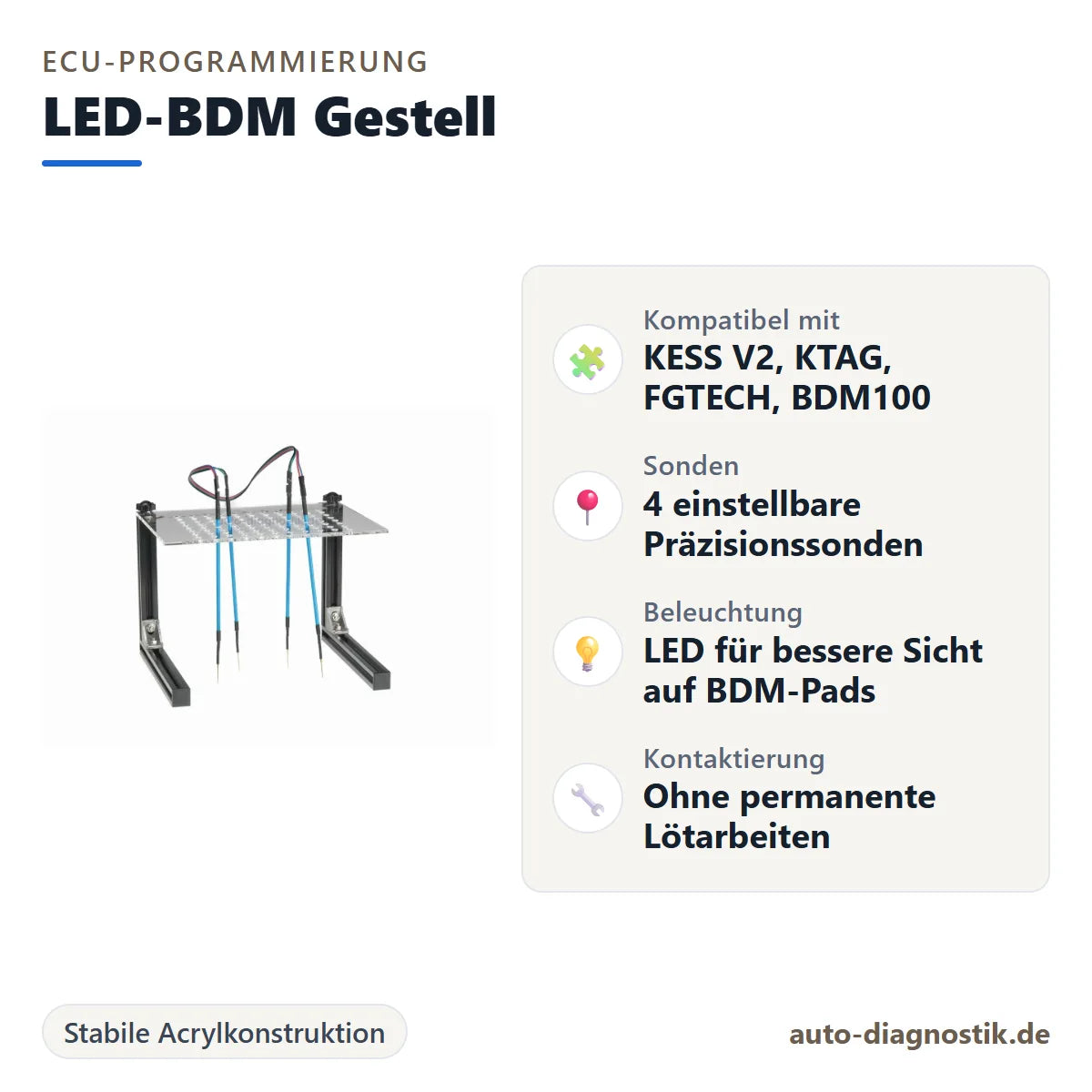

LED-BDM Frame for ECU Programming with LED Illumination & Precision Probes
LED-BDM Frame for ECU Programming with LED Illumination & Precision Probes is backordered and will ship as soon as it is back in stock.
Bessere Sicht auf die BDM-Pads
Freely adjustable for various ECU sizes
Holds sensitive control units securely
Makes contact without permanent modification
LED-BDM Frame for ECU Programming with LED Illumination & Preci...
Description
Description
LED-BDM Frame for Precise ECU Programming and Stable Control Unit Contacting
- ✔ Robust workshop quality for professional ECU work
- ✔ Precise signal contacting via adjustable probe pins
- ✔ Integrated LED illumination for exact positioning
- ✔ Stable construction for secure fixation of sensitive control units
- ✔ Developed for professional BDM and Boot Mode applications
The LED-BDM Frame was specially developed for professional work on open control units. The stable working platform allows for secure positioning of control unit circuit boards during ECU programming, repair, or data recovery.
Thanks to the adjustable probe pins, contact points on different ECU circuit boards can be precisely reached. The integrated LED illumination also improves visibility of small BDM pads and sensitive traces.
This item is an adapter and work accessory for ECU programming and not a diagnostic device or scanner.
Professional Work Platform for BDM and Boot Mode Operations
For many modern control units, direct access via so-called BDM or Boot Mode is required. This involves making precise contact with open circuit boards without the connection being interrupted during the write or read process.
The LED-BDM Frame ensures stable and reproducible contacting of the BDM pads. This significantly reduces risks due to slipping contacts or unstable connections.
Why High-Quality Contacting is Crucial
During ECU programming, even minimal contact errors can lead to transmission problems or corrupted data. Especially with sensitive control units, precise signal transmission is crucial.
The high-quality probe pins and stable construction support a secure connection between the control unit and programming hardware. This makes the frame ideal for professional workshop environments.
Compatibility with Professional Programming and Diagnostic Systems
The LED-BDM Frame is suitable for numerous professional programming and bench systems.
- Compatible with KESS V2
- Compatible with KTAG
- Compatible with FGTECH / Galletto
- Compatible with BDM100
- Compatible with KTM100
- Compatible with DIMSPORT Systems
Compatibility is model-dependent and control unit-dependent.
Optimized for Sensitive Control Unit Circuit Boards
Open ECU circuit boards are sensitive to vibrations, loss of contact, and poor ground connections. The stable acrylic frame reduces movement during work and supports precise positioning of the probes.
Especially with multi-layer circuit boards and small contact areas, the integrated LED illumination significantly improves working conditions.
Technical Advantages of the LED-BDM Frame
- Stable acrylic construction with durable workshop quality
- Four flexibly adjustable precision probes
- LED illumination for better visibility of BDM pads
- Suitable for various ECU sizes and board layouts
- Secure contacting without permanent soldering
- Improved stability compared to simple universal holders
Why Cheap Solutions Often Cause Problems
Questions about this product? Send us a message.
Frequently asked questions
How does it differ from the frame with 22 adapters?
How does it differ from the frame with 22 adapters?
This frame is the basic set with four probe pins and four connecting cables. The larger frame additionally includes 22 adapters for different control unit platforms.
Is a circuit board included in the scope of delivery?
Is a circuit board included in the scope of delivery?
No. Included are the LED BDM frame with acrylic frame, four adjustable probe pins and four connecting cables. A PCB circuit board is not included.
Why not a cheap solution?
Why not a cheap solution?
Simple holders often lead to unstable contacts and signal losses. When writing to a control unit, a loose contact can corrupt the data. That is why mechanical stability matters here.
Does the frame itself carry out the programming?
Does the frame itself carry out the programming?
No. The frame is a working rig for making contact. Reading and writing is handled by the connected programming device, such as KTAG, KESS or FGTECH.
