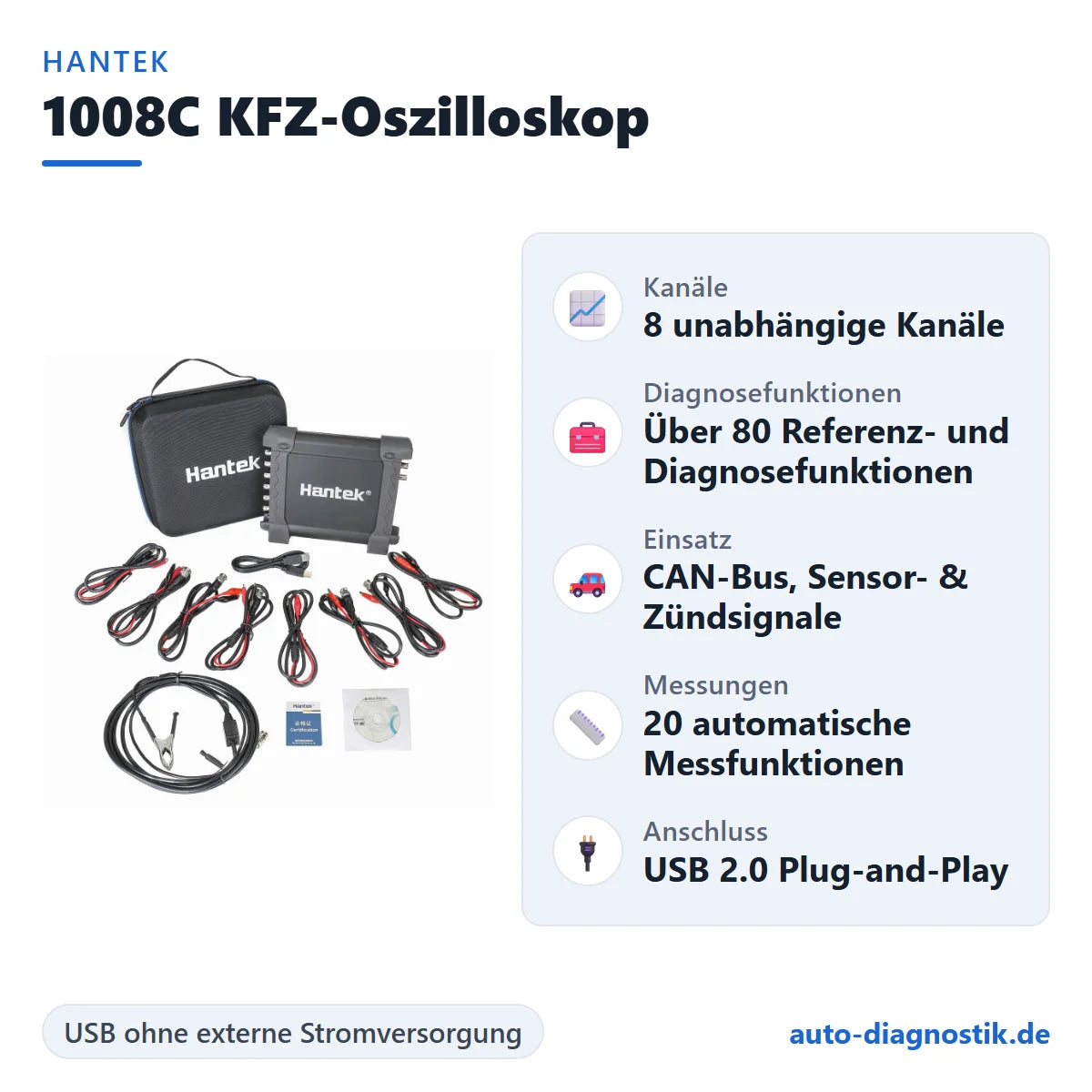

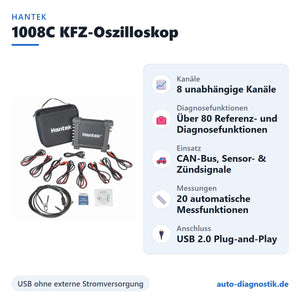

Hantek 1008C Automotive Oscilloscope 8 Channel Diagnostic Device for Workshop Diagnostics

Hantek 1008C 8-Channel Vehicle Diagnostic Oscilloscope – Versatile Diagnostic Tool for Automotive Technicians

The Hantek 1008C is an 8-channel oscilloscope specifically designed for vehicle diagnostics. It offers over 80 diagnostic functions, including ignition, sensors, bus detection, starter, and charging circuits. With its video help function, comprehensive waveform recording, and the ability to simulate camshaft and crankshaft signals, this instrument is an indispensable tool for any automotive technician.

Key features

• 3-in-1 functionality: Vehicle diagnostics, oscilloscope and signal generator integrated into one device.
• 8-channel signal measurement: Simultaneous measurement of 8 signals with independent voltage setting for each channel.
• Automatic measurement: 20 different measurement methods that can be accessed at the touch of a button.
• Reference waveform: Over 80 types of standard reference waveforms for comparison.
• Waveform recording: Support for recording and playing back waveforms without time limits.
• Screenshots and data storage: Saving waveforms and diagnostic reports in various formats (.txt, .csv, .rfc, .xls, .doc, .jpg).
• USB communication: USB 2.0 plug-and-play, no additional power supply required.
• Multilingual user interface: Supports German, English and Chinese, switchable.

Practical diagnostic functions in everyday workshop use

The Hantek 1008C is specifically designed for practical workshop use. Its eight independent channels allow for the simultaneous acquisition and analysis of multiple sensor signals. This is particularly important, for example, when diagnosing modern engine control units where various sensors interact with each other.

The Hantek 1008C can be used to analyze the following signals in parallel, for example:

• Crankshaft sensor
• Camshaft sensor
• Fuel injectors
• Ignition coils
• ABS sensors
• CAN bus signals
• Lambda sensors

Parallel measurement is particularly helpful for intermittent errors. The Hantek 1008C can display multiple signal waveforms simultaneously, making timing deviations or synchronization problems visible.

Reference waveforms for rapid fault detection

A major advantage of the Hantek 1008C is its integrated library of more than 80 reference waveforms. These reference values represent typical signal waveforms as they occur with intact components.

During the diagnostic process, the technician can directly compare the currently measured waveform with a reference. This allows deviations to be detected much faster. This significantly reduces diagnostic times and makes it easier, especially for less experienced technicians, to interpret complex measurement signals.

The Hantek 1008C is therefore suitable for both independent workshops and specialized diagnostic companies that regularly analyze electronic fault patterns.

Technical data

Software and data analysis

The diagnostic software included with the Hantek 1008C enables comprehensive analysis of the recorded signals. After measurement, waveforms can be saved, compared, or exported. This is particularly helpful for complex fault analyses or for documenting diagnostic results.

The export function to various formats such as CSV or XLS allows for easy further processing of measurement data. Workshops can use this, for example, to create diagnostic reports or archive measurement data.

Another advantage of the Hantek 1008C 's software is the easy visualization of signal waveforms. The display can be customized, for example by changing colors or brightness levels. This makes it possible to clearly distinguish between multiple signals simultaneously.

Signal simulation for advanced diagnostic tests

A particularly useful feature of the Hantek 1008C is its integrated signal generator function. This allows for the simulation of crankshaft and camshaft signals.

This function is used, for example, to test control units or sensor wiring. If a sensor is suspected as the source of the fault, the signal can be simulated. If the control unit reacts correctly, the fault likely lies with the sensor itself.

The Hantek 1008C is therefore suitable not only for measurements, but also for targeted diagnostic experiments within vehicle electronics.

Scope of delivery

• Hantek 1008C Oscilloscope
• Instruction CD
• Battery terminal connection

Note: The PC software is compatible with Windows XP/7/8/10 and supports 32-bit and 64-bit systems. Multilingual support ensures ease of use for users in different regions.

Importance of modern oscilloscope diagnostics in automotive engineering

Why oscilloscopes are becoming increasingly important in workshops

With the increasing electrification of modern vehicles, the diagnosis of electronic signals is becoming ever more important. Many faults can no longer be detected solely using OBD diagnostic tools.

The Hantek 1008C enables direct analysis of the electrical signals in the vehicle. This allows for the detection of faults that are not stored in the fault memory.

Especially in the case of sporadic problems such as misfires, sensor malfunctions or communication problems in the CAN bus, an oscilloscope like the Hantek 1008C provides crucial information.

Workshop advantages through multi-channel measurement

The eight channels of the Hantek 1008C offer a decisive advantage over simple oscilloscopes. Multiple sensors can be measured simultaneously, making complex relationships visible.

For example, the crankshaft signal, camshaft signal, and injection signal can be analyzed simultaneously. This allows for the rapid detection of synchronization deviations.

The Hantek 1008C is therefore a valuable tool for workshops that want to perform professional vehicle diagnostics at a technically sound level.
