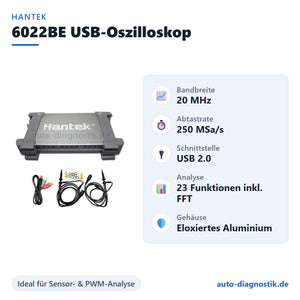

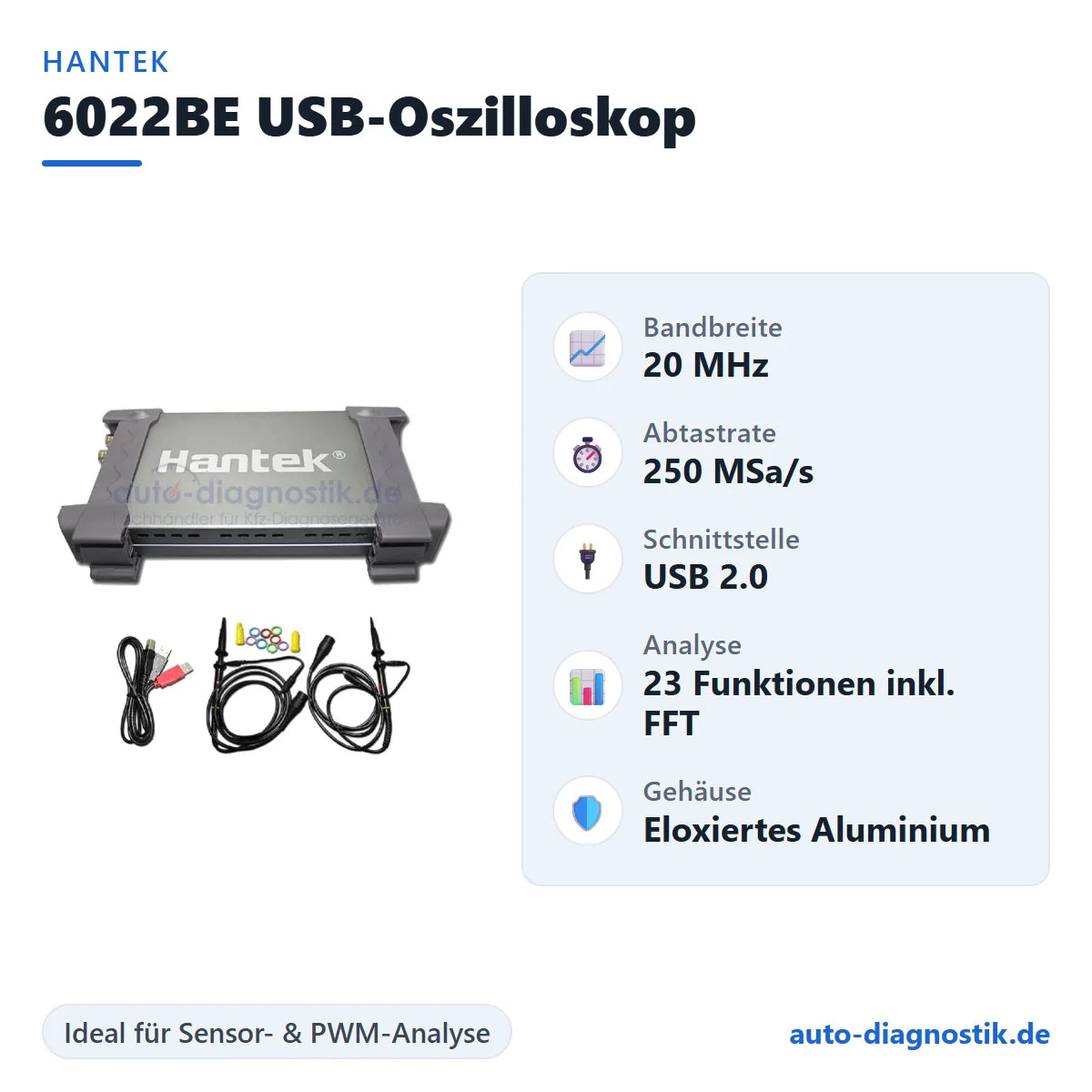

Hantek 6022BE USB Oscilloscope 20MHz for Workshop Diagnostics & Signal Analysis

Hantek 6022BE USB oscilloscope – 20MHz bandwidth, 250MSa/s sampling rate

The Hantek 6022BE is a portable USB oscilloscope that offers an excellent combination of high performance and stylish design. With a bandwidth of 20 MHz and a sampling rate of 250 MSa/s, it is ideal for production line maintenance, technical applications, and educational use. The robust anodized aluminum housing not only provides a premium look but also excellent heat resistance and wear resistance.

Applications of the Hantek 6022BE in technology and workshop

The Hantek 6022BE is used in numerous technical fields where precise analysis of electrical signals is required. Particularly in electronics development, training workshops, and the repair of control units, the Hantek 6022BE offers a compact and cost-effective measurement solution.

Thanks to its USB connection, the Hantek 6022BE is particularly suitable for mobile work environments. Technicians can connect the Hantek 6022BE directly to a laptop and perform measurements on electronic assemblies, sensors, or communication lines. This allows for direct signal analysis, especially during diagnostic work on modern vehicles or industrial control systems.

The Hantek 6022BE also plays an important role in training. Students and trainees use it to learn the fundamentals of signal processing, waveform analysis, and digital measurement technology.

Key features

• High-quality industrial design: Anodized aluminum housing characterized by high hardness, heat resistance and wear resistance.
• 20MHz bandwidth and 250MSa/s sampling rate: High performance for precise signal measurement.
• Standard USBXI™ interface: Easily plugs into the USBXI™ enclosure to form a combination device.
• USB 2.0 interface: No external power source required, simply connect to the computer via USB.
• Portable design: Compact dimensions (205mm x 120mm x 35mm) make the device easy to transport and ideal for use on the go.
• Wide operating system compatibility: Supports Windows 10, 8, 7, Vista, XP and NT.
• 23 measurement functions: Offers functions such as PASS/FAIL check, waveform addition, subtraction, multiplication and FFT analysis.
• Multiple storage options: Save the waveform as a text file, graphic file (jpg/bmp) or MS-Excel/Word file.
• Expandability: A computer can connect multiple DSO devices to expand the number of channels.

Technical Functioning of a USB Oscilloscope

A USB oscilloscope like the Hantek 6022BE operates on the principle of digital signal sampling. Analog electrical signals are picked up via the input channels and then digitized by an analog-to-digital converter. This digital data is then transmitted to the software on the connected computer.

The Hantek 6022BE software displays the measured signals as waveforms. Users can precisely analyze frequencies, voltage waveforms, signal peaks, and interference. The Hantek 6022BE is a particularly helpful tool for troubleshooting electronic circuits or investigating communication protocols.

Thanks to its high sampling rate of 250 MSa/s, the Hantek 6022BE can reliably display even rapidly changing signals. This is crucial when short signal pulses or digital communication signals need to be analyzed.

Practical benefits for troubleshooting in electronic systems

The Hantek 6022BE is particularly suitable for diagnostic work on electronic assemblies. In workshops, oscilloscopes are used to visualize signal waveforms from sensors, actuators, and control lines.

The Hantek 6022BE can be used to perform measurements such as:

• Analysis of sensor signals
• Measurement of PWM signals
• Investigation of power supplies
• Analysis of communication signals
• Detection of signal interference

The graphical representation of the signals allows technicians to identify faults more quickly. For example, broken signal lines, defective sensors, or unstable power supplies can be detected rapidly.

Software functions and data analysis

The Hantek 6022BE software offers comprehensive analysis functions. In addition to the simple display of signal waveforms, mathematical functions are also available. These include, for example, waveform addition, subtraction, and multiplication.

The integrated FFT analysis is particularly interesting. This function allows the Hantek 6022BE to analyze signals in the frequency domain. This makes it possible, for example, to visualize interference frequencies or harmonic distortions.

The measurement data can be saved and exported directly. The Hantek 6022BE supports multiple file formats, including text files, image files, and Office documents. This makes it easy to document or further process measurement results.

Technical data

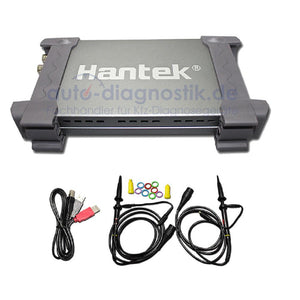

Scope of delivery

• Hantek 6022BE USB Oscilloscope
• CD with software
• test probes
• manual
• USB cable

Note: The software supports multiple operating systems, including Windows 10, 8, 7, Vista, XP, and NT. Installation is simple as no additional drivers are required.

Efficient signal diagnostics with the Hantek 6022BE

The Hantek 6022BE offers a powerful yet compact solution for analyzing electrical signals. Its combination of high sampling rate, comprehensive software features, and easy USB connectivity makes the Hantek 6022BE suitable for both professional technicians and educational purposes.

Thanks to its flexible application possibilities, the Hantek 6022BE can be used in laboratories, workshops, and technical training facilities. Its ease of use, comprehensive analysis functions, and portable design make the Hantek 6022BE a versatile tool for modern electronics diagnostics.
