Hantek 6074BD USB Oscilloscope 4 Channel with Waveform Generator for Diagnostics

Hantek 6074BD 4-Channel Oscilloscope with Arbitrary Waveform Generator – 250MHz Bandwidth, 1GSa/s Sampling Rate

The Hantek 6074BD is a powerful 4-channel USB oscilloscope with an integrated arbitrary waveform generator, offering a cost-effective alternative to desktop oscilloscopes. With a 250 MHz bandwidth, a real-time sampling rate of 1 GSa/s, and versatile measurement functions, this oscilloscope is ideal for engineering applications, repairs, and laboratory work. Its compact design, featuring a robust anodized aluminum housing, ensures excellent heat resistance and abrasion resistance.

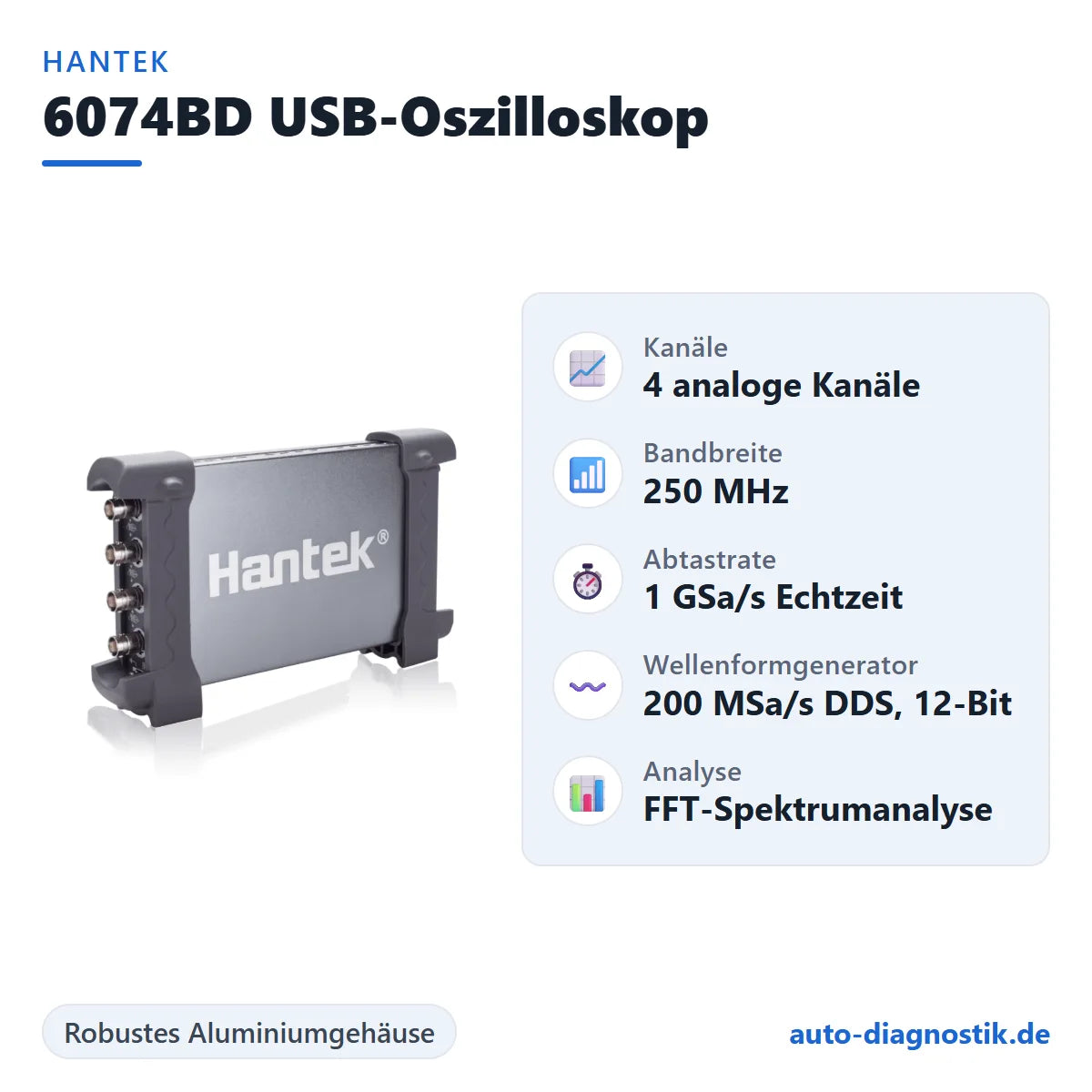

Key features

• 4-channel oscilloscope: Offers 4 independent analog channels for precise measurements.
• Arbitrary waveform generator: 200MSa/s DDS, 12-bit vertical resolution, various standard waveforms and user-defined arbitrary waveforms.
• High performance: 250MHz bandwidth, 1GSa/s sampling rate and 2mV-10V/DIV input sensitivity for a wide range of signal analysis.
• USB2.0 interface: Plug-and-play function without an additional power source, simply connect to the PC.
• Compact and robust design: Anodized aluminum housing for good heat resistance and abrasion resistance.
• Serial bus triggering and decoding: Supports various bus protocols and displays information in tabular form.
• Automatic measurement functions: Over 20 automatic measurement functions, including PASS/FAIL tests.
• Expandable: A computer can connect multiple oscilloscopes to increase the number of channels.
• Software compatibility: Supports Windows 10, 8 and 7.

Technical data

Scope of delivery

• Hantek 6074BD Oscilloscope
• Passive probes
• BNC to BNC cable
• CD with software
• USB cable
• Crocodile clip leads

Note: The Hantek 6074BD is ideal for technical applications and laboratory work, offering high performance in a compact design. The software supports Windows 10, 8, and 7, and allows for easy installation and operation.

Technical Functionality of the Hantek 6074BD

Signal processing and bandwidth performance

The Hantek 6074BD operates with a maximum bandwidth of 250 MHz and a real-time sampling rate of 1 GSa/s. This combination is crucial for accurately representing rapid signal changes. A sufficient sampling rate is particularly necessary for digital circuits, control units, or high-frequency signals to avoid signal distortion or aliasing.

In practical use, this means that the Hantek 6074BD can also detect very rapid voltage changes. Signals from sensors, microcontrollers, or communication interfaces can thus be analyzed in detail. The four independent channels allow for the simultaneous monitoring of multiple signal sources, such as input signal, output signal, and reference voltage.

Arbitrary waveform generator in practical use

A key feature of the Hantek 6074BD is its integrated arbitrary waveform generator. This allows not only the output of classic waveforms such as sine, square, or triangle waves, but also individually defined waveforms.

This allows the Hantek 6074BD to be actively used for troubleshooting. In the workshop or laboratory, for example, sensor signals can be simulated, control lines tested, or electronic assemblies selectively stimulated with specific signals. This function is particularly helpful in the development of electronic control systems or when testing input circuits.

Application areas of the Hantek 6074BD

Electronics development and prototype construction

The Hantek 6074BD is frequently used in development environments to analyze signal waveforms from microcontrollers, digital interfaces, or analog sensors. Its four channels allow for the simultaneous comparison of multiple signals, simplifying the debugging of complex electronic systems.

The Hantek 6074BD also plays an important role in the development of embedded systems. Developers can use it to check communication protocols, clock lines, or voltage regulators, thus detecting errors early on.

Repair and troubleshooting of electronic devices

When repairing electronic devices, the Hantek 6074BD enables precise analysis of voltage and signal waveforms. Defective components such as voltage regulators, capacitors, or driver stages can often be quickly identified by their atypical signal shapes.

Especially with complex devices such as power supplies, control boards or industrial electronics, the Hantek 6074BD provides valuable information about the behavior of the circuit during operation.

Analysis of serial communication protocols

Thanks to integrated bus triggering and decoding functions, the Hantek 6074BD can also analyze serial communication protocols. These include, for example, I²C, SPI, and UART. These functions are particularly important in modern electronic systems, as many components communicate via serial interfaces.

The Hantek 6074BD software presents decoded data in clear tables, enabling developers or technicians to identify communication problems more quickly.

Software integration and PC-based analysis

PC-based measurement environment

Since the Hantek 6074BD is designed as a USB oscilloscope, the display and analysis of measurement data is performed via PC software. This solution offers several advantages over traditional desktop devices.

Firstly, the PC software allows for a larger display area, enabling more detailed analysis of signal waveforms. Secondly, measurement data can be directly saved, exported, or documented.

Data export and documentation

Another advantage of the Hantek 6074BD lies in its extensive export functions. Measurement data can be saved as Excel files, for example. This allows signal waveforms to be further processed in other analysis programs.

Additionally, screenshots can be created in BMP or JPG format. These functions are particularly helpful for technical documentation or test reports.

Advantages of four-channel measurement technology

Comparison of multiple signal sources

With four analog inputs, the Hantek 6074BD offers significantly more flexibility than simple two-channel oscilloscopes. Many applications require monitoring multiple signals simultaneously, such as input signals, output signals, and reference voltages.

Measuring multiple signals in parallel makes it easier to detect signal delays, phase shifts, or timing problems.

Mathematical signal processing

The Hantek 6074BD supports various mathematical operations such as addition, subtraction, multiplication, and division. These functions allow for the direct analysis of complex signal relationships.

Additionally, an FFT spectrum analyzer is available, which can be used to visualize the frequency components of a signal. This is particularly helpful when analyzing interference signals or harmonics.

Why the Hantek 6074BD is a powerful alternative to table oscilloscopes

Compact design and mobility

A major advantage of the Hantek 6074BD lies in its compact design. Compared to traditional desktop oscilloscopes, the device requires significantly less space. This makes it suitable for mobile applications or smaller workshops.

The Hantek 6074BD can be easily operated with a laptop via USB connection. This makes the device particularly flexible in its use.

Cost efficiency and scope of services

Despite its compact design, the Hantek 6074BD offers high measurement performance. The combination of four channels, high bandwidth, FFT analysis, and an integrated waveform generator is relatively rare in this price range.

For many applications in electronics development, repair technology or vehicle diagnostics, the Hantek 6074BD therefore represents an economically viable alternative to significantly more expensive desktop devices.

Professional measurement analysis with the Hantek 6074BD in the laboratory and workshop

The Hantek 6074BD combines high measurement performance with a flexible PC-based analysis platform. Thanks to its four channels, high sampling rate, and integrated waveform generator, the device is suitable for numerous technical applications.

Whether in electronics development, repair shops, or the analysis of modern vehicle systems – the Hantek 6074BD enables precise display and evaluation of electrical signals. Thanks to its comprehensive software functions and compact design, the device represents a versatile solution for professional signal diagnostics.
