Hantek HDG3022B Signal Generator 2CH 2M 25MHz 300MSa/s USB Host Device

Hantek HDG3022B Arbitrary Waveform Generator for Precise Signal Testing up to 100 MHz

• ✔ DDS technology for stable and low-distortion signal generation
• ✔ Two independent channels for flexible measurement and test tasks
• ✔ High 16-bit resolution for precise waveforms
• ✔ Extensive modulation functions for development and research
• ✔ Ideal for laboratory, electronics development, education, and industry

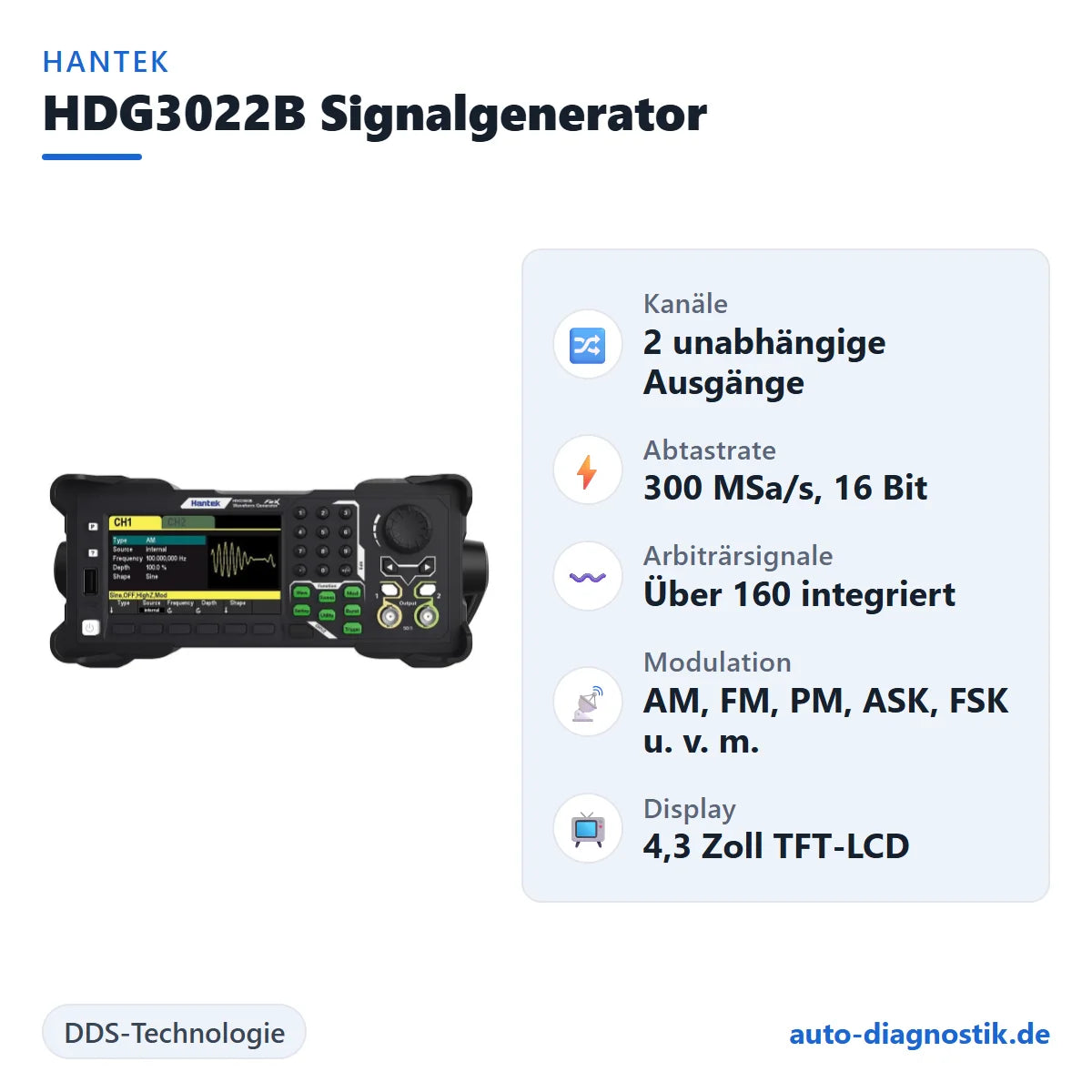

The Hantek HDG3022B Arbitrary Waveform Generator is a versatile measuring device for professional applications in electronics development, research, and industrial signal technology. Thanks to modern DDS technology, the device generates highly precise signals with high frequency stability and low distortion.

With two independent output channels, a sampling rate of up to 300 MSa/s, and a vertical resolution of 16 bits, the generator is suitable for both simple functional tests and demanding development and validation tasks.

Precise DDS Technology for Stable Signals

The integrated Direct Digital Synthesis technology enables extremely accurate digital signal generation. Frequencies can be set with a resolution of up to 1 µHz, which allows even highly precise applications to be implemented reliably.

The DDS architecture ensures high signal quality and reduces unwanted distortions. This allows electronic assemblies, communication systems, and circuits to be tested under reproducible conditions.

5 Functions in One Device

The Hantek HDG3022B combines several measurement and signal functions in one compact system:

• Arbitrary waveform generator
• Function generator
• Pulse generator
• Harmonic generator
• Frequency counter

This means the device can be used flexibly for development, education, laboratory applications, and production environments.

Wide Range of Waveforms

Over 160 integrated waveforms are directly available. In addition to classic waveforms such as sine, square, triangle, and pulse, complex arbitrary signals can also be generated.

These include ECG signals, exponential curves, Lorentz curves, and numerous other test signals for special development tasks.

Extensive Modulation Options

The arbitrary waveform generator supports numerous modulation methods for communication and signal tests.

• AM
• FM
• PM
• ASK
• FSK
• PSK
• BPSK
• QPSK

These functions enable the simulation of a wide variety of transmission and communication signals for research, education, and development.

Clear Color Display and Comfortable Operation

The integrated 4.3-inch TFT color display provides a clear representation of all important parameters. Frequency, amplitude, offset, and modulation can be adjusted quickly and clearly.

The intuitive user interface facilitates daily work in the laboratory and shortens setup time for recurring measurement tasks.

Technical Data

Typical Applications

• Electronics development
• Circuit analysis
• Filter tests
• Signal processing
• Communication technology
• Research and education
• Industrial and laboratory applications

Scope of Delivery

• Hantek HDG3022B Arbitrary Waveform Generator
• Instruction CD
• Battery clamp connection
