Motorcycle diagnostic device Harley Davidson ISCAN professional diagnostic device motorcycles NEW
✓ High reliability and long service life
✓ Easy handling and user-friendliness
✓ Fast and competent customer service
✓ 12 months warranty
Motorcycle diagnostic device Harley Davidson ISCAN professional diagnostic device motorcycles NEW is backordered and will ship as soon as it is back in stock.
Motorcycle diagnostic device Harley Davidson ISCAN professional dia...
Description
Description

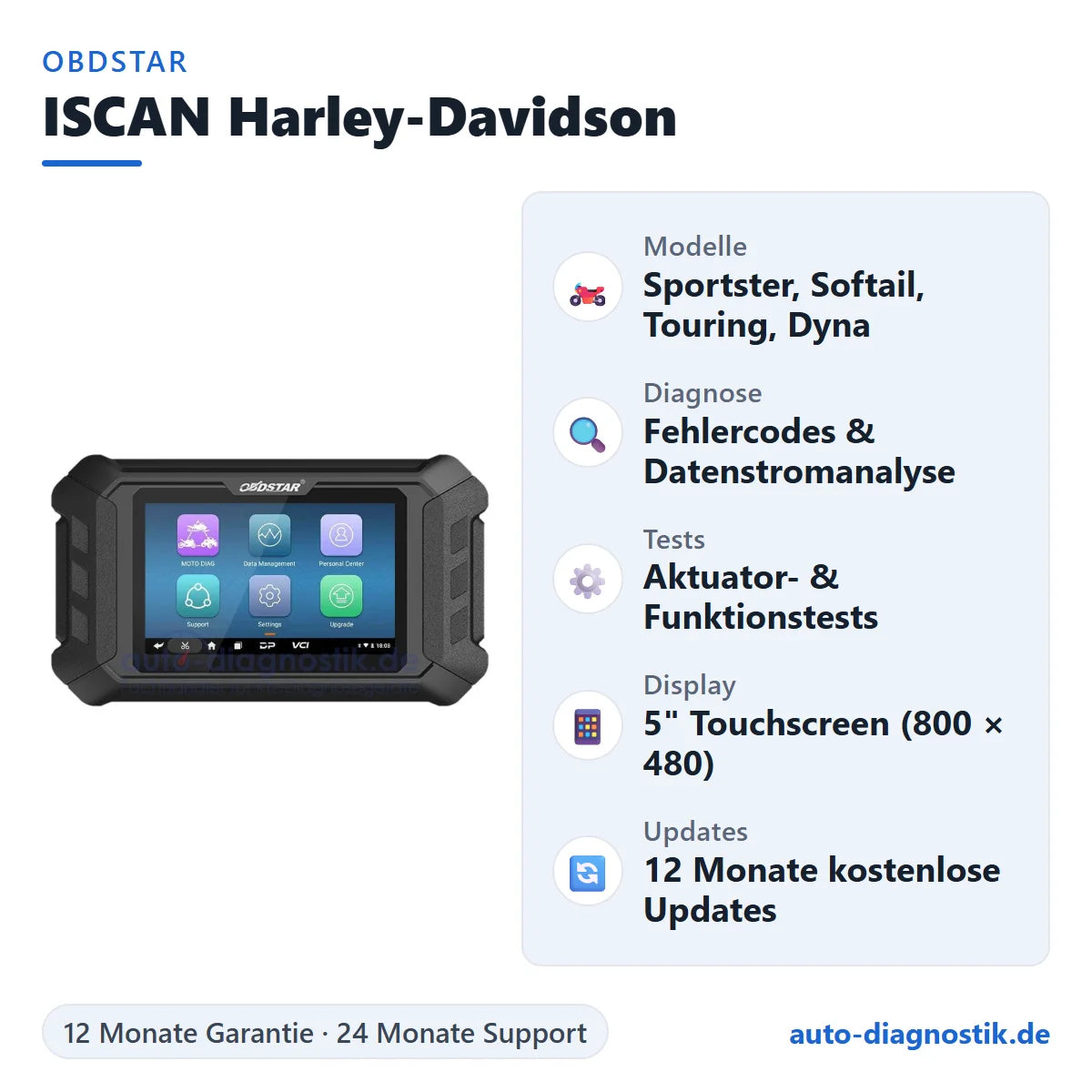

ISCAN HARLEY-DAVIDSON diagnostic tool for professional motorcycle diagnostics
Product description:
ISCAN HARLEY-DAVIDSON is a portable tablet with superior performance and an industrial design specifically for HARLEY-DAVIDSON motorcycles. It represents a new generation of intelligent motorcycle diagnostic tools tailored to customers. Based on the RK3128 quad-core processor and equipped with a 5.0-inch capacitive touchscreen, it offers customers a professional diagnostic experience.
Supports HARLEY-DAVIDSON diagnostics and key programming
Features:
1. New Android 5.1.1 Operating System;
2. Simple and intuitive menu navigation allows you to quickly master the operation of the device;
3. Offer complete diagnostic functions including code reading, code clearing, data flow, action testing, adjustment, coding, etc.;
4. Menu random selection is more convenient and faster;
5. Recording and playback of real-time data flow, quickly and accurately locating sensor and component faults;
6. Wi-Fi connection to the internet, one-click software upgrade;
7. One-click remote function, OBDSTAR technical personnel remote support.
Extended function:
1. The initial troubleshooting guide, help data, technical bulletin, diagnostic socket, etc. help you to diagnose accurately and efficiently;
2. Diverse data flow display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze errors;
3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, service light reset, CO setting, idle speed setting, air/air ratio reset, ABS control unit setting, EOL mode, transmission memory reset, computer memory clearing, etc.
Motorcycle/Snowmobile/ATV/UTV Support Series HARLEY-DAVIDSON
Motorcycle key programming supports HARLEY-DAVIDSON series
Specification:
Operating system: Android 5.1.1
CPU: RK3128 quad-core ARM Cortex A7
Battery: 2600mA, rechargeable polymer lithium battery
Expandable memory card: 32GB Micro-SD (TF) card supported
LCD: 5.0 inches
LCD resolution: 800*480
Touchscreen: Capacitive touchscreen
Wifi: Supported Operating temperature: -20°C ~55°C (14°F 131°F)
Storage temperature: -20°C ~70°C (-4°F 158°F)
Weight: Approximately 700g
Dimensions: 198mm*115mm*31mm
Condition: NEW!!!
Scope of delivery:
- ISCAN Harley Davidson (diagnostic device)
- Main cable (M001)
- Harley Davidson 4+6 pin cable (M034)
- OBD cable (N41)
- Charger
Technical basics of modern motorcycle diagnostics
Communication with electronic control units
Modern Harley-Davidson motorcycles feature multiple electronic control units (ECUs) that monitor and control various vehicle functions. These include the engine control unit (ECU), the ABS control unit, the instrument cluster, and various sensor and control components within the drive system. The ISCAN Harley-Davidson diagnostic tool enables direct communication with these ECUs via their respective diagnostic interfaces.
This communication allows error codes to be read, live data to be analyzed, and specific system tests to be performed. This gives workshops a detailed insight into the current condition of the motorcycle. Especially with more complex electronic problems, precise diagnosis using a specialized device like the ISCAN HARLEY-DAVIDSON is essential.
Importance of real-time data analysis
A key advantage of modern diagnostic systems is the display of live data. The ISCAN HARLEY-DAVIDSON can read sensor data in real time and display it in various formats, including text displays, graphical diagrams, and waveform graphs.
This visualization allows technicians to quickly detect irregularities in the system. For example, faulty sensor readings, fluctuating engine speeds, or irregular signals from throttle or temperature sensors can be identified early.
Practical applications in motorcycle workshops
Troubleshooting for engine problems
In daily workshop practice, problems with the engine management system frequently occur. These include, for example, rough idling, loss of power, or starting problems. The ISCAN HARLEY-DAVIDSON allows these faults to be systematically analyzed.
By reading the stored fault codes, mechanics gain an initial indication of possible causes. The data stream can then be analyzed to identify any deviations in air mass values, injection timing, or ignition signals.
Service and maintenance functions
Another important application of the ISCAN HARLEY-DAVIDSON is performing maintenance work. For example, the service indicator can be reset after an oil change or inspection. Settings such as idle speed or CO value can also be adjusted directly via the diagnostic tool.
These functions are particularly relevant for independent workshops that regularly perform maintenance work on HARLEY-DAVIDSON motorcycles.
Software architecture and system platform
Android-based diagnostic software
The diagnostic device is based on the Android 5.1.1 operating system. This platform provides a stable foundation for the diagnostic software while also enabling intuitive user navigation. The menu structure is designed so that workshop employees can quickly access the required functions.
Thanks to the Wi-Fi connection, software updates can be downloaded directly from the internet. This ensures that the ISCAN HARLEY-DAVIDSON is always up-to-date and can also support newer motorcycle models.
Hardware performance and system stability
The integrated RK3128 quad-core processor ensures stable and fast processing of diagnostic data. Even large data streams can be analyzed without delay. Combined with the capacitive touchscreen, this enables convenient operation in everyday workshop use.
The robust design of the device also ensures that it can be used reliably even under demanding conditions.
Diagnostic functions in detail
Read and clear error codes
One of the basic functions of the ISCAN HARLEY-DAVIDSON is reading fault codes from the motorcycle's various control units. As soon as a fault is detected in the system, the control unit stores a corresponding code.
The diagnostic tool can read and interpret these codes. After the repair, the codes can then be deleted to reset the system.
Actuator and function tests
In addition to diagnostic functions, the ISCAN HARLEY-DAVIDSON also offers various active tests. Individual components can be specifically targeted to check their function.
- Testing the fuel injectors
- Throttle valve control check
- Activation of fans or pumps
- Testing of ABS components
These tests help workshops to identify defective components more quickly.
Key programming for HARLEY-DAVIDSON motorcycles
Electronic immobilizers
Many modern HARLEY-DAVIDSON models are equipped with an electronic immobilizer. This prevents the motorcycle from being started without an authorized key or transponder.
The ISCAN HARLEY-DAVIDSON allows you to program new keys or reprogram existing ones. This function is especially helpful if a key has been lost or if additional keys are needed.
Security-relevant programming processes
Key programming is performed via a secure connection to the motorcycle's control unit. During the programming process, the transponder data is stored in the system and synchronized with the immobilizer.
The guided menu structure of the ISCAN HARLEY-DAVIDSON significantly simplifies this process and allows it to be carried out even by technicians without specific programming experience.
Car model recommendation for diagnostic missions
Suitable HARLEY-DAVIDSON models
The ISCAN HARLEY-DAVIDSON diagnostic tool is suitable for numerous models of the well-known American motorcycle brand. It is particularly commonly used with the following series:
- HARLEY-DAVIDSON Sportster series
- HARLEY-DAVIDSON Softail Series
- HARLEY-DAVIDSON Touring models
- HARLEY-DAVIDSON Dyna models
Recommended model series: HARLEY-DAVIDSON Softail
The ISCAN HARLEY-DAVIDSON is particularly recommended for use with Softail series motorcycles. These models feature extensive electronic controls for the engine, chassis, and safety systems.
Thanks to its numerous electronic components, workshops particularly benefit from the extended diagnostic functions of the ISCAN HARLEY-DAVIDSON. Faults in the engine control unit, ABS system, or instrument cluster can be quickly identified and rectified.
Technical support and remote service
Remote support through OBDSTAR
A particular advantage of the ISCAN HARLEY-DAVIDSON is its integrated remote support function. Technicians can receive assistance from technical support via the internet connection for complex diagnostic problems.
This can be particularly helpful in the case of rare error patterns or special programming processes.
Software updates and system enhancements
Regular updates of the diagnostic software are crucial for the long-term use of the device. Updates can be installed directly via the integrated Wi-Fi function.
This will allow for support of new vehicle models and improvement of existing diagnostic functions.
Professional diagnostic solution for modern HARLEY-DAVIDSON vehicles
The ISCAN HARLEY-DAVIDSON diagnostic tool offers a comprehensive solution for workshops and motorcycle technicians who regularly work with HARLEY-DAVIDSON vehicles. The combination of powerful hardware, intuitive software, and extensive diagnostic functions allows for quick and targeted troubleshooting.
The key programming, live data analysis, and ECU programming functions, in particular, make the device a valuable tool in everyday workshop use. For businesses that regularly perform maintenance and repairs on modern HARLEY-DAVIDSON motorcycles, the ISCAN HARLEY-DAVIDSON represents an efficient and practical diagnostic solution.
