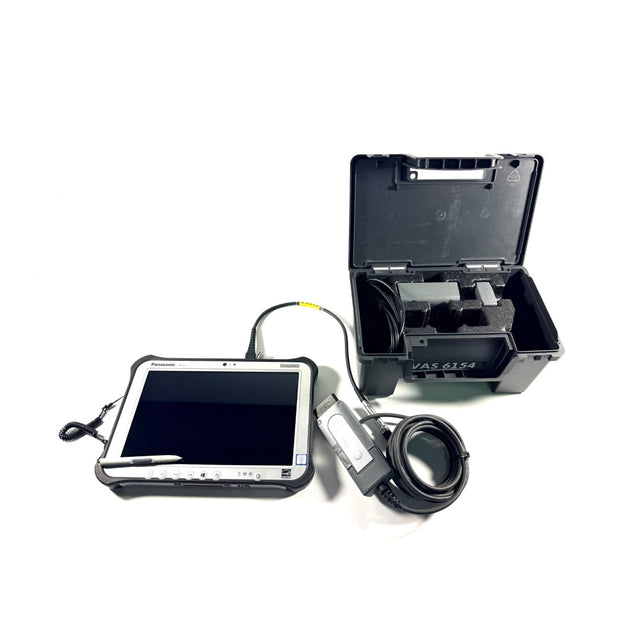

ODIS 25 Diagnostic Device Panasonic Toughpad FZ-G1 with VAS 6154 for VAG Professionals

ODIS 25 Diagnostic Device with Panasonic Toughpad FZ-G1 & VAS 6154 for Professional VAG Diagnostics

✔ 24 months technical support
✔ 12 months warranty
✔ Fully set up & ready to use
✔ Designed for workshop and professional use

This ODIS 25 diagnostic device combines the robust Panasonic Toughpad FZ-G1 with the original VAS 6154 diagnostic interface to create a powerful complete system for professional vehicle diagnostics in the VAG group. The system has been overhauled, checked, and fully tested and is ready for immediate use.

With pre-installed ODIS Service 25 and ODIS Engineering 19, the diagnostic system is ideal for workshops, diagnostic technicians, and mobile service providers. Fault diagnostics, codings, and programming can be carried out efficiently and reliably.

Professional Diagnostics for VAG Group Vehicles

The system supports a wide range of vehicles from the Volkswagen Group. The VAS 6154 communicates with the control units via modern vehicle protocols such as CAN, CAN-FD, K-Line, and UDS.

Vehicle Coverage:

• Cars up to model year 2025
• Trucks up to model year 2022
• Buses up to model year 2022

Important note: Functions are always brand-dependent, model-dependent, and control unit-dependent.

Panasonic Toughpad FZ-G1 as a Robust Diagnostic Computer

The Panasonic Toughpad FZ-G1 was specially developed for demanding work environments. The robust housing reliably protects against dust, splashes, and shocks and is ideal for daily workshop use.

• Intel Core i5-6300U processor
• 512 GB SSD storage
• Robust industrial tablet
• IP65 protection class
• USB and WLAN connection to the VAS 6154

The fast SSD ensures short loading times and smooth use of ODIS Service and ODIS Engineering.

ODIS Service 25 for Diagnosis and Maintenance

With ODIS Service 25, fault memories can be read out, guided fault finding can be performed, and maintenance functions can be carried out. The structured user interface supports technicians in quick fault analysis and repair.

• Read and clear fault memories
• Display live data
• Perform service functions
• Start actuator diagnostics
• Use guided fault finding

ODIS Engineering 19 for Coding and Programming

ODIS Engineering 19 offers extended functions for experienced users. Control units can be coded, adapted, and programmed. Flash operations and advanced diagnostics are also possible.

A stable connection is crucial, especially for programming. The VAS 6154 supports both USB and WLAN communication for secure data exchange.

Typical Applications

• Troubleshooting on VAG vehicles
• Coding new control units
• Software updates and flash programming
• Service and maintenance work
• Diagnosis of assistance systems
• Mobile on-site vehicle diagnosis

Overhauled and Ready for Use

The Panasonic Toughpad FZ-G1 and the VAS 6154 diagnostic interface have been overhauled, technically checked, and tested. The system is in good technical condition and comes with a 12-month warranty.

Battery note: The battery life is at least approx. 2 hours depending on usage. The battery is a consumable item and not covered by the warranty.

Scope of Delivery

• Panasonic Toughpad FZ-G1
• Original VAS 6154 diagnostic interface
• ODIS Service 25 pre-installed
• ODIS Engineering 19 pre-installed
• Power supply unit and connection accessories
• Fully set up and ready to operate
