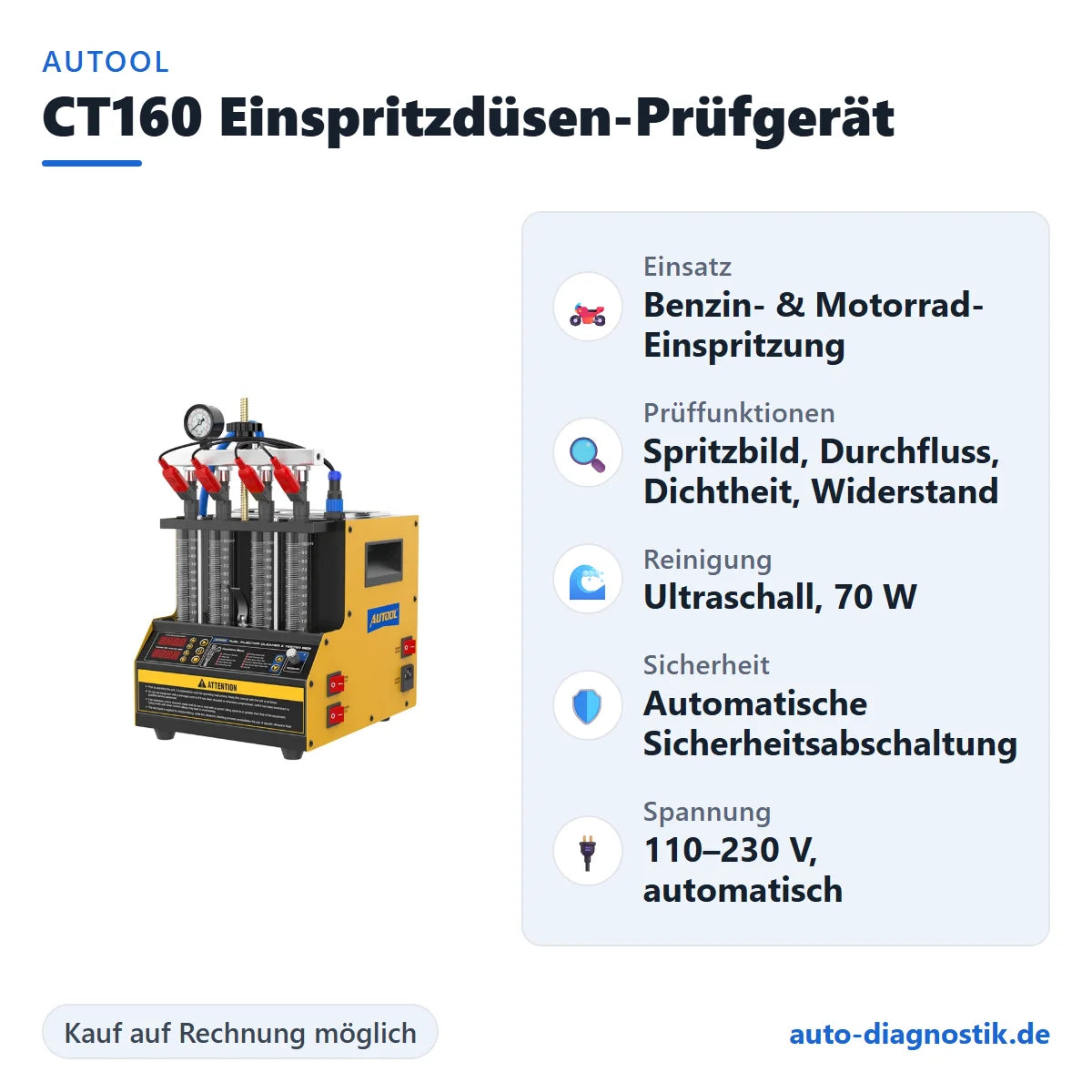

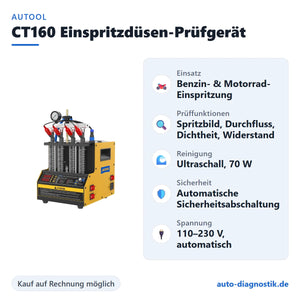

AUTOOL CT160 Fuel Injector Cleaner & Tester for Workshop
AUTOOL CT160 Fuel Injector Cleaner & Tester for Workshop is backordered and will ship as soon as it is back in stock.
Cleans injectors thoroughly and gently
Motorcycle adapter pieces included
Spray pattern, flow, leak-tightness and resistance
Passt sich der Netzspannung automatisch an
AUTOOL CT160 Fuel Injector Cleaner & Tester for Workshop
Description
Description
AUTOOL CT160 Injector Tester and Cleaner – Professional solution for workshop and vehicle diagnostics
The AUTOOL CT160 injector tester and cleaner was developed for workshops, automotive businesses, and ambitious mechanics who want to efficiently test and clean injection systems. With its combination of ultrasonic cleaning and precise testing function, the device ensures thorough and safe maintenance of diesel and gasoline injectors . It is compatible with virtually all common vehicle makes and offers a reliable way to remove contaminants and optimize the spray pattern.
Powerful cleaning and precise testing
Clogged or dirty fuel injectors often lead to loss of power, rough engine running, or increased fuel consumption. The AUTOOL CT160 eliminates these problems with its ultrasonic cleaning function , which removes even the finest residues from the injector channels. At the same time, the integrated testing system allows for a precise assessment of spray pattern, flow rate, and leak tightness. This enables the system to accurately analyze the functionality of each fuel injector – without the need to remove any complex components.
Technical background of modern injection systems
Modern combustion engines operate with highly precise injection systems. These systems ensure that fuel is metered exactly and injected into the combustion chamber at the right moment. Even the smallest deposits can affect the function of the injector and lead to uneven combustion. The AUTOOL CT160 injector tester and cleaner makes it possible to detect such problems early and rectify them effectively.
Construction of an injection nozzle
Fuel injectors consist of several precisely manufactured components that must work together to produce a uniform spray pattern. These include, among other things:
- Solenoid valve or piezoelectric element for controlling the injection
- Fine nozzle openings for atomizing the fuel
- Filter elements for removing particles
- Sealing elements to prevent leaks
If any of these elements are affected by deposits or contamination, the injection behavior can be significantly altered. This is precisely where the AUTOOL CT160 injector test and cleaning device comes into play.
Typical causes of dirty fuel injectors
During engine operation, various types of deposits form, which can accumulate in the injectors over time.
- Carbon deposits from combustion
- Residues from additives in fuel
- Particles from the fuel system
- Resin buildup due to long periods of inactivity
These deposits can be effectively removed through regular maintenance using the AUTOOL CT160 injector test and cleaning device.
Ultrasonic cleaning as an effective maintenance method
Ultrasonic cleaning is one of the most efficient methods for cleaning sensitive components. The AUTOOL CT160 injector tester and cleaner uses this technology to remove even stubborn deposits from the smallest channels.
How ultrasound technology works
Ultrasonic cleaning involves introducing high-frequency sound waves into a liquid. This creates microscopic bubbles that release energy when they burst. This energy removes contaminants from the surface of the injector nozzle.
The great advantage of this method is that even hard-to-reach areas can be cleaned without causing mechanical damage.
Combination of cleaning and diagnostics
The AUTOOL CT160 injector test and cleaning device combines cleaning directly with technical analysis. Several parameters can be checked during the test process:
- Spray pattern and atomization quality
- Fuel flow per cylinder
- Injector nozzle tightness
- Electrical resistance of the coil
This combination enables a comprehensive diagnosis of the entire injection system.
Workshop practice and typical diagnostic cases
In everyday workshop practice, problems frequently arise that are directly related to dirty fuel injectors. The AUTOOL CT160 fuel injector tester and cleaner helps to quickly identify such faults.
Rough engine idle
An unstable idle can occur if individual fuel injectors inject different amounts of fuel. The AUTOOL CT160 fuel injector tester and cleaner allows you to measure and compare the flow rate of each injector.
Increased fuel consumption
If fuel injectors no longer atomize the fuel correctly, it burns less efficiently. This leads to higher fuel consumption and increased emissions.
Power loss during acceleration
A loss of power can also be caused by dirty fuel injectors. Thorough cleaning with the AUTOOL CT160 fuel injector tester and cleaner can restore the original engine performance in many cases.
Versatile use for cars and motorcycles
The device is suitable for a wide range of applications. It supports the testing and cleaning of fuel injectors in cars, vans, and motorcycles . Brands such as Audi, BMW, Mercedes-Benz, VW, Honda, Suzuki, Yamaha, Toyota, and many more are supported. This makes the AUTOOL CT160 a universal solution for automotive workshops that service various engine types – from small cars to motorcycles.
Supported injection systems
The AUTOOL CT160 injector test and cleaning device can be used with various injection technologies:
- Multi-point injection (MPI)
- Direct injection of modern gasoline engines
- Motorcycle fuel injection systems
- various electronic injection systems of modern vehicles
This versatility makes the device suitable for both small workshops and specialized diagnostic facilities.
User-friendly and safe to use
The AUTOOL CT160 is easy and practical to use. After filling it with cleaning fluid and inserting the injectors, the cleaning process can be started immediately. The integrated electronics automatically regulate voltage and pressure to ensure consistent cleaning. In the event of a short circuit or pressure drop, the safety shutdown system ensures an immediate stop. Thanks to its robust construction and high-quality materials, the device is durable and designed for daily workshop use.
User-friendly controls
The AUTOOL CT160 injector test and cleaning device is controlled via a user-friendly interface. Workshop employees can select various test programs and monitor the cleaning process.
Safety functions in workshop operations
Safety is particularly important when working with cleaning fluids and electrical systems. The device has several safety mechanisms:
- Automatic shutdown in case of short circuit
- Pressure monitoring in the system
- Sturdy construction for continuous workshop use
Technical features of the AUTOOL CT160
| Characteristic | Description |
|---|---|
| voltage range | 110 – 230 volts (automatic adjustment) |
| Ultrasound power | 70 watts for effective deep cleaning |
| Cleaning fluid | 3M Automotive Fuel Injector Cleaner or similar product |
| Test fluid | Industrial alcohol or special testing fluid |
| function | Testing of flow rate, leak tightness, spray pattern and resistance |
| Supported Systems | Car and motorcycle fuel injection systems |
| Dimensions / Weight | Approximately 10 kg total weight, compact design |
Advantages for workshop and user
- Thoroughly cleans injectors and restores the original spray pattern.
- Reduces fuel consumption and improves engine performance
- Ideal for professional vehicle diagnostics and maintenance
- Easy handling with clear user guidance
- Suitable for almost all common vehicle brands
- Includes ultrasonic cleaning function and testing unit in one device.
Scope of delivery
- AUTOOL CT160 Injector Testing and Cleaning Device
- funnel and cleaning stand
- Test plate and support rod with lock nut
- Adapter cables, connecting leads and test tubes
- 4 connectors for motorcycle fuel injectors
- Operating instructions in German
Professional maintenance of modern injection systems
Regular maintenance of fuel injectors significantly contributes to the performance of modern engines. With the AUTOOL CT160 fuel injector tester and cleaner, workshops can precisely analyze and efficiently clean injection systems.
The combination of ultrasonic cleaning, flow measurement, and spray pattern analysis enables comprehensive diagnostics. The AUTOOL CT160 injector test and cleaning device thus represents a reliable solution for workshops that want to improve the engine performance, fuel efficiency, and emissions of their customers' vehicles in the long term.
Shipping and payment terms
Shipping and payment terms
FREE SHIPPING WITHIN THE EU ON ORDERS OVER €100!!
Goods are regularly delivered by shipping to the delivery address provided by the customer. The delivery address provided by the customer during the ordering process is decisive for the transaction. Deviating from this, if PayPal is selected as the payment method, the delivery address stored by the customer with PayPal at the time of payment is decisive.
If delivery to the customer was not possible and the shipping company returns the shipped goods to the seller, the customer bears the costs for the unsuccessful shipment. This does not apply if the customer exercises their right of withdrawal by refusing acceptance, if they are not responsible for the circumstance that led to the impossibility of delivery, or if they were temporarily prevented from accepting, unless the seller announced the service to them a reasonable time in advance.
You can choose to pay by bank transfer (prepayment), PayPal (direct debit and credit card via PayPal), Klarna (purchase on account or installment payment), Shop Pay, Google Pay or cash on delivery. If cash on delivery is selected as the payment method, an additional fee of €9.99 will be charged.
Free shipping within Germany for orders over €50.
Shipping costs within the EU are €14.99. For orders over €100, shipping within the entire EU is free.
The delivery time within Germany is usually 1–3 business days.
Worldwide shipping – to countries outside the EU – is also available. The applicable shipping costs are calculated and displayed during checkout depending on the destination country. For deliveries to countries outside the EU, additional customs duties, import taxes or other charges may apply, which are to be borne by the customer.
Questions about this product? Send us a message.
Frequently asked questions
Which tests can the CT160 perform?
Which tests can the CT160 perform?
Four: spray pattern, flow rate, tightness and resistance. This lets you assess whether an injector atomises evenly, delivers the right amount, seals tightly and is electrically sound.
Is the device also suitable for motorcycles?
Is the device also suitable for motorcycles?
Yes. In addition to petrol injection systems in cars, motorcycle injection systems are covered; the matching adapters are included.
Do I have to set the mains voltage?
Do I have to set the mains voltage?
No. The device automatically adapts to mains voltages between 110 and 230 volts.
What is the difference between cleaning and testing?
What is the difference between cleaning and testing?
The ultrasonic cleaning removes deposits inside the injector. The subsequent test shows whether the cleaning was enough or the injector is actually faulty. Having both in one device saves the detour via an external test bench.
What is included in the scope of delivery?
What is included in the scope of delivery?
The tester, the ultrasonic cleaning unit, adapters and connection lines, test hoses with holders, motorcycle adapters and a German user manual.
