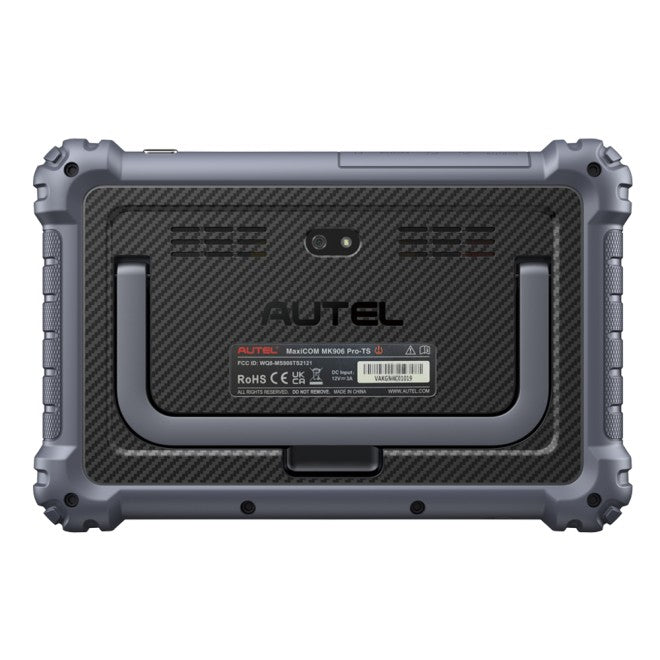

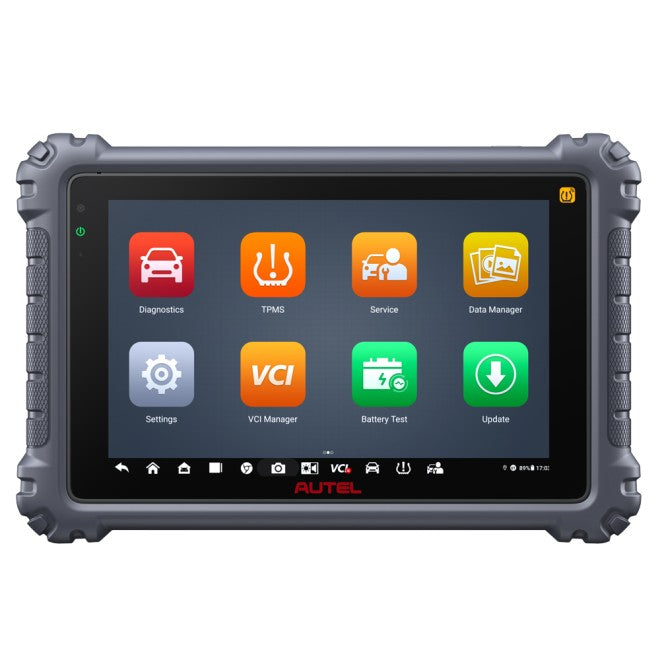

Autel MaxiCom MK906 Pro2-TS OBD2 Diagnostic Tool with TPMS – 1 Year Updates

The Autel MaxiCom MK906 Pro2-TS is a professional OBD2 diagnostic tool with an integrated TPMS module – designed for independent workshops, tyre services and automotive professionals. As the successor to the proven MaxiCom MK906TS (identical in construction to the MaxiSys MS906 Pro-TS), this professional car diagnostic tablet combines complete ECU diagnostics, coding and adaptations and full tyre pressure sensor programming in one device – for over 100 vehicle manufacturers worldwide.

• ✔ TPMS integrated – activate sensors, program MX sensors (315 & 433 MHz)
• ✔ Diagnostics of all ECUs + coding – fault codes, adaptations, live data
• ✔ Wireless diagnostics – MaxiVCI V200 Bluetooth interface included
• ✔ 1 year of free updates included – official software updates directly from Autel
• ✔ 100 % genuine Autel – from an authorised dealer, no grey imports
• ✔ Buy on invoice available (Klarna or PayPal) – delivery in 1–3 business days

The high-performance system runs on a fast Qualcomm 660 octa-core processor (2.2 GHz A73 + 1.8 GHz A53), 4 GB RAM and 128 GB SSD storage. Thanks to capacitive technology, the 8-inch Full HD display (1920 × 1200 pixels) even responds to gloves or dirty fingers – ideal for everyday workshop use. The 11,600 mAh battery lasts up to 5 hours of continuous operation; the system can be extended with accessories such as Autel video borescopes or battery testers.

Integrated TPMS module

• Activation of all common TPMS sensor types
• Compatible with 315 MHz and 433 MHz sensors
• Reading and writing the sensor ID from/to the vehicle ECU
• Diagnostics of the TPMS ECU (read & clear faults, live data)
• Programming of Autel MX sensors
• Display of sensor ID, tyre pressure, temperature, battery status and OE part number
• Acoustic and visual confirmation of sensor function
• Function check of remote keys/remote controls

Wireless vehicle diagnostics with MaxiVCI V200

With the included MaxiVCI V200 Bluetooth diagnostic interface, vehicle diagnostics are stable and convenient: the compact interface plugs into the OBD2 port and connects wirelessly to the tablet – so you can move freely around the vehicle during diagnostics.

Diagnostic functions of the Autel MaxiCom MK906 Pro2-TS

• Diagnostics of all ECUs in the vehicle
• Read and clear fault codes
• Live data analysis and graphing
• Actuator tests and system tests
• Coding and adaptations
• Initialisations and learning procedures
• OBD1 compatible (manufacturer-specific adapters may be required)

Service and maintenance functions

• Service reset (service interval indicator)
• EPB reset (electric parking brake)
• DPF regeneration (diesel particulate filter)
• SAS calibration (steering angle sensor)
• BMS battery registration
• Throttle adaptation
• IMMO functions (immobiliser / keys)
• Injector coding
• Diagnostic-assisted brake bleeding
• Headlight adjustment
• System language adaptation
• Tyre size adaptation

Intelligent diagnostic functions

• AutoScan – automatic scan of all ECUs
• QuickErase – clearing of all fault memories
• AutoVIN – automatic vehicle identification
• Modern protocols: DoIP and CAN FD
• Remote support and data logging
• Workshop manager for managing diagnostic data

Multilingual operation

The menus are multilingual (including German, English, French, Italian, Spanish, Dutch, Polish). By default, the device is delivered with German + English activated – English plus one additional language can be activated per device. Some parts of the software may appear in English.

1 year of free software updates included

The MK906 Pro2-TS includes an update licence for one year free of charge – the updates come officially from Autel and continuously add new vehicle models and functions. Even after the update period expires, the device continues to work without restriction with the installed software version.

Technical data Autel MaxiCom MK906 Pro2-TS

• Operating system: Android 10
• Processor: Qualcomm 660 octa-core (2.2 GHz A73 + 1.8 GHz A53)
• Memory: 4 GB RAM
• Storage: 128 GB SSD

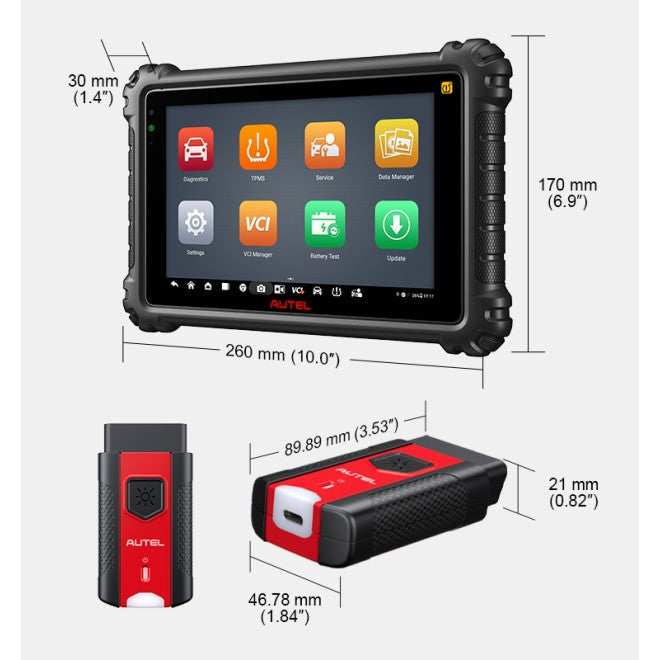

• Display: 8-inch LED touchscreen, 1920 × 1200 pixels (can be operated with gloves)
• Connectivity: Wi-Fi, Bluetooth, HDMI, USB
• Cameras: 16 MP autofocus (front and rear camera)
• Diagnostic interface: MaxiVCI V200 (Bluetooth)
• Battery: 11,600 mAh lithium polymer (up to 5 hrs continuous operation)
• Protocols: DoIP, CAN FD, ISO9141-2, ISO14230-2, ISO15765-4, SAE J1850 and many more
• Operating temperature: −10 °C to +55 °C

Scope of delivery

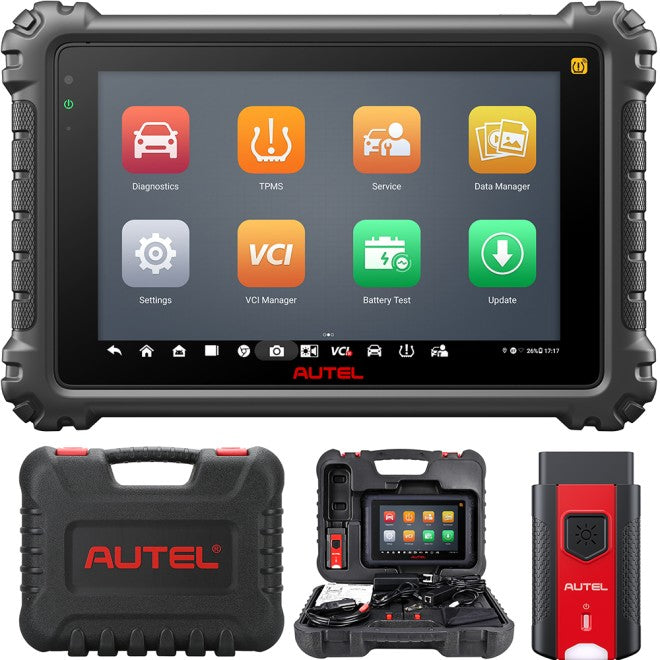

• Autel MaxiCom MK906 Pro2-TS diagnostic tablet
• MaxiVCI V200 Bluetooth diagnostic interface
• 230 V power supply
• Cigarette lighter charging cable incl. spare fuses
• USB-C cable
• USB-to-LAN adapter
• Display cleaning cloth
• Quick start guide
• Carrying case
• 1-year free update licence

Supported vehicles

The Autel MaxiCom MK906 Pro2-TS diagnostic tool supports over 100 vehicle manufacturers worldwide, including Alfa Romeo, Audi, BMW, Chevrolet, Chrysler, Citroën, Dacia, Fiat, Ford, Honda, Hyundai, Jaguar, Jeep, Kia, Land Rover, Lexus, Mazda, Mercedes-Benz, Mini, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Seat, Škoda, Smart, Subaru, Suzuki, Tesla, Toyota, Volkswagen and Volvo, as well as many other European, Asian and American brands.

Important note on vehicle coverage: Which systems, functions and vehicles are supported in each individual case always depends on the manufacturer, model, year of manufacture and ECU. Thanks to regular Autel updates, coverage grows continuously.
