LED-BDM Frame for KTAG KESS FGTECH ECU Programming with LED Illumination

LED BDM frame for FGTECH BDM100 KESS KTAG K-TAG | ECU Programmer Tool

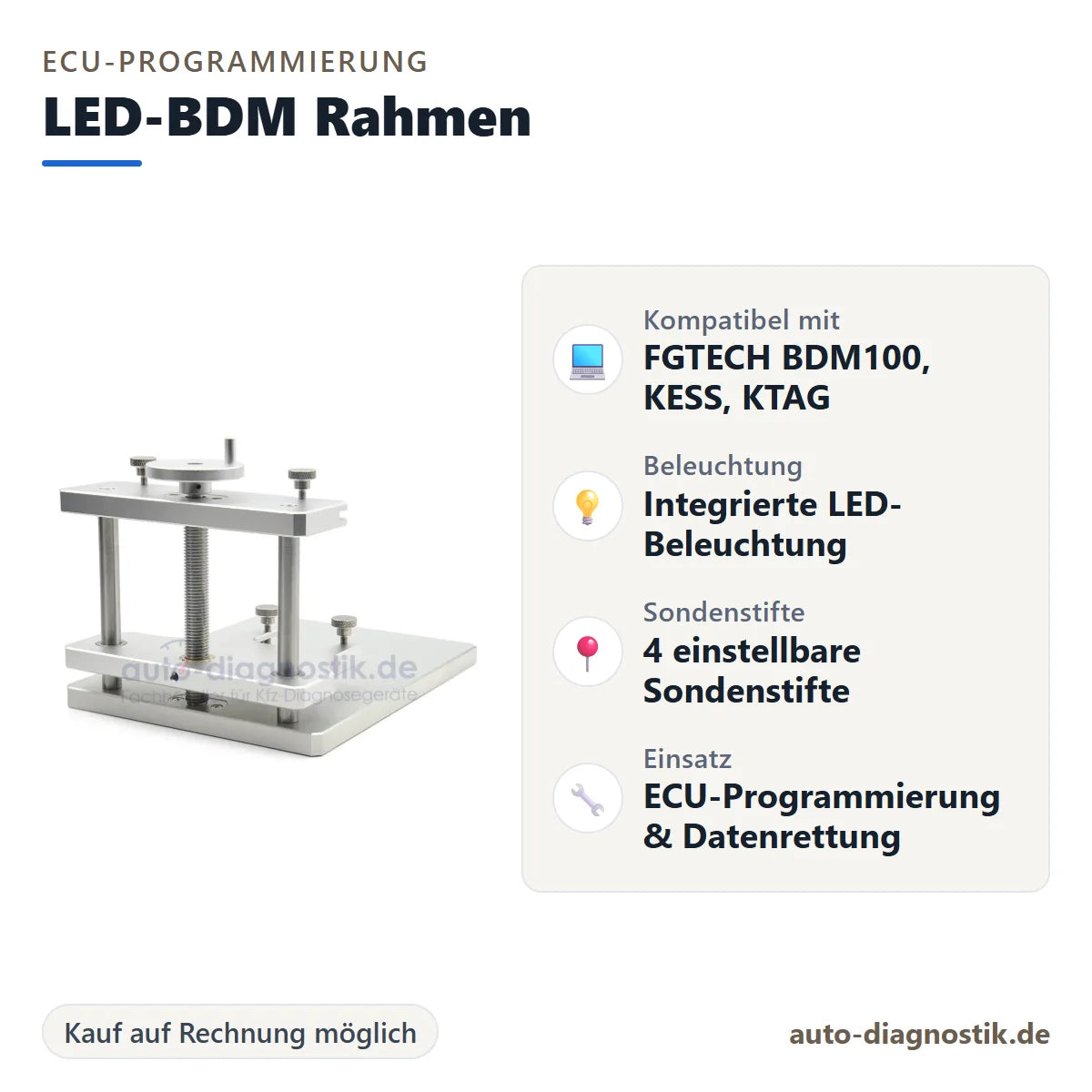

This LED BDM frame with mesh and 4 adjustable probe pins is the ideal accessory for ECU programmers such as the FGTECH BDM100, KESS, and KTAG. Equipped with a 12V LED for improved visibility and ease of use, it is perfect for ECU updates , ECM modifications , and programming .

When working professionally on engine control units (ECUs), precise and stable contact of the BDM pads on the circuit board is crucial. This is precisely where a high-quality LED BDM frame comes into play. It enables secure positioning of the ECU board and ensures that the probe pins rest exactly on the designated contact points. This allows data to be read or written reliably without the need for soldering.

Especially in the field of ECU programming and chip tuning, the use of an LED BDM frame has become standard practice. The integrated lighting significantly improves visibility of the sensitive contact points, reducing the risk of faulty connections and making the work more efficient.

Product features

• Compatibility: Suitable for FGTECH BDM100, KESS, KTAG, K-TAG ECU Programmer Tools
• Material: Acrylic sheet and mesh for stability and easy cleaning
• LED function: Works with 12V; after connecting the probe, please disconnect the 12V battery to activate the LED.
• Probe pins: Adjustable for various applications and optimal adaptation

Sturdy construction for professional workshops

The LED BDM frame consists of a robust acrylic construction, providing a stable base for working on sensitive ECUs. The integrated mesh grid ensures that the ECU can be securely positioned while also providing sufficient space for different ECU shapes.

Especially with modern vehicle control units, a quiet and vibration-free working environment is crucial. Thanks to its stable construction, the LED-BDM frame prevents the circuit board from shifting during reading or writing. This significantly reduces the risk of contact interruptions.

Adjustable probes for different ECU types

A major advantage of this system lies in its four individually adjustable probe pins. These can be flexibly adapted to different ECU layouts. Since manufacturers use various BDM pin configurations, this adaptability is crucial for reliable diagnostics.

With an LED BDM frame , technicians can quickly switch between different ECU types without having to install new brackets. This saves time and simplifies work, especially in workshops that regularly work with different vehicle brands.

Technical background of the BDM interface

What does BDM mean in relation to engine control units?

BDM stands for Background Debug Mode and refers to an interface that is directly integrated into the circuit board of many engine control units (ECUs). This interface allows for direct reading and rewriting of ECU memory areas. This method is primarily used when access via the OBD interface is not possible.

The LED-BDM frame facilitates precisely this access. It ensures that the contact points between the ECU and the programming device remain securely connected. Without such a frame, the contacts would have to be held manually, which can lead to unstable connections and data errors.

Direct access to flash and EEPROM memory

Many modern control units store important vehicle data in flash or EEPROM memory. This includes, for example, maps for injection, ignition, or turbocharger control. With a suitable ECU programmer and an LED BDM frame, this data can be read and modified directly.

This function is crucial, especially during repairs or when replacing defective control units. Workshops can back up existing data and transfer it to a replacement control unit. This preserves the vehicle configuration and avoids costly reprogramming.

Practical applications in vehicle diagnostics

ECU repair and data recovery

In many cases, an LED BDM frame is used when a control unit is no longer accessible via OBD. This can be caused by software errors, interrupted updates, or electrical problems. The firmware can still be addressed directly via the BDM interface.

The frame allows for quick contact, enabling technicians to read data or upload working software. This method is frequently used to restore control units after failed programming attempts.

Support for professional chip tuning

The LED BDM frame also plays an important role in professional chip tuning. Direct access to the ECU's memory allows for the optimization of maps for power, torque, or fuel consumption. The stable contact ensures reliable reading and writing.

The integrated LED lighting facilitates the precise positioning of the probe pins on the small contact pads of the circuit board. This improved visibility is a significant advantage, especially with complex control units that have densely packed components.

Instructions for use

Please note that the LED only works with a 12V power supply. After connecting the probe, disconnect the battery for the LED to illuminate. Circuit boards are not included in this package. The BDM frame is easy to use and offers improved handling and functionality compared to older models.

Preparing the ECU before programming

Before connecting a control unit to the LED-BDM frame , the ECU should be carefully opened. It is important to remove the housing without damaging it and to avoid electrostatic discharge. Many workshops use antistatic mats for this purpose.

The circuit board is then positioned in the frame and the probe pins are precisely aligned with the BDM contact points. A stable connection is crucial to prevent data transmission errors during programming.

Optimal lighting thanks to integrated LEDs

The integrated lighting makes the LED BDM frame particularly practical for workshops with many parallel work processes. Especially with small SMD components or tight circuit board layouts, the LED significantly improves visibility of the contact points.

This reduces errors when attaching the probes and ensures that the programming process can be completed faster and more safely.

Why choose our LED BDM frame?

This BDM frame provides a stable and user-friendly platform for ECU updates and programming. The combination of LED lighting and adjustable probe pins ensures optimal working conditions on vehicle control units. Ideal for professionals seeking a reliable and versatile tool .

More efficient work processes in the workshop

A high-quality LED BDM frame significantly reduces the time required for ECU modification. Thanks to the quick positioning of the board and the stable contact, technicians can perform multiple programming tasks consecutively without having to set up new fixtures each time.

Compatibility with common programming devices

The frame is specifically designed for use with popular tools such as the FGTECH BDM100, KESS, and KTAG. This combination allows for flexible use in both specialized chip tuning shops and general automotive workshops.

Scope of delivery

• BDM frame made of acrylic with mesh
• Cables for probes
• 4 adjustable probe pins
• Adapters for probes

Professional support for ECU programming and diagnostics

A reliable LED BDM frame is an indispensable tool for modern workshops that regularly work with control units. It enables safe access to sensitive ECU components and supports technicians in diagnostics, repair, and software adjustments.

The combination of a robust construction, adjustable probe pins, and integrated lighting makes this frame an efficient solution for professional ECU work. Workshops benefit from increased programming safety and significantly improved working precision.
