Thinkcar CE EVC 201 Insulation Tester for Independent Workshops – HV 1000 V

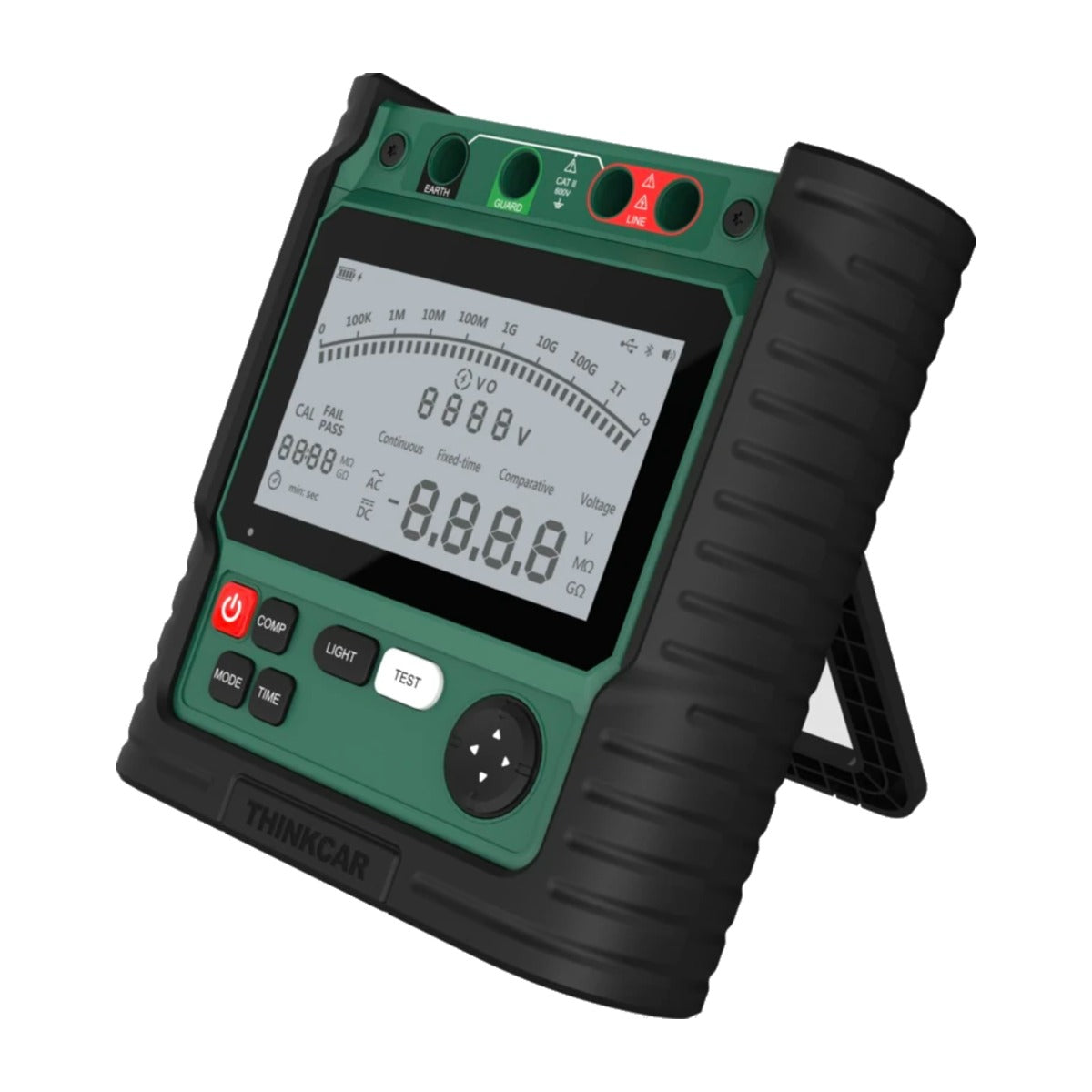

The Thinkcar CE EVC 201 is an insulation resistance tester (megohmmeter) for testing high-voltage components on electric and hybrid vehicles. It measures the insulation resistance between live parts and the housing – for example on drive motors, high-voltage batteries, HV cables, high-voltage switches and transformers. A robust measuring instrument in workshop quality for independent workshops and commercial users.

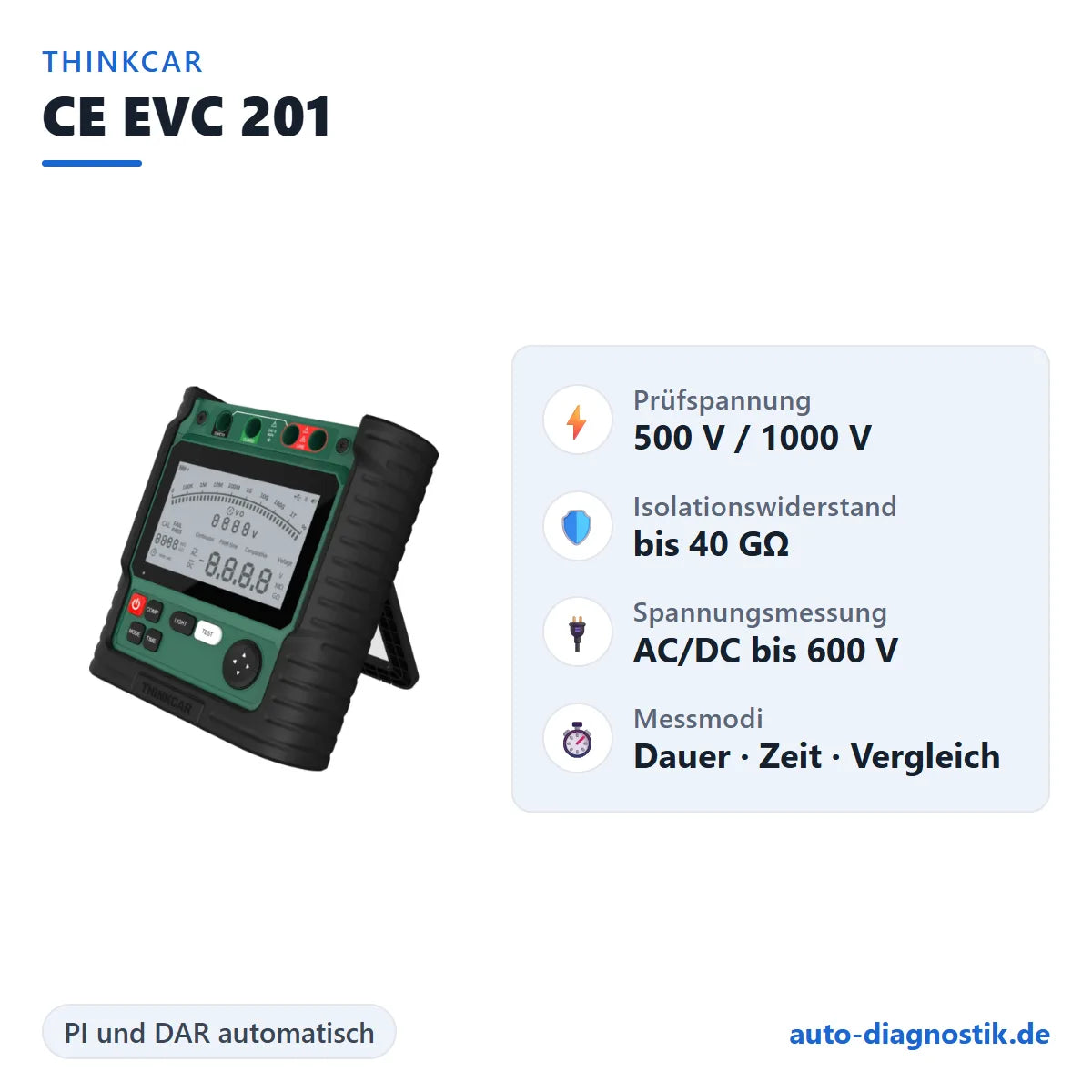

• ✔ Test voltages of 500 V and 1000 V, insulation resistance up to 40 GΩ
• ✔ AC and DC voltage measurement up to 600 V
• ✔ Continuous, timed and comparison test with PASS/FAIL display
• ✔ Automatic calculation of dielectric absorption ratio and polarisation index
• ✔ Standalone instrument with large LCD and integrated battery
• ✔ Purchase on account available (Klarna or PayPal)

Insulation testing on high-voltage components

Insulation testing is one of the most important safety checks when servicing electric vehicles: ageing or damaged insulation is detected early, before it becomes a risk to workshop staff or the vehicle. The EVC 201 uses a powerful processor, is resistant to interference and automatically calculates the dielectric absorption ratio (DAR) and polarisation index (PI).

Measuring modes for every test task

• Continuous test: continuous measurement of insulation resistance (default after switching on)
• Timed test: test duration adjustable from 10 seconds to 15 minutes, ends automatically
• Comparison test: limit selectable from 10 MΩ, result shown as PASS or FAIL
• Voltage measurement: DC and AC voltage up to 600 V via the MODE key

Verification with reference resistor

A standard resistor (200 MΩ) integrated in the device is used to verify and calibrate the instrument – so measuring accuracy can be checked in the workshop at any time.

Safety

According to the manufacturer’s manual, the device is designed to the safety requirements of IEC 61010 for electronic measuring instruments; the measuring inputs are marked CAT II 600 V. Voltages above 600 V must not be measured. Before every insulation test, the circuit under test must be de-energised, discharged and isolated from the power supply.

Technical data

Scope of delivery

• Thinkcar CE EVC 201 insulation tester
• Test lead red (LINE)
• Test lead black (EARTH)
• Test lead green (GUARD)
• Power adapter for charging

High-voltage safety notice

Work on high-voltage components of electric and hybrid vehicles may only be carried out by appropriately qualified specialists in compliance with the manufacturer’s instructions. Please read the device’s user manual before use.
