THINKCAR Thinktool 393 diagnostic tool for workshops – with TPMS module

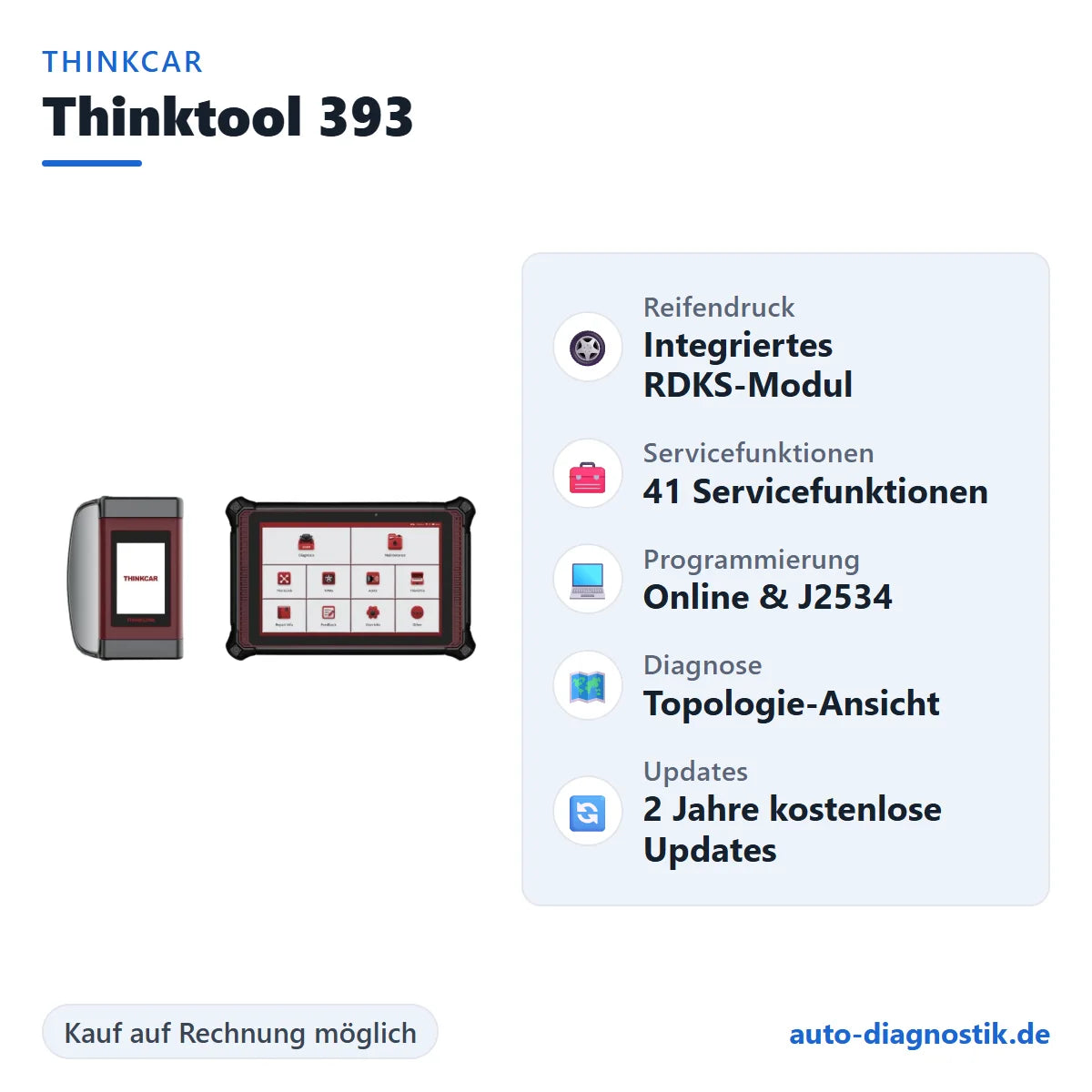

THINKCAR Thinktool 393 – 10-inch professional diagnostics with built-in TPMS module

• ✔ OE-level full-system diagnostics – fault codes, live data, ECU information
• ✔ Bi-directional tests, coding and adaptations
• ✔ 41 service functions – oil, EPB, DPF, battery, steering angle and more
• ✔ Built-in TPMS module – activate, program and relearn sensors
• ✔ Online programming of control units for many brands
• ✔ Topology view of the vehicle network
• ✔ CAN FD, DoIP and J2534 for modern vehicles
• ✔ 2-year update guarantee – the device stays fully usable afterwards
• ✔ Pay by invoice available (Klarna or PayPal)

The THINKCAR Thinktool 393 is a professional workshop-grade car diagnostic tablet for independent workshops and commercial use. On its 10.1-inch touchscreen it reads all installed control units – engine, transmission, ABS, airbag, body and comfort electronics – shows fault codes in plain text, displays live data as graphs and actuates components via bi-directional actuator tests. Coding and adaptations after replacing parts are done directly on the device.

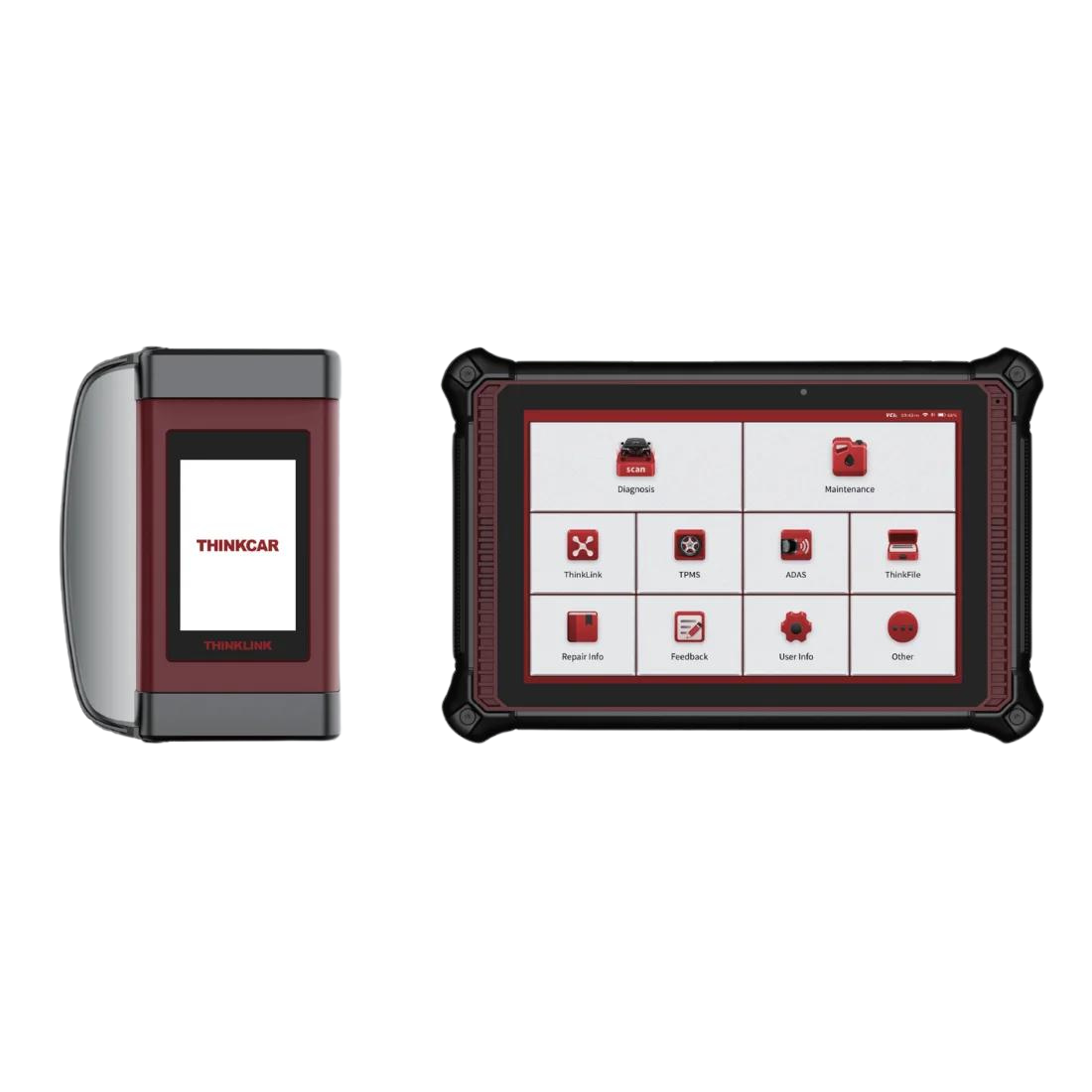

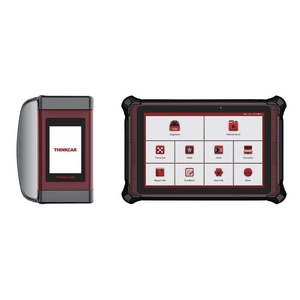

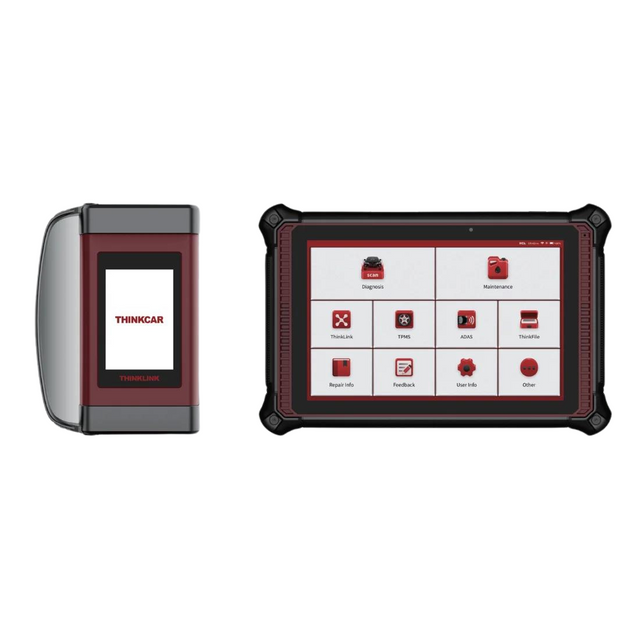

The set includes the THINKLINK diagnostic interface with its own 4-inch display. It supports the fast protocols CAN FD and DoIP as well as J2534 and D-PDU for control unit programming. The tablet runs Android 10 and has 4 GB RAM, 128 GB storage, a 12,600 mAh battery and front and rear cameras.

Vehicle coverage

The Thinktool 393 is designed for 12-volt cars from model year 1996; the manufacturer lists more than 120 car brands from Europe, Asia and America. Online programming is available for more than 16 brands, including BMW, Mercedes-Benz, Volkswagen, Audi, Škoda, Seat, Porsche, Land Rover, Jaguar, Subaru, Nissan and Renault. Software for electric vehicles and 24-volt commercial vehicles is available as a paid extension and is not included.

Important note on vehicle coverage: These figures describe the overall scope the device can cover across all supported brands – they do not mean that every brand, model and function is automatically fully supported. Which vehicles and functions are available always depends on manufacturer, model, model year and control unit. Ask us before you buy – we are happy to check your vehicles.

41 service functions for everyday workshop use

Including oil service reset, brake pad reset and electric parking brake (EPB), ABS bleeding, steering angle sensor, DPF regeneration, battery matching, throttle relearn, injector coding, AdBlue reset, NOx sensor, EGR adaptation, gearbox relearn, immobiliser, TPMS reset, start-stop, adaptive headlights (AFS), seat and window calibration, air suspension and transport mode. Availability depends on the vehicle.

Special functions and extensions

• Built-in TPMS module: read, activate, program and relearn tyre pressure sensors.
• Online programming: reprogram control units with the manufacturers’ original software, e.g. for BMW, Mercedes-Benz, Volkswagen, Audi, Škoda, Seat, Porsche, Land Rover, Jaguar, Subaru, Nissan, Renault (depending on vehicle and control unit).
• Topology view: the complete vehicle network as a graphic – conspicuous control units are visible at a glance.
• Video remote diagnostics: a specialist joins via audio and video link and supports diagnostics, coding and programming from a distance.
• Remote control: the tablet can operate other THINKCAR devices remotely – handy when a colleague at the vehicle needs support.
• Intelligent vehicle identification: the VIN is read automatically from the control unit or scanned with the camera.
• Secure Gateway: unlocks for VAG, FCA, Mercedes, Renault and Dacia are available as an additional licence.
• ADAS calibration of driver assistance systems in combination with the THINKCAR ADAS calibration equipment (sold separately).
• Expandable: battery tester, videoscope, printer, oscilloscope box, TPMS tools and key programmer are available as optional accessories (not included).

2-year update guarantee

The price includes 2 years of free software updates. The updates continuously extend vehicle coverage and add new functions. After the update period the device remains fully functional with the last installed version; an extension is possible.

Technical data

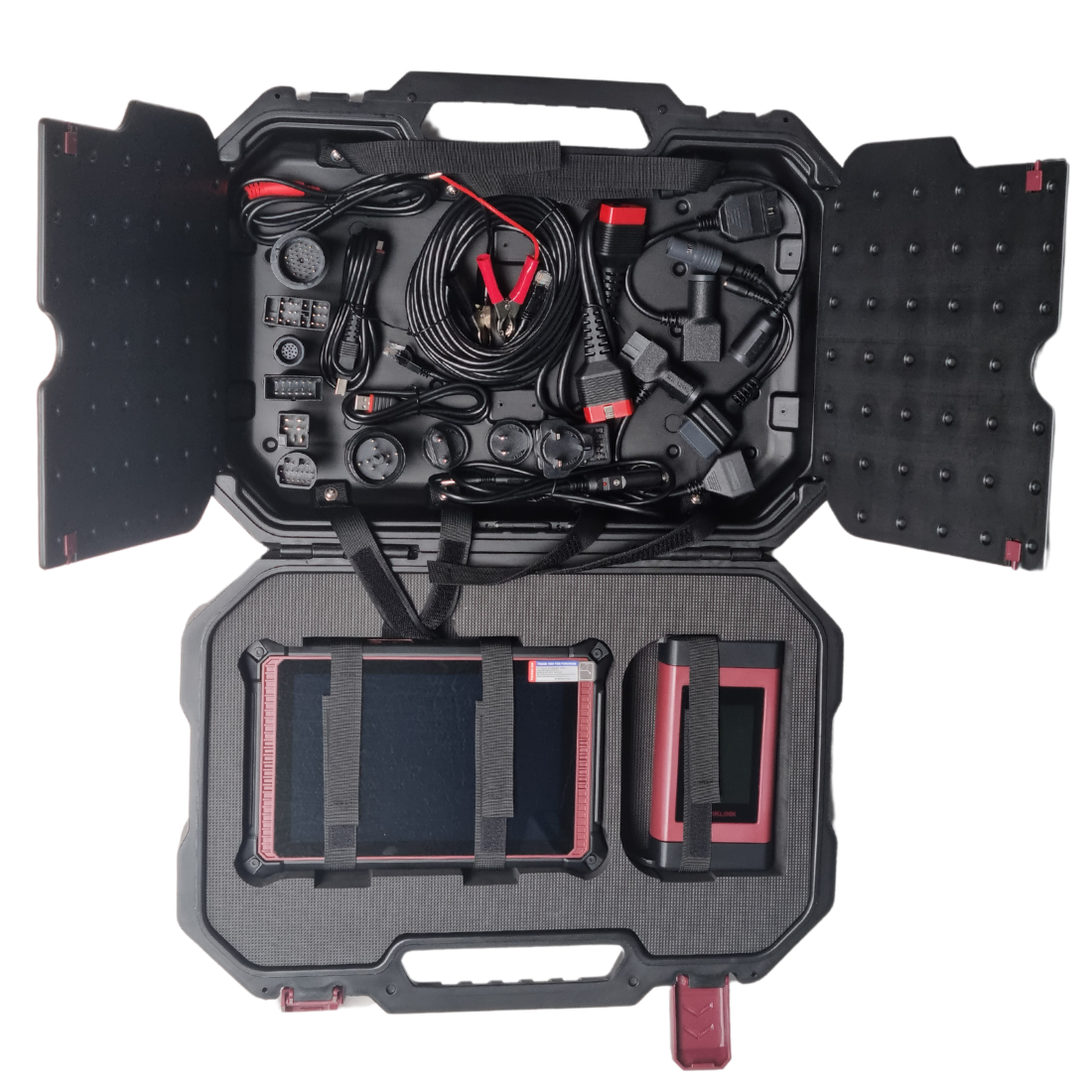

Scope of delivery

• THINKCAR Thinktool 393 diagnostic tablet
• Diagnostic interface THINKLINK
• OBD2 diagnostic cable
• OBD adapter
• OBD1 adapters for older vehicles: BMW-20, BZ-38, TA-22, CR-6, TA-17, HA-3, G/A-12, M/H-12+16, FT-3, NN-14+16
• Battery clamp cable
• Cigarette lighter cable
• Spare fuses
• Charger with EU, UK and US plugs plus charging cable
• Ethernet cable
• Programming cable

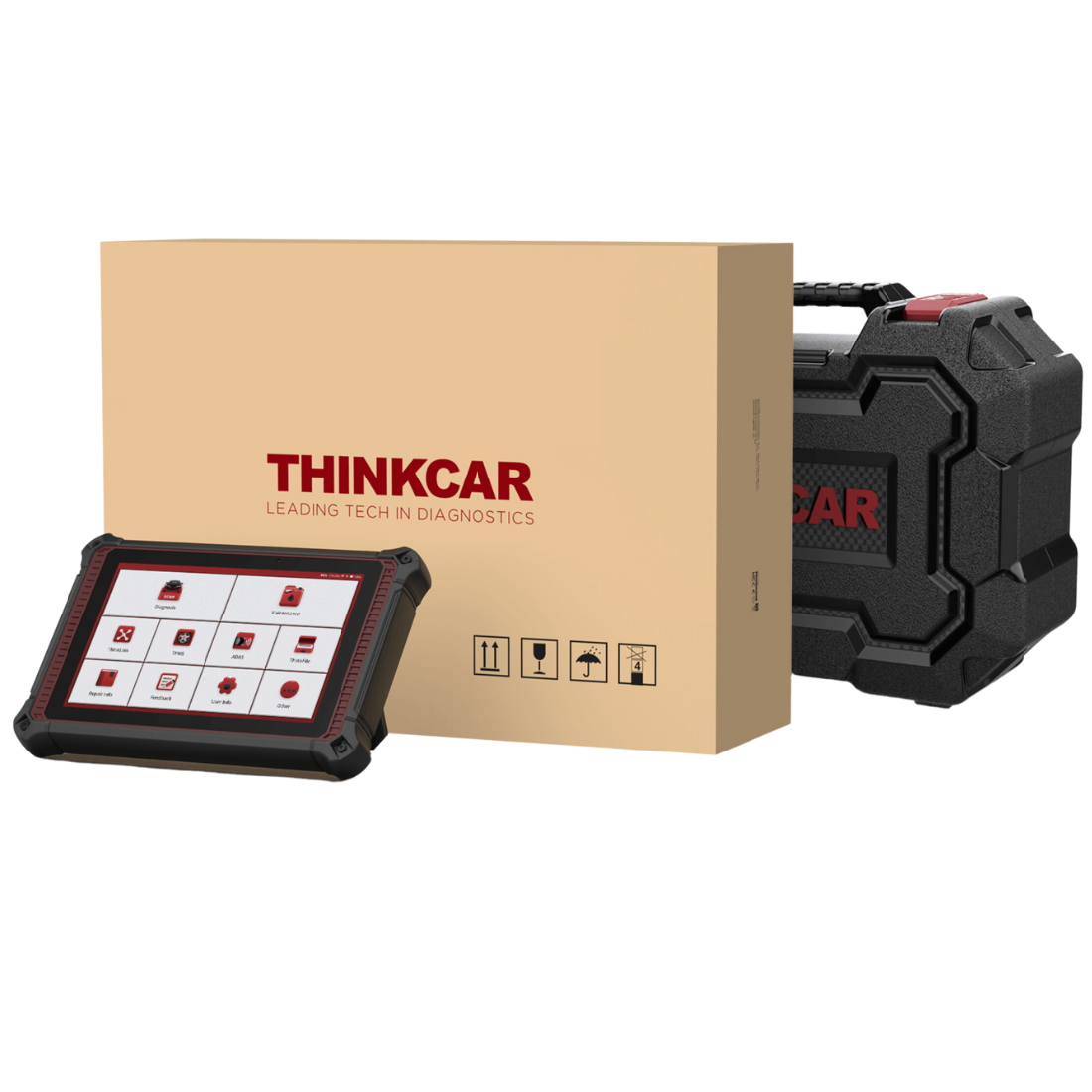

• Carry case
• Quick start guide

Pay by invoice available (Klarna or PayPal). If you have questions about vehicle coverage, give us a call – we advise independent workshops personally.
