Vident iSmart600 Max Car Diagnostic Tool with ECU Coding for Workshops 2025

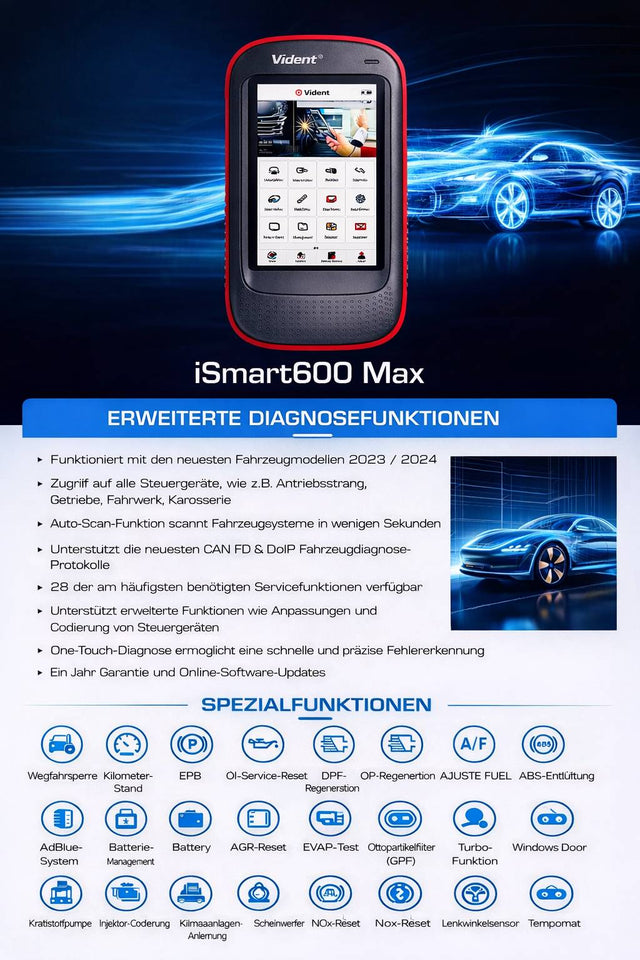

Vident iSmart600 Max – Professional Android diagnostic tool with ECU coding

The Vident iSmart600 Max is a powerful, Android-based automotive diagnostic tool for workshops, ambitious DIY mechanics, and professional diagnostic specialists. Thanks to its intuitive user interface, broad vehicle coverage, and comprehensive diagnostic functions, the device offers near-OEM vehicle diagnostics while remaining easy to use.

Equipped with a high-resolution 5-inch IPS touchscreen, a fast Cortex processor, and the stable Android 7.1.2 operating system , the iSmart600 Max boots up in less than 30 seconds. Features such as bidirectional actuator tests, ECU coding, ECU programming, component calibration, and detailed live data and graphs make this diagnostic tool ideal for both beginners and experienced automotive technicians.

Highlights of the Vident iSmart600 Max

• Comprehensive vehicle diagnostics for over 120 international vehicle brands (some up to model year 2024)
• Bidirectional actuator tests and active component tests
• ECU coding, programming and system adjustments
• Supports modern communication protocols CAN FD and DoIP – no additional adapters required
• Android-based, user-friendly interface with customizable settings

Diagnostic options and control unit communication

Full access to vehicle systems

The Vident iSmart600 Max enables in-depth diagnostics of virtually all electronic control units in a vehicle. Modern vehicles consist of numerous networked control units that communicate with each other via various bus systems. This diagnostic tool can be used to read and analyze, among other things, the engine control unit, transmission control unit, ABS systems, airbag control units, comfort modules, and climate control units.

The Vident iSmart600 Max not only reads simple fault codes, but also provides comprehensive information such as freeze-frame data, ECU identifications, and system parameters. This can be crucial, especially with more complex fault patterns, to quickly and accurately determine the actual cause of a problem.

Bidirectional actuator tests in practice

A major advantage of modern diagnostic tools lies in their ability to actively control components. The Vident iSmart600 Max supports bidirectional actuator tests, allowing individual actuators to be targeted. This enables the direct testing of components such as radiator fans, EGR valves, fuel pumps, and electronic throttle valves.

In practical workshop settings, this translates into significant time savings in troubleshooting. Instead of mechanically removing individual components or performing time-consuming measurements, the technician can use the Vident iSmart600 Max to immediately check whether a component is functioning correctly or whether an electrical problem exists.

ECU coding and adaptation functions

Adaptation of new control units

When replacing control units or electronic components, coding is often mandatory. The Vident iSmart600 Max supports numerous ECU coding and adaptation functions, allowing new control units to be adapted to the vehicle configuration. This ensures that the respective system communicates correctly with the other vehicle modules.

Typical applications include, for example, coding new control units after repairs, activating additional vehicle functions, or adapting certain parameters to customer-specific requirements.

System calibration after repairs

After many maintenance or repair procedures, certain systems need to be recalibrated. These include steering angle sensors, throttle positions, and battery management systems. The Vident iSmart600 Max offers a range of integrated adjustment and calibration functions to restore the correct operation of the vehicle's systems after a repair.

Service functions for maintenance and inspection

Support for important maintenance functions

In addition to classic diagnostics, the Vident iSmart600 Max offers access to numerous service functions required for regular maintenance. These include, for example, resetting service intervals, registering new batteries, and resetting electronic parking brakes.

• Oil service reset
• EPB reset (electronic parking brake)
• BMS battery registration
• SAS steering angle sensor calibration
• DPF regeneration
• ABS venting functions

These integrated functions allow the Vident iSmart600 Max to support many typical workshop tasks without the need for additional special equipment.

Hardware features

• 5-inch high-resolution capacitive IPS touchscreen (800 × 480 pixels)
• Bluetooth connection for fast and stable vehicle communication
• Dual-band Wi-Fi for online updates and internet access
• Integrated 4200 mAh lithium-ion battery for long operating times
• USB Type-C port and SD card slot for accessories and data transfer
• Secure internal flash storage with 8 GB + 64 GB
• TF card slot for memory expansion

Robust hardware for everyday workshop use

The Vident iSmart600 Max was designed for daily use in the workshop. Its robust housing protects the internal hardware from typical stresses such as shocks, vibrations, and temperature fluctuations. At the same time, its compact design allows for easy handling during diagnostics directly on the vehicle.

The wireless Bluetooth connection between the diagnostic tool and the vehicle interface provides additional freedom of movement during work. Technicians can conveniently analyze diagnostic data without having to constantly stand at the vehicle's connection point.

Software functions

• Reading and clearing fault codes, live data, freeze-frame data and ECU information
• Automatic VIN recognition for fast vehicle identification
• System detection: scans only the control units present in the vehicle
• One-touch complete scan of all available control units
• Recording and graphical display of live data (up to four charts simultaneously)
• Support for CAN FD and DoIP without additional adapters
• Direct access to 28 frequently used service and special functions
• Comprehensive data manager for vehicle, customer and diagnostic data
• Remote access and interactive data logging
• Technical support for error analysis
• 3 years of free software updates

Live data analysis and charting functions

Analyzing live data is one of the most important tools in modern vehicle diagnostics. The Vident iSmart600 Max enables the parallel graphical display of multiple data streams. This makes it easier to identify correlations between different sensor values.

For example, mass airflow sensor readings, throttle position, and lambda values can be displayed simultaneously. This quickly reveals whether a sensor is delivering implausible values or whether there is a mechanical problem in the intake system.

Technical data

Included in the iSmart600 Max package

• Vident iSmart600 Max diagnostic device
• Mini VCI interface
• AC/DC power supply (12V)
• User manual
• Sturdy transport case

Efficient vehicle diagnostics for modern workshops

Diagnostic solution for professional requirements

The Vident iSmart600 Max combines modern hardware with powerful diagnostic software, enabling comprehensive analysis of modern vehicle technology. A universal diagnostic system is indispensable, especially in workshops that service different vehicle brands.

With its combination of comprehensive vehicle coverage, ECU coding, bidirectional testing, and numerous service functions, the Vident iSmart600 Max is suitable for both routine maintenance and complex diagnostic tasks. This makes it a practical and powerful solution for professional vehicle diagnostics.
