Motorcycle diagnostics: finding the right adapter cable
Unlike cars, motorcycles have no standardised diagnostic connector. Each manufacturer uses its own connectors – with 3, 4 or 6 contacts, sometimes even several variants within one brand. If you want to read out a bike with an OBD2 diagnostic tool, a workshop interface or a Bluetooth adapter, you therefore need a suitable motorcycle adapter cable to the 16-pin OBD2 socket.
How to find the right cable in three steps
- Locate the diagnostic connector: It is usually located under the seat, under a side panel or near the fuse box.
- Count the contacts: The pin count is the most reliable feature. Connectors with different pin counts are not mechanically interchangeable.
- Choose the cable: Look up the brand and pin count in the table below.
Example Honda: Depending on the model series, 4-, 5- or 6-pin connectors are fitted – there is a separate cable for each design. So be sure to count before ordering.
Special case Euro 5: the standardised 6-pin connector
Many motorcycles type-approved under the Euro 5 emissions standard use a standardised 6-pin diagnostic connector instead of the 16-pin OBD2 socket. There is a dedicated Euro 5 cable for this connector type. What matters here is solely the design of the connector on the vehicle, not the manufacturer or model. The same applies to the Delphi 6-pin connector, which is found on motorcycles, scooters and ATVs of various brands.
Overview: motorcycle adapter cables by brand
| Brand / connector | Pin count | Suitable adapter cable |
|---|---|---|
| Aprilia | 6 | Aprilia 6-pin to OBD2 |
| Benelli | 6 | Benelli 6-pin to OBD2 |
| BMW Motorrad | 10 | BMW 10-pin to OBD2 |
| Delphi connector | 6 | Delphi 6-pin to OBD2 |
| Ducati | 4 | Ducati 4-pin to OBD2 |
| Euro 5 connector | 6 | Euro5 6-pin to OBD2 |
| Harley-Davidson | 4 | Harley-Davidson 4-pin to OBD2 |
| Harley-Davidson | 6 | Harley-Davidson 6-pin to OBD2 |
| Honda | 4 | Honda 4-pin to OBD2 |
| Honda | 5 | Honda 5-pin to OBD2 |
| Honda | 6 | Honda 6-pin to OBD2 |
| Husqvarna | 6 | Husqvarna 6-pin to OBD2 |
| Kawasaki | 6 | Kawasaki 6-pin to OBD2 |
| KTM | 6 | KTM 6-pin to OBD2 |
| Kymco | 3 | Kymco 3-pin to OBD2 |
| Suzuki | 6 | Suzuki 6-pin to OBD2 |
| Yamaha | 3 | Yamaha 3-pin to OBD2 |
| Yamaha | 3+4 (dual connector) | Yamaha 3+4-pin to OBD2 |
Important: An adapter cable is not a diagnostic tool. It only provides the mechanical and electrical connection between the vehicle and the diagnostic tool. Which control units and functions you can reach always depends on the diagnostic tool used, its software and the manufacturer, model and model year of the vehicle.
The most popular motorcycle adapter cables

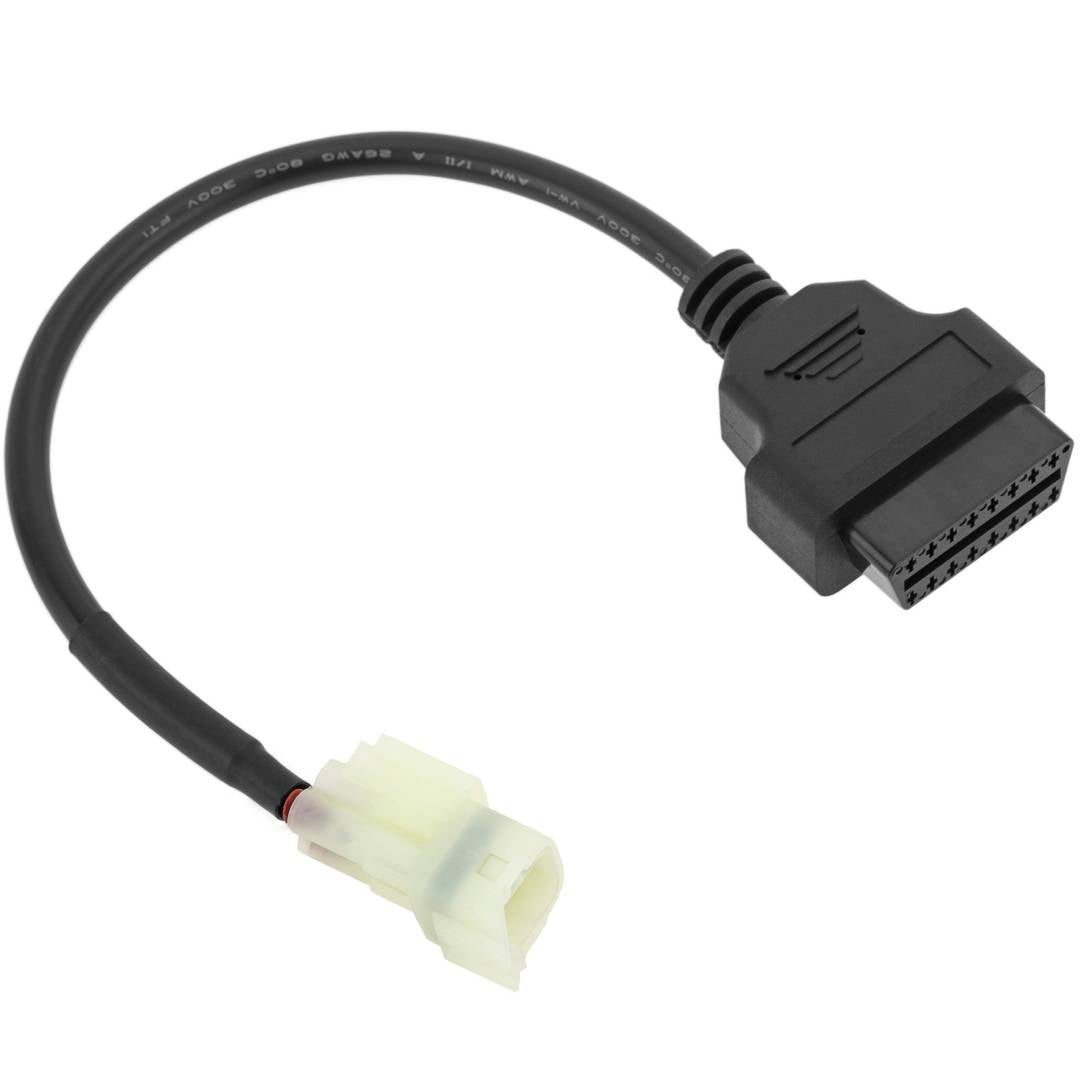

Honda 4-pin
Honda 5-pin
Honda 6-pin
Yamaha 3-pin
Yamaha 3+4-pin dual connector
Covers both Yamaha connector variants with a single cable.
Kawasaki 6-pin
Suzuki 6-pin
KTM 6-pin
Ducati 4-pin
Harley-Davidson 4-pin
BMW Motorrad 10-pin
Euro 5 – 6-pin
And the right diagnostic tool?
The cable creates the connection – whether your device understands the control units of your motorcycle depends on its software. We compare brand-specific and universal motorcycle diagnostic tools in our guide Which motorcycle diagnostic tool is the best?; you will find the devices in the motorcycle diagnostic tools category.
Conclusion
With motorcycles, the pin count of the connector is what matters: count the contacts, look up the brand in the table, done. You will find all cables in the motorcycle adapter cables category. You can buy on invoice via Klarna or PayPal. Not sure? Send us a photo of the connector or give us a call: 0711-3654 4645.
